2buf

Arginine Feed-Back Inhibitable Acetylglutamate Kinase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLGLUTAMATE KINASE

PSEUDOMONAS AERUGINOSA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	N-ACETYL-L-GLUTAMATE × 5 ADENOSINE-5'-DIPHOSPHATE × 5 MAGNESIUM ION × 4 CHLORIDE ION × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	N-ACETYL-L-GLUTAMATE × 5 ADENOSINE-5'-DIPHOSPHATE × 5 MAGNESIUM ION × 4 CHLORIDE ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARGB_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–300； UniProt 1–300 Author chain B； PDBConstruct 1–300； UniProt 1–300 Author chain C； PDBConstruct 1–300； UniProt 1–300 Author chain D； PDBConstruct 1–300； UniProt 1–300 Author chain E； PDBConstruct 1–300； UniProt 1–300 Author chain F； PDBConstruct 1–300； UniProt 1–300 Author chain G； PDBConstruct 1–300； UniProt 1–300 Author chain H； PDBConstruct 1–300； UniProt 1–300 Author chain I； PDBConstruct 1–300； UniProt 1–300 Author chain J； PDBConstruct 1–300； UniProt 1–300 Author chain K； PDBConstruct 1–300； UniProt 1–300 Author chain L； PDBConstruct 1–300； UniProt 1–300

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2buf
Deposition date deposition_date	2005-06-12
Structure title title	Arginine Feed-Back Inhibitable Acetylglutamate Kinase
Keywords keywords	;ACETYGLUTAMATE KINASE, ACETYLGLUTAMATE, ADP, ARGININE BIOSYNTHESIS, FEED-BACK INHIBITION, HEXAMER, TRANSFERASE, ARGININE INHIBITION, ALLOSTERIC MECHANISM, FEEDBACK CONTROL, AMINO ACID KINASE FAMILY ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2buf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2buf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

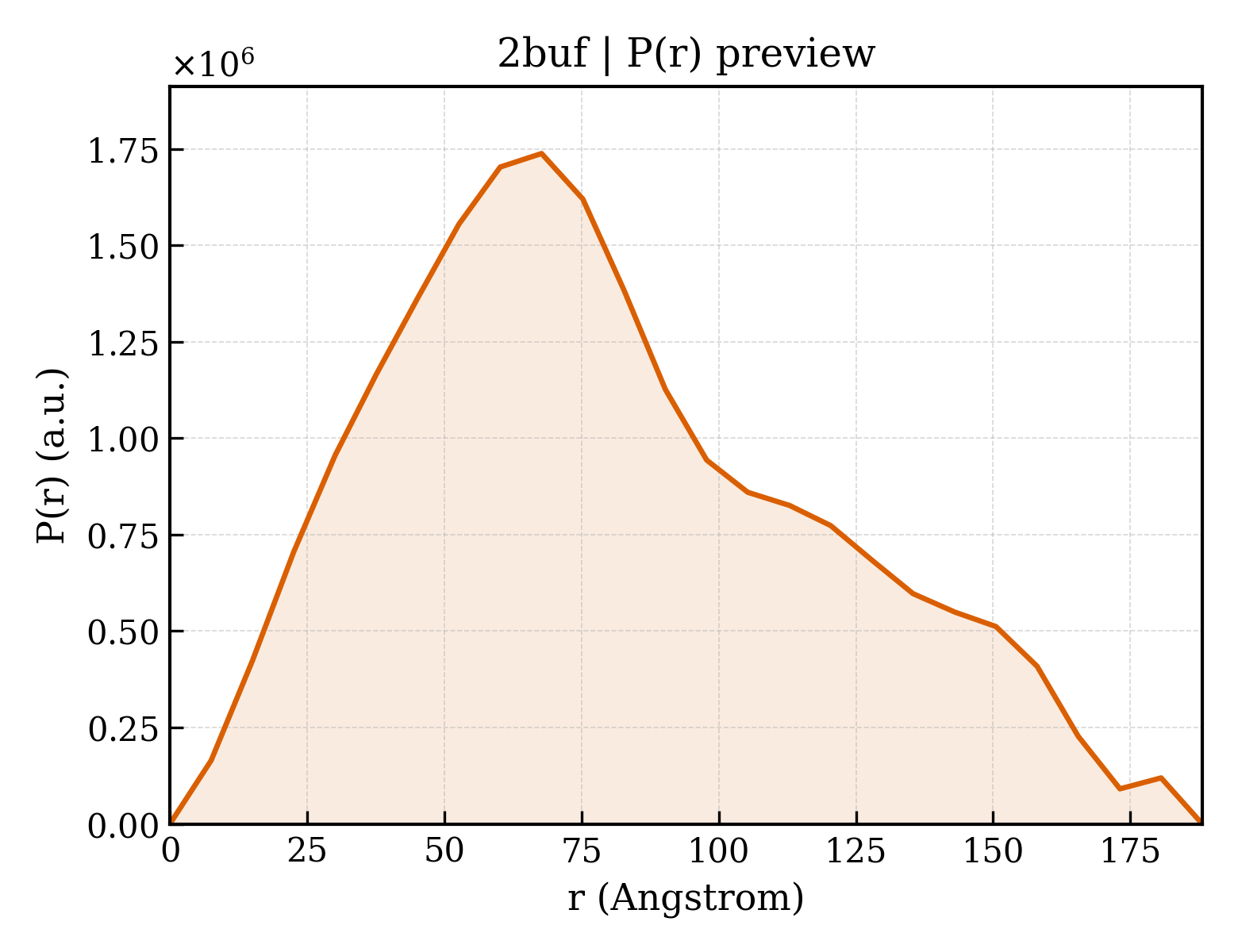

2buf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.81 Å
Rg (electron density)	39.63 Å
Total Rg	40.17 Å
Atom count	13151
Residues	1763
Excluded volume	236380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2buf__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2buf__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ACETYLGLUTAMATE KINASE
Molecular weight formula_weight	31754.8 kDa
EC 编号 ec_number	2.7.2.8
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	25923

TLSRDDAAQVAKVLSEALPYIRRFVGKTLVIKYGGNAMESEELKAGFARDVVLMKAVGINPVVVHGGGPQIGDLLKRLSIESHFIDGMRVTDAATMDVVEMVLGGQVNKDIVNLINRHGGSAIGLTGKDAELIRAKKLTVTRQTPEMTKPEIIDIGHVGEVTGVNVGLLNMLVKGDFIPVIAPIGVGSNGESYNINADLVAGKVAEALKAEKLMLLTNIAGLMDKQGQVLTGLSTEQVNELIADGTIYGGMLPKIRCALEAVQGGVTSAHIIDGRVPNAVLLEIFTDSGVGTLISNRKRH

Source Source

Source organism organism	PSEUDOMONAS AERUGINOSA
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	N-ACETYL-L-GLUTAMATE
Molecular weight formula_weight	189.2 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	6

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2bufa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufe_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2buff_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufi_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufk_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

Domain ID domain_id	d2bufl_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.73 — Carbamate kinase-like
Superfamily Superfamily superfamily	c.73.1 — Carbamate kinase-like
Family Family family	c.73.1.2 — N-acetyl-l-glutamate kinase

CATH v4.4 (12 domains)

Domain ID domain_id	2bufA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufH00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufJ00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufK00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

Domain ID domain_id	2bufL00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1160 — Carbamate kinase
Homologous superfamily homologous superfamily	10 — Acetylglutamate kinase-like

▶

Unit-cell length a length_a	71.860 Å
Unit-cell length b length_b	98.780 Å
Unit-cell length c length_c	162.900 Å
Unit-cell angle α angle_alpha	91.49 °
Unit-cell angle β angle_beta	92.03 °
Unit-cell angle γ angle_gamma	107.56 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.950 Å
Low-resolution limit resolution_low	18.000 Å
R factor r_factor	0.2491
R_work r_work	0.2491
R_free r_free	0.2668

Arginine Feed-Back Inhibitable Acetylglutamate Kinase

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLGLUTAMATE KINASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2buf__assembly_1__model_1

2buf__assembly_1__model_1 | I(q)

2buf__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (2)

Arginine Feed-Back Inhibitable Acetylglutamate Kinase

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACETYLGLUTAMATE KINASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2buf__assembly_1__model_1

2buf__assembly_1__model_1 | I(q)

2buf__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (2)
