2bvh

Crystal structure of 6-hydoxy-D-nicotine oxidase from Arthrobacter nicotinovorans. Crystal Form 2 (P21)

Method: X-RAY DIFFRACTION D_max: 163.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

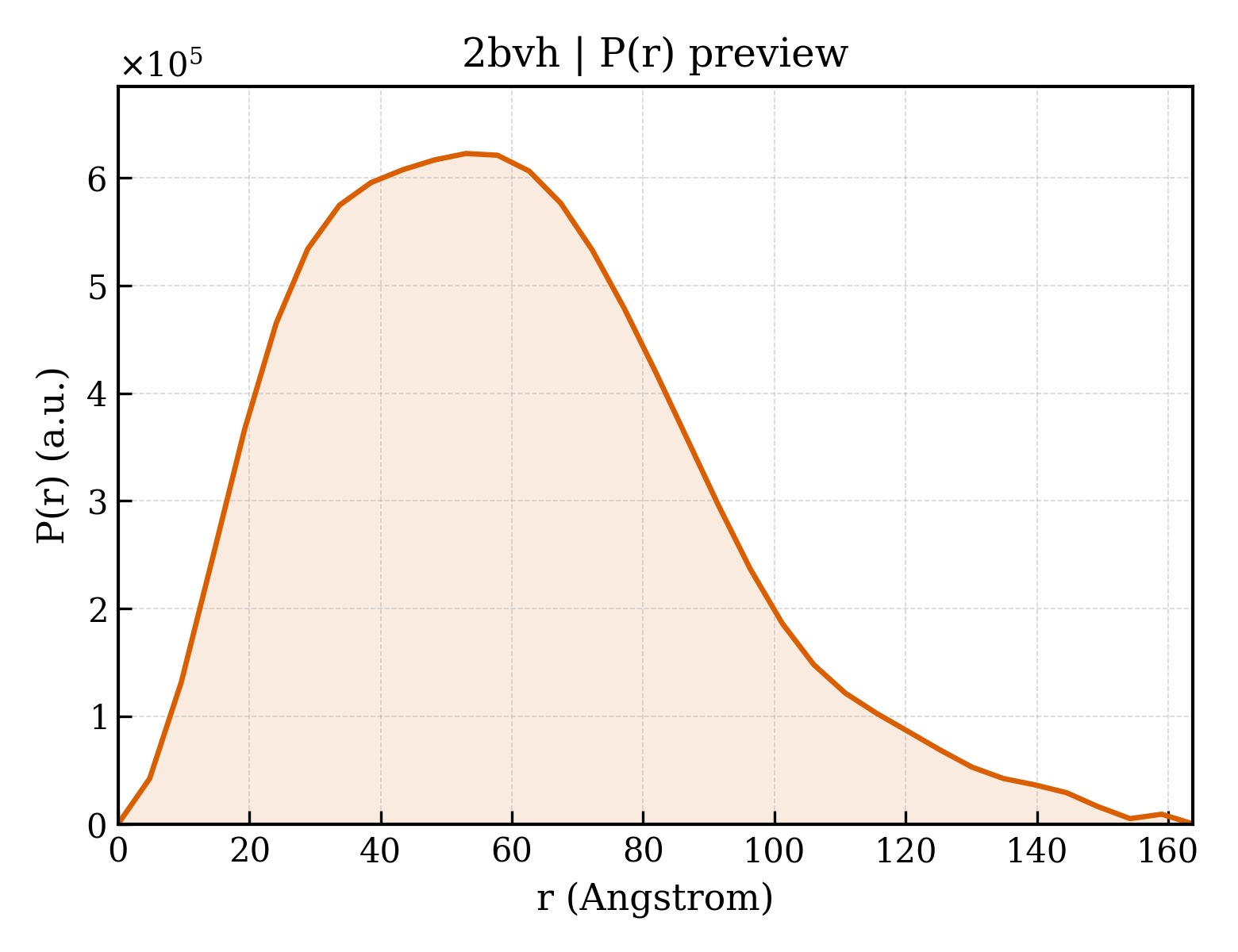

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2bvh
沉积日期 deposition_date	2005-06-28
结构标题 title	Crystal structure of 6-hydoxy-D-nicotine oxidase from Arthrobacter nicotinovorans. Crystal Form 2 (P21)
关键词 keywords	AUTOFLAVINYLATION, ENANTIOMERIC SUBSTRATES, FLAVOENZYMES, NICOTINE DEGRADATION, OXIDASE; OXIDASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.86 Å
回转半径 Rg (电子) rg_electron	46.45 Å
零角强度 I(0) i0	595123000.00
分子量 molecular_weight	196280.0 kDa
排除体积 excluded_volume	243590 Å³
包络体积 envelope_volume	309660 Å³
水化壳体积 shell_volume	59509 Å³
包络直径 envelope_diameter	173.2 Å
壳层 Rg shell_rg	46.45 Å
包络 Rg envelope_rg	46.36 Å
形状 Rg shape_rg	46.43 Å
总 Rg total_rg	46.51 Å
总原子数 total_atoms	13808
残基数 n_residues	1812
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	163.8 Å
Rg (实空间) rg_real	46.26 Å
Rg 误差 (实空间) rg_real_error	2.29 Å
I(0) (实空间) i0_real	5.9510e+08
I(0) 误差 (实空间) i0_real_error	1.2830e+07
Rg (倒空间) rg_reciprocal	45.86 Å
I(0) (倒空间) i0_reciprocal	594800000.0000
解质量估计 total_estimate	0.8282
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	53.0 Å
偏度 Skewness skewness	0.558
峰度 Kurtosis kurtosis	0.024
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	60320000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.745; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.927; Smooth: 0.600

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	6-HYDROXY-D-NICOTINE OXIDASE
分子量 formula_weight	48918.1 kDa
EC 编号 ec_number	1.5.3.6
突变 mutation	YES
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	13808

MVSSKLATPLSIQGEVIYPDDSGFDAIANIWDGRHLQRPSLIARCLSAGDVAKSVRYACDNGLEISVRSGGHNPNGYATNDGGIVLDLRLMNSIHIDTAGSRARIGGGVISGDLVKEAAKFGLAAVTGMHPKVGFCGLALNGGVGFLTPKYGLASDNILGATLVTATGDVIYCSDDERPELFWAVRGAGPNFGVVTEVEVQLYELPRKMLAGFITWAPSVSELAGLLTSLLDALNEMADHIYPSVFVGVDENRAPSVTVCVGHLGGLDIAERDIARLRGLGRTVSDSIAVRSYDEVVALNAEVGSFEDGMSNLWIDREIAMPNARFAEAIAGNLDKFVSEPASGGSVKLEIEGMPFGNPKRTPARHRDAMGVLALAEWSGAAPGSEKYPELARELDAALLRAGVTTSGFGLLNNNSEVTAEMVAEVYKPEVYSRLAAVKREYDPENRFRHNYNIDPEGS

来源 Source

来源生物 organism	ARTHROBACTER NICOTINOVORANS
NCBI 分类编号 ncbi_taxonomy_id	29320
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 20 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d2bvha1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.32 — FAD-linked oxidases, C-terminal domain
家族 Family family	d.58.32.5 — 6-hydroxy-d-nicotine oxidase

结构域编号 domain_id	d2bvha2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.145 — FAD-binding/transporter-associated domain-like
超家族 Superfamily superfamily	d.145.1 — FAD-binding/transporter-associated domain-like
家族 Family family	d.145.1.1 — FAD-linked oxidases, N-terminal domain

结构域编号 domain_id	d2bvhb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.32 — FAD-linked oxidases, C-terminal domain
家族 Family family	d.58.32.5 — 6-hydroxy-d-nicotine oxidase

结构域编号 domain_id	d2bvhb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.145 — FAD-binding/transporter-associated domain-like
超家族 Superfamily superfamily	d.145.1 — FAD-binding/transporter-associated domain-like
家族 Family family	d.145.1.1 — FAD-linked oxidases, N-terminal domain

结构域编号 domain_id	d2bvhc1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.32 — FAD-linked oxidases, C-terminal domain
家族 Family family	d.58.32.5 — 6-hydroxy-d-nicotine oxidase

结构域编号 domain_id	d2bvhc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.145 — FAD-binding/transporter-associated domain-like
超家族 Superfamily superfamily	d.145.1 — FAD-binding/transporter-associated domain-like
家族 Family family	d.145.1.1 — FAD-linked oxidases, N-terminal domain

结构域编号 domain_id	d2bvhd1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.32 — FAD-linked oxidases, C-terminal domain
家族 Family family	d.58.32.5 — 6-hydroxy-d-nicotine oxidase

结构域编号 domain_id	d2bvhd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.145 — FAD-binding/transporter-associated domain-like
超家族 Superfamily superfamily	d.145.1 — FAD-binding/transporter-associated domain-like
家族 Family family	d.145.1.1 — FAD-linked oxidases, N-terminal domain

CATH v4.4 (12 domains)

结构域编号 domain_id	2bvhA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2

结构域编号 domain_id	2bvhA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bvhA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	462 — Vanillyl-alcohol Oxidase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2bvhB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2

结构域编号 domain_id	2bvhB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bvhB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	462 — Vanillyl-alcohol Oxidase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2bvhC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2

结构域编号 domain_id	2bvhC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bvhC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	462 — Vanillyl-alcohol Oxidase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	2bvhD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2

结构域编号 domain_id	2bvhD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	2bvhD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	462 — Vanillyl-alcohol Oxidase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	20 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	103.320 Å
晶胞边长 b length_b	90.940 Å
晶胞边长 c length_c	104.440 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	100.31 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	44.300 Å
R 因子 r_factor	0.2740
R_work r_work	0.2740
R_free r_free	0.2970

fit	/app/data/saxs_computation/bv/2bvh/2bvh.fit
pddf	/app/data/pr_computation/bv/2bvh/2bvh.pr.out
profile	/app/data/saxs_computation/bv/2bvh/2bvh.dat
