SAXSdb — 2bx2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBONUCLEASE E

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Homooligomer	Protein 4 RNA 4	;RNA (5'-R(UPUPUPAPCPAPGPUPAPUPUP UPGPUP*U)-3') ; × 4 MAGNESIUM ION × 8 ZINC ION × 4 water × 8	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RNE_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 8–517； UniProt 1–510

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bx2
Deposition date deposition_date	2005-07-21
Structure title title	Catalytic domain of E. coli RNase E
Keywords keywords	RNA-BINDING, RNA TURNOVER, RNA PROCESSING, HYDROLASE, ENDONUCLEASE, NUCLEASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2bx2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2bx2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

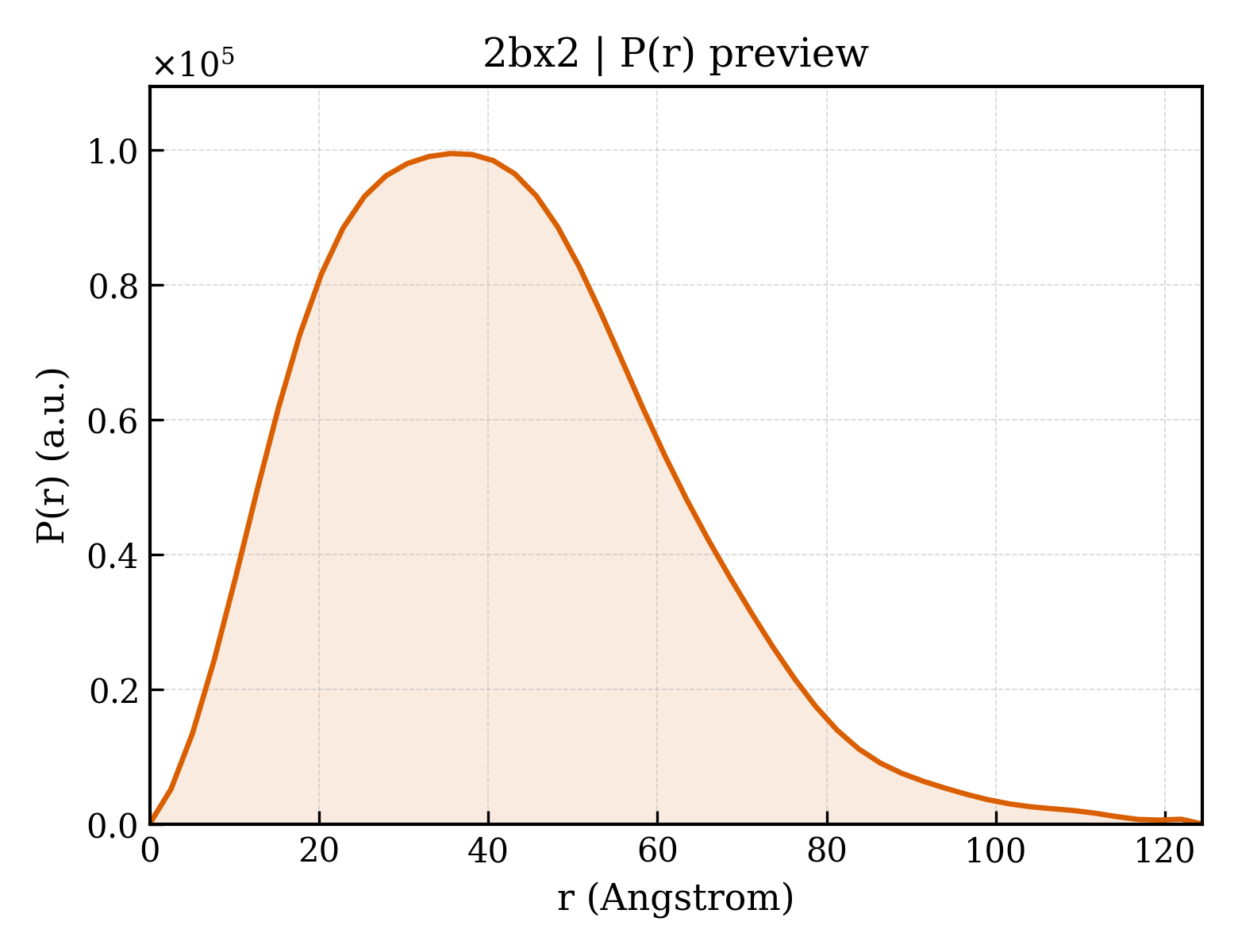

2bx2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.77 Å
Rg (electron density)	48.82 Å
Total Rg	49.16 Å
Atom count	16314
Residues	2056
Excluded volume	283950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2bx2__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	RIBONUCLEASE E
Molecular weight formula_weight	58215.1 kDa
EC 编号 ec_number	3.1.4.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	4135

AHIEGRHMKRMLINATQQEELRVALVDGQRLYDLDIESPGHEQKKANIYKGKITRIEPSLEAAFVDYGAERHGFLPLKEIAREYFPANYSAHGRPNIKDVLREGQEVIVQIDKEERGNKGAALTTFISLAGSYLVLMPNNPRAGGISRRIEGDDRTELKEALASLELPEGMGLIVRTAGVGKSAEALQWDLSFRLKHWEAIKKAAESRPAPFLIHQESNVIVRAFRDYLRQDIGEILIDNPKVLELARQHIAALGRPDFSSKIKLYTGEIPLFSHYQIESQIESAFQREVRLPSGGSIVIDSTEALTAIDINSARATRGGDIEETAFNTNLEAADEIARQLRLRDLGGLIVIDFIDMTPVRHQRAVENRLREAVRQDRARIQISHISRFGLLEMSRQRLSPSLGESSHHVCPRCSGTGTVRDNESLSLSILRLIEEEALKENTQEVHAIVPVPIASYLLNEKRSAVNAIETRQDGVRCVIVPNDQMETPHYHVLRVRKGEETPTLSYMLPKLHEEAM

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	;RNA (5'-R(UPUPUPAPCPAPGPUPAPUPUP UPGPUP*U)-3') ;
Molecular weight formula_weight	4693.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	R

UUUACAGUAUUUGUU

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	56

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2bx2L02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1260 — Hypothetical Protein Ychn; Chain: A,
Homologous superfamily homologous superfamily	20 — Ribonuclease E, catalytic domain

▶

Unit-cell length a length_a	195.838 Å
Unit-cell length b length_b	195.838 Å
Unit-cell length c length_c	143.569 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 62 2 2
Space-group number int_tables_number	180
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2310
R_work r_work	0.2300
R_free r_free	0.2570
