2byy

E.coli KAS I H298E Mutation

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3-OXOACYL-[ACYL-CARRIER-PROTEIN] SYNTHASE I

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	AMMONIUM ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	AMMONIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FABB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–418； UniProt 1–406 Author chain B； PDBConstruct 13–418； UniProt 1–406 Author chain C； PDBConstruct 13–418； UniProt 1–406 Author chain D； PDBConstruct 13–418； UniProt 1–406

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2byy
Deposition date deposition_date	2005-08-09
Structure title title	E.coli KAS I H298E Mutation
Keywords keywords	TRANSFERASE, ACYLTRANSFERASE, CLAISEN CONDENSATION, FATTY ACID BIOSYNTHESIS, FATTY ACID SYNTHASE, THIOLASE FOLD; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2byy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2byy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

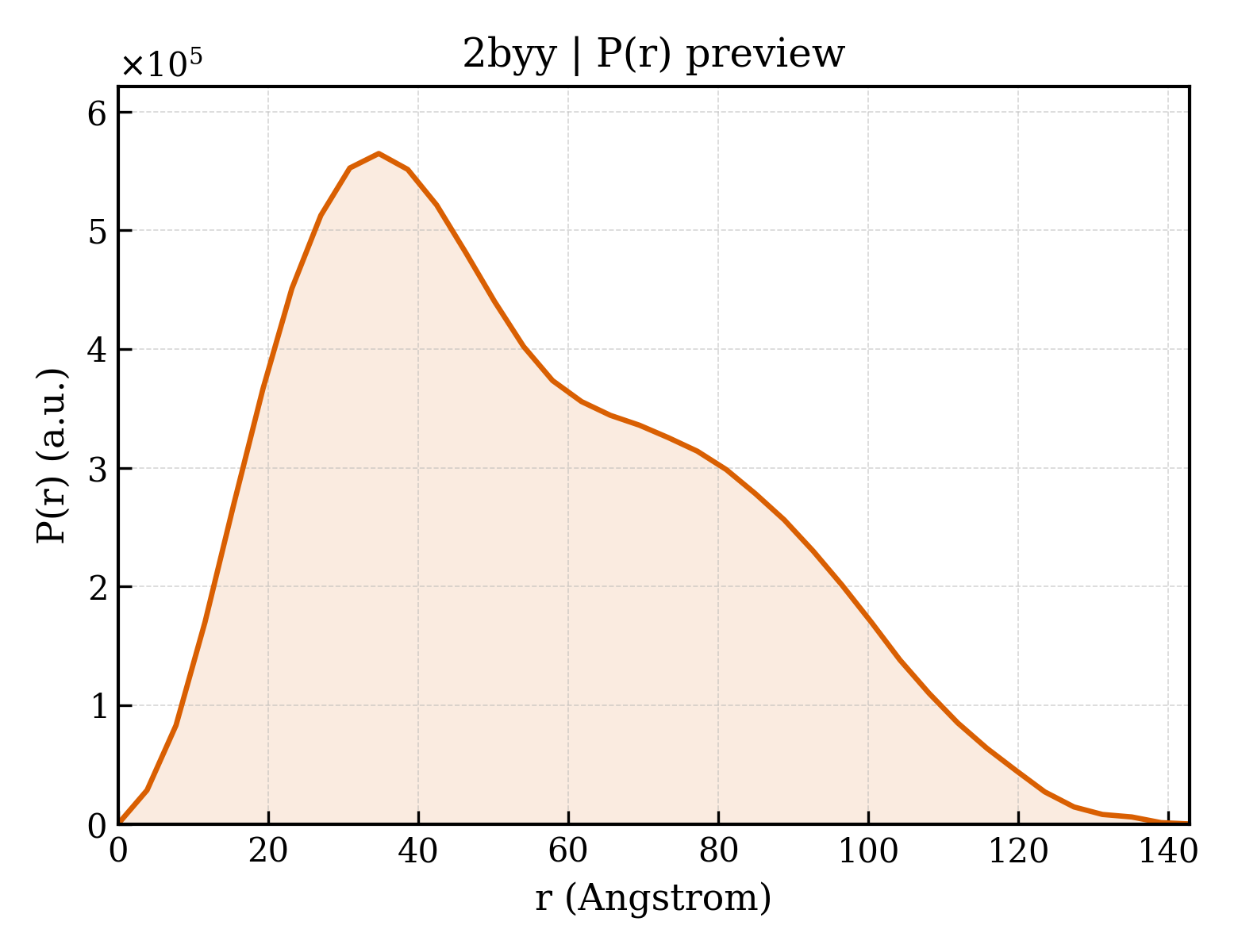

2byy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.12 Å
Rg (electron density)	25.14 Å
Total Rg	25.90 Å
Atom count	5946
Residues	812
Excluded volume	105260 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2byy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2byy__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	3-OXOACYL-[ACYL-CARRIER-PROTEIN] SYNTHASE I
Molecular weight formula_weight	44052.7 kDa
EC 编号 ec_number	2.3.1.41
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	12464

MRGSHHHHHHGSMKRAVITGLGIVSSIGNNQQEVLASLREGRSGITFSQELKDSGMRSHVWGNVKLDTTGLIDRKVVRFMSDASIYAFLSMEQAIADAGLSPEAYQNNPRVGLIAGSGGGSPRFQVFGADAMRGPRGLKAVGPYVVTKAMASGVSACLATPFKIHGVNYSISSACATSAHCIGNAVEQIQLGKQDIVFAGGGEELCWEMACEFDAMGALSTKYNDTPEKASRTYDAHRDGFVIAGGGGMVVVEELEHALARGAHIYAEIVGYGATSDGADMVAPSGEGAVRCMKMAMHGVDTPIDYLNSEGTSTPVGDVKELAAIREVFGDKSPAISATKAMTGHSLGAAGVQEAIYSLLMLEHGFIAPSINIEELDEQAAGLNIVTETTDRELTTVMSNSFGFGGTNATLVMRKLKD

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	AMMONIUM ION
Molecular weight formula_weight	18.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	572

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2byya1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d2byya2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.0 — automated matches

Domain ID domain_id	d2byyb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d2byyb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.0 — automated matches

Domain ID domain_id	d2byyc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d2byyc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.0 — automated matches

Domain ID domain_id	d2byyd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.1 — Thiolase-related

Domain ID domain_id	d2byyd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.95 — Thiolase-like
Superfamily Superfamily superfamily	c.95.1 — Thiolase-like
Family Family family	c.95.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	2byyA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	2byyA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	2byyB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	2byyB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	2byyC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	2byyC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	2byyD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

Domain ID domain_id	2byyD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

▶

Unit-cell length a length_a	59.130 Å
Unit-cell length b length_b	139.386 Å
Unit-cell length c length_c	213.092 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	32.490 Å
R factor r_factor	0.2170
R_work r_work	0.2170
R_free r_free	0.2720
