SAXSdb — 2bzw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

APOPTOSIS REGULATOR BCL-X

MUS MUSCULUS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–211	Fragment：BCL-2 HOMOLOGY DOMAIN, RESIDUES 1-211	BCL2-ANTAGONIST OF CELL DEATH × 1 （Q61337）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.30 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2BZW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PQ0 Crystal structure of mouse Bcl-xl Deposited 2003-06-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：Bcl-xl	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；NH4SO4, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.243
1PQ1 Crystal structure of Bcl-xl/Bim Deposited 2003-06-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–196（196 aa） Fragment：BIM	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；NH4H2PO4, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.237
3IHC Crystal structure of mouse Bcl-xl (wt) at pH 5.0 Deposited 2009-07-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.6M Ammonium sulphate, Tri-Na citrate (pH 5.0), VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.85 Å R-free 0.242
3IHD Crystal structure of mouse Bcl-xl mutant (Y101A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：Y101A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.4M Ammonium Sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.88 Å R-free 0.210
3IHE Crystal structure of mouse Bcl-xl mutant (F105A) at pH 6.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：F105A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；1.7M Ammonium sulphate, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.00 Å R-free 0.239
3IHF Crystal structure of mouse Bcl-xl mutant (R139A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.45M Ammonium sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.28 Å R-free 0.266
3IHF Crystal structure of mouse Bcl-xl mutant (R139A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.45M Ammonium sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.28 Å R-free 0.266
3IHF Crystal structure of mouse Bcl-xl mutant (R139A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.45M Ammonium sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.28 Å R-free 0.266
3IHF Crystal structure of mouse Bcl-xl mutant (R139A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.45M Ammonium sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.28 Å R-free 0.266
3IIG Crystal structure of mouse Bcl-xl mutant (F105A) at pH 5.0 Deposited 2009-08-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：F105A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.6M Ammonium sulphate, 0.1M tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.30 Å R-free 0.269
3IIH Crystal structure of mouse Bcl-xl (wt) at pH 6.0 Deposited 2009-08-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；1.0M Ammonium sulphate, 0.4M Lithium sulphate, MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.75 Å R-free 0.275
3ILB Crystal structure of mouse Bcl-xl mutant (R139A) at pH 6.0 Deposited 2009-08-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；1.2M Ammonium sulphate, 0.3M Lithium sulphate, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.38 Å R-free 0.293
3ILB Crystal structure of mouse Bcl-xl mutant (R139A) at pH 6.0 Deposited 2009-08-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain N 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；1.2M Ammonium sulphate, 0.3M Lithium sulphate, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.38 Å R-free 0.293
3ILC Crystal structure of mouse Bcl-xl mutant (Y101A) at pH 6.0 Deposited 2009-08-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：Y101A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；1.6M Ammonium sulphate, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.64 Å R-free 0.244
4YJ4 Crystal structure of Bcl-xL in complex with the BIM BH3 domain containing Ile155-to-Arg and Glu158-to-phosphoserine mutations Deposited 2015-03-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–196（196 aa）	Mutation：M83E, A84S	ACT ACETATE ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.8；293 K；0.1 M sodium acetate (pH 4.8), 3.0 M sodium chloride	Resolution 2.10 Å R-free 0.211
4YK9 Complex structure of BCL-XL and mutated BIM BH3 domain Deposited 2015-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–196（195 aa） Fragment：UNP RESIDUES 2-196	Not recorded	ACT ACETATE ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；287 K；0.1 M sodium acetate (pH 4.6), 0.01 M calcium chloride and 15% v/v 2-methyl-2,4-pentanediol	Resolution 1.70 Å R-free 0.228
4YK9 Complex structure of BCL-XL and mutated BIM BH3 domain Deposited 2015-03-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 2–196（195 aa） Fragment：UNP RESIDUES 2-196	Not recorded	ACT ACETATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；287 K；0.1 M sodium acetate (pH 4.6), 0.01 M calcium chloride and 15% v/v 2-methyl-2,4-pentanediol	Resolution 1.70 Å R-free 0.228
5C3G Crystal structure of Bcl-xl bound to BIM-MM Deposited 2015-06-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–26（26 aa） Fragment：UNP residues 1-26,UNP residues 83-209	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；12% Peg 1500, 0.1M Sodium Acetate pH 5.5, 2.5M NaCl, 1.5% MPD	Resolution 2.45 Å R-free 0.274
7WJH Crystal structure of Bcl-xL bound to the BH3 domain of human Pxt1 Deposited 2022-01-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–42（42 aa） Chain A 85–196（112 aa）	Not recorded	SO4 SULFATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M ammonium sulfate and 30% (w/v) polyethylene glycol 8,000	Resolution 1.70 Å R-free 0.207
7Y99 Crystal Structure Analysis of cp2 bound BCLxl Deposited 2022-06-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–26（26 aa） Chain A 82–196（115 aa）	Not recorded	IQ8 N-(2-acetamidoethyl)-4-(4,5-dihydro-1,3-thiazol-2-yl)benzamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；Ammonium acetate, BIS-TRIS, MPD	Resolution 1.90 Å R-free 0.192

15 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BCLX_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–211； UniProt 1–211

BCL2-ANTAGONIST OF CELL DEATH

MUS MUSCULUS

UniProt Q61337

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 137–163	Not recorded	APOPTOSIS REGULATOR BCL-X × 1 （Q64373）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.30 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	BAD_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–27； UniProt 137–163

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bzw
Deposition date deposition_date	2005-08-24
Structure title title	The crystal structure of BCL-XL in complex with full-length BAD
Keywords keywords	TRANSCRIPTION, APOPTOSIS, PHOSPHORYLATION, TRANSCRIPTION COMPLEX, MITOCHONDRION, TRANSMEMBRANE; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.50 Å
Radius of gyration Rg (electron density) rg_electron	15.07 Å
Forward intensity I(0) i0	7300540.00
Molecular weight molecular_weight	19625.0 kDa
Excluded volume excluded_volume	24440 Å³
Envelope volume envelope_volume	26697 Å³
Hydration-shell volume shell_volume	14746 Å³
Envelope diameter envelope_diameter	53.2 Å
Shell Rg shell_rg	21.22 Å
Envelope Rg envelope_rg	15.35 Å
Shape Rg shape_rg	15.05 Å
Total Rg total_rg	16.21 Å
Total atoms total_atoms	1389
Residues n_residues	172
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

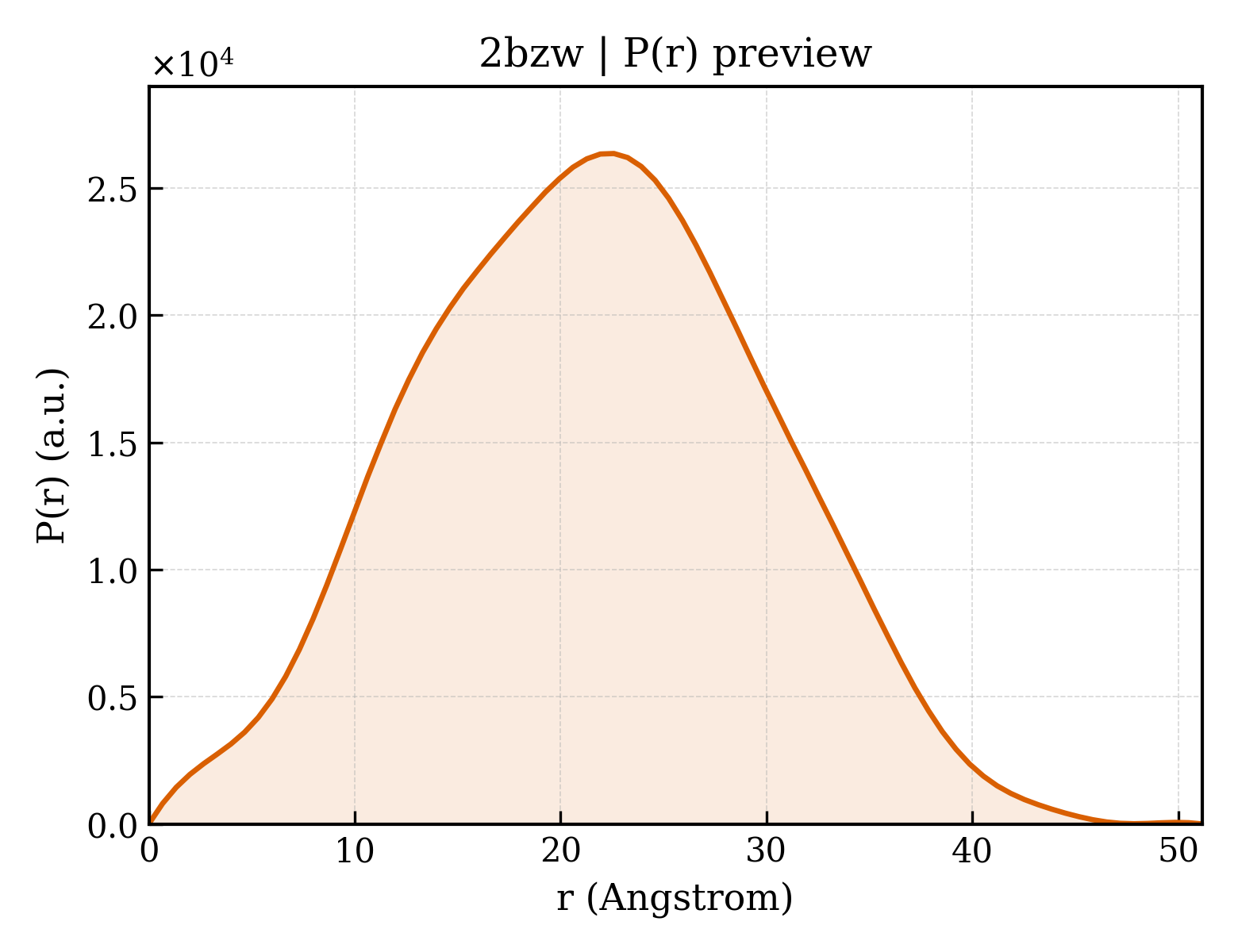

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	51.2 Å
Rg (real space) rg_real	16.35 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	7.3010e+06
I(0) uncertainty (real space) i0_real_error	7.9640e+04
Rg (reciprocal space) rg_reciprocal	16.37 Å
I(0) (reciprocal space) i0_reciprocal	7301000.0000
Solution quality estimate total_estimate	0.8890
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.6 Å
Skewness Skewness skewness	0.044
Kurtosis Kurtosis kurtosis	-0.437
Angular range angular_range	— – 0.4800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1544000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	APOPTOSIS REGULATOR BCL-X
Molecular weight formula_weight	23733.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1426

MSQSNRELVVDFLSYKLSQKGYSWSQFSDVEENRTEAPEETEAERETPSAINGNPSWHLADSPAVNGATGHSSSLDAREVIPMAAVKQALREAGDEFELRYRRAFSDLTSQLHITPGTAYQSFEQVVNELFRDGVNWGRIVAFFSFGGALCVESVDKEMQVLVSRIASWMATYLNDHLEPWIQENGGWDTFVDLYGNNAAAESRKGQERFN

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	HOUSE MOUSE
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	BCL2-ANTAGONIST OF CELL DEATH
Molecular weight formula_weight	3217.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

APPNLWAAQRYGRELRRMSDEFEGSFK

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	HOUSE MOUSE
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	37

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2bzwa2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.1 — Toxins' membrane translocation domains
Superfamily Superfamily superfamily	f.1.4 — Bcl-2 inhibitors of programmed cell death
Family Family family	f.1.4.1 — Bcl-2 inhibitors of programmed cell death

Domain ID domain_id	d2bzwa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2bzwA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	437 — Apoptosis Regulator Bcl-x
Homologous superfamily homologous superfamily	10 — Blc2-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	91.748 Å
Unit-cell length b length_b	91.748 Å
Unit-cell length c length_c	58.545 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2193
R_work r_work	0.2193
R_free r_free	0.2479

fit	/app/data/saxs_computation/bz/2bzw/2bzw.fit
pddf	/app/data/pr_computation/bz/2bzw/2bzw.pr.out
profile	/app/data/saxs_computation/bz/2bzw/2bzw.dat

The crystal structure of BCL-XL in complex with full-length BAD

1. Protein Identity and Related Structures Protein Identity & Related Structures

APOPTOSIS REGULATOR BCL-X

State in the Current Structure

Other States of the Same Protein in the Database

BCL2-ANTAGONIST OF CELL DEATH

State in the Current Structure

Other States of the Same Protein in the Database

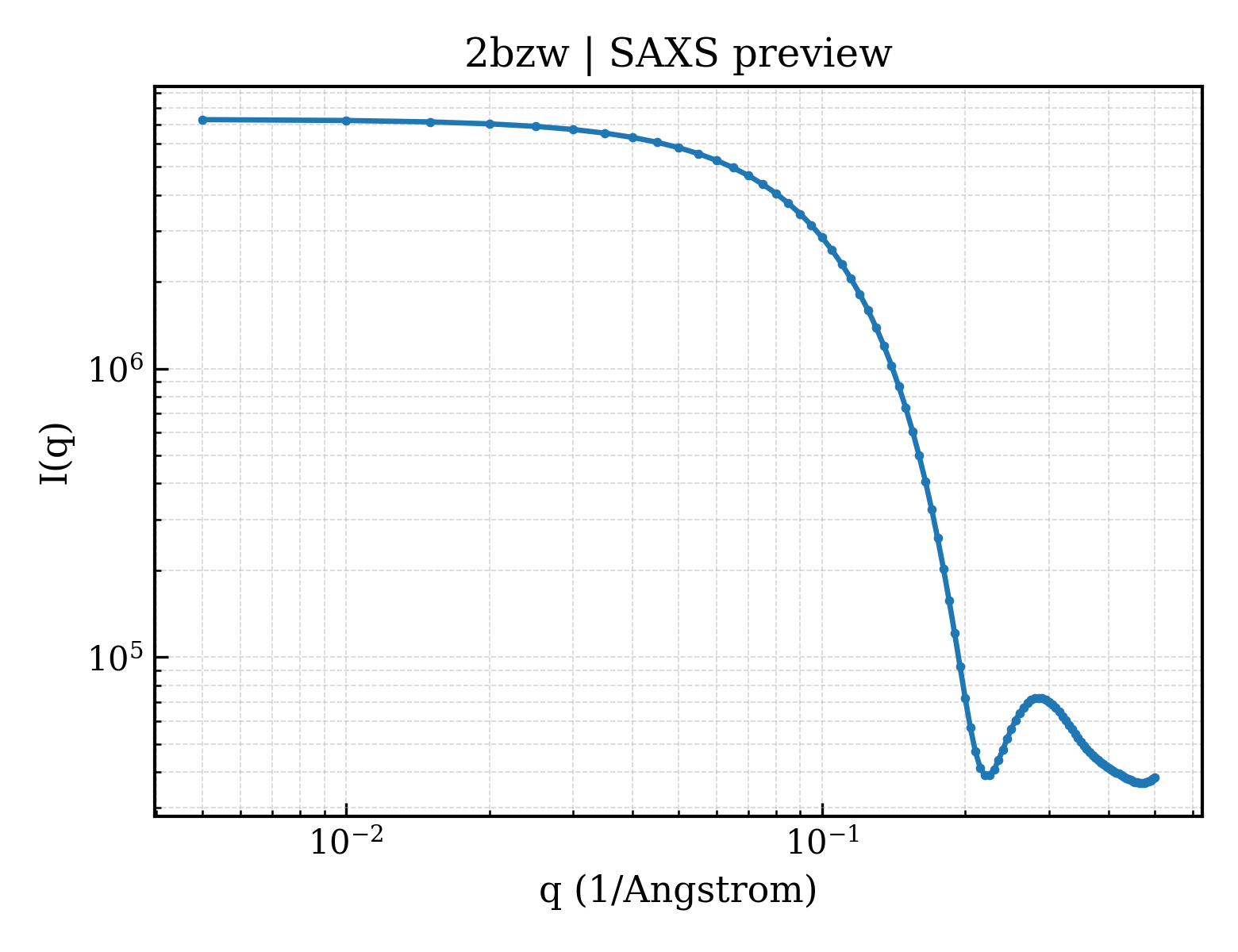

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
