SAXSdb — 4yj4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bcl-2-like protein 1

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–196	Mutation：M83E, A84S	Bcl-2-like protein 1, BIM BH3 domain × 1 ACT ACETATE ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 4.8；293 K；0.1 M sodium acetate (pH 4.8), 3.0 M sodium chloride	Resolution 2.10 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4YJ4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PQ0 Crystal structure of mouse Bcl-xl Deposited 2003-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：Bcl-xl	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；NH4SO4, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.243
1PQ1 Crystal structure of Bcl-xl/Bim Deposited 2003-06-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–196（196 aa） Fragment：BIM	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；298 K；NH4H2PO4, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.237
2BZW The crystal structure of BCL-XL in complex with full-length BAD Deposited 2005-08-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–211（211 aa） Fragment：BCL-2 HOMOLOGY DOMAIN, RESIDUES 1-211	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.248
3IHC Crystal structure of mouse Bcl-xl (wt) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.6M Ammonium sulphate, Tri-Na citrate (pH 5.0), VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.85 Å R-free 0.242
3IHD Crystal structure of mouse Bcl-xl mutant (Y101A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：Y101A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.4M Ammonium Sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.88 Å R-free 0.210
3IHE Crystal structure of mouse Bcl-xl mutant (F105A) at pH 6.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：F105A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；1.7M Ammonium sulphate, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.00 Å R-free 0.239
3IHF Crystal structure of mouse Bcl-xl mutant (R139A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.45M Ammonium sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.28 Å R-free 0.266
3IHF Crystal structure of mouse Bcl-xl mutant (R139A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.45M Ammonium sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.28 Å R-free 0.266
3IHF Crystal structure of mouse Bcl-xl mutant (R139A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.45M Ammonium sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.28 Å R-free 0.266
3IHF Crystal structure of mouse Bcl-xl mutant (R139A) at pH 5.0 Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.45M Ammonium sulphate, Tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.28 Å R-free 0.266
3IIG Crystal structure of mouse Bcl-xl mutant (F105A) at pH 5.0 Deposited 2009-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：F105A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；1.6M Ammonium sulphate, 0.1M tri-Na citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.30 Å R-free 0.269
3IIH Crystal structure of mouse Bcl-xl (wt) at pH 6.0 Deposited 2009-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；1.0M Ammonium sulphate, 0.4M Lithium sulphate, MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.75 Å R-free 0.275
3ILB Crystal structure of mouse Bcl-xl mutant (R139A) at pH 6.0 Deposited 2009-08-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；1.2M Ammonium sulphate, 0.3M Lithium sulphate, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.38 Å R-free 0.293
3ILB Crystal structure of mouse Bcl-xl mutant (R139A) at pH 6.0 Deposited 2009-08-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain N 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：R139A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；1.2M Ammonium sulphate, 0.3M Lithium sulphate, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.38 Å R-free 0.293
3ILC Crystal structure of mouse Bcl-xl mutant (Y101A) at pH 6.0 Deposited 2009-08-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–196（196 aa） Fragment：UNP residues 1-196	Mutation：Y101A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；1.6M Ammonium sulphate, MES, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.64 Å R-free 0.244
4YK9 Complex structure of BCL-XL and mutated BIM BH3 domain Deposited 2015-03-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–196（195 aa） Fragment：UNP RESIDUES 2-196	Not recorded	ACT ACETATE ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；287 K；0.1 M sodium acetate (pH 4.6), 0.01 M calcium chloride and 15% v/v 2-methyl-2,4-pentanediol	Resolution 1.70 Å R-free 0.228
4YK9 Complex structure of BCL-XL and mutated BIM BH3 domain Deposited 2015-03-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 2–196（195 aa） Fragment：UNP RESIDUES 2-196	Not recorded	ACT ACETATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；287 K；0.1 M sodium acetate (pH 4.6), 0.01 M calcium chloride and 15% v/v 2-methyl-2,4-pentanediol	Resolution 1.70 Å R-free 0.228
5C3G Crystal structure of Bcl-xl bound to BIM-MM Deposited 2015-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–26（26 aa） Fragment：UNP residues 1-26,UNP residues 83-209	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；12% Peg 1500, 0.1M Sodium Acetate pH 5.5, 2.5M NaCl, 1.5% MPD	Resolution 2.45 Å R-free 0.274
7WJH Crystal structure of Bcl-xL bound to the BH3 domain of human Pxt1 Deposited 2022-01-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–42（42 aa） Chain A 85–196（112 aa）	Not recorded	SO4 SULFATE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2 M ammonium sulfate and 30% (w/v) polyethylene glycol 8,000	Resolution 1.70 Å R-free 0.207
7Y99 Crystal Structure Analysis of cp2 bound BCLxl Deposited 2022-06-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–26（26 aa） Chain A 82–196（115 aa）	Not recorded	IQ8 N-(2-acetamidoethyl)-4-(4,5-dihydro-1,3-thiazol-2-yl)benzamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；Ammonium acetate, BIS-TRIS, MPD	Resolution 1.90 Å R-free 0.192

15 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	B2CL1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–198； UniProt 1–196

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4yj4
Deposition date deposition_date	2015-03-03
Structure title title	Crystal structure of Bcl-xL in complex with the BIM BH3 domain containing Ile155-to-Arg and Glu158-to-phosphoserine mutations
Keywords keywords	Bcl-xL, BIM, BH3, apoptosis; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.47 Å
Radius of gyration Rg (electron density) rg_electron	14.85 Å
Forward intensity I(0) i0	7356320.00
Molecular weight molecular_weight	19393.0 kDa
Excluded volume excluded_volume	24004 Å³
Envelope volume envelope_volume	26422 Å³
Hydration-shell volume shell_volume	14734 Å³
Envelope diameter envelope_diameter	47.6 Å
Shell Rg shell_rg	21.07 Å
Envelope Rg envelope_rg	15.08 Å
Shape Rg shape_rg	14.82 Å
Total Rg total_rg	16.01 Å
Total atoms total_atoms	1369
Residues n_residues	163
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.4 Å
Rg (real space) rg_real	16.31 Å
Rg uncertainty (real space) rg_real_error	0.23 Å
I(0) (real space) i0_real	7.3560e+06
I(0) uncertainty (real space) i0_real_error	8.3780e+04
Rg (reciprocal space) rg_reciprocal	16.32 Å
I(0) (reciprocal space) i0_reciprocal	7356000.0000
Solution quality estimate total_estimate	0.8952
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.8 Å
Skewness Skewness skewness	-0.006
Kurtosis Kurtosis kurtosis	-0.459
Angular range angular_range	— – 0.4850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1598000.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.895; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.984

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Bcl-2-like protein 1
Molecular weight formula_weight	22265.3 kDa
Mutation mutation	M83E, A84S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1517

GHMSQSNRELVVDFLSYKLSQKGYSWSQFSDVEENRTEAPEETEAERETPSAINGNPSWHLADSPAVNGATGHSSSLDAREVIPESAVKQALREAGDEFELRYRRAFSDLTSQLHITPGTAYQSFEQVVNELFRDGVNWGRIVAFFSFGGALCVESVDKEMQVLVSRIASWMATYLNDHLEPWIQENGGWDTFVDLYG

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Bcl-2-like protein 1, BIM BH3 domain
Molecular weight formula_weight	2740.9 kDa
Mutation mutation	I155A, E158S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

XIWIAQELRRRGDSFNAYYAR

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	143

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4yj4A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	437 — Apoptosis Regulator Bcl-x
Homologous superfamily homologous superfamily	10 — Blc2-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	72.926 Å
Unit-cell length b length_b	72.926 Å
Unit-cell length c length_c	75.458 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1831
R_work r_work	0.1831
R_free r_free	0.2107

fit	/app/data/saxs_computation/yj/4yj4/4yj4.fit
pddf	/app/data/pr_computation/yj/4yj4/4yj4.pr.out
profile	/app/data/saxs_computation/yj/4yj4/4yj4.dat

Crystal structure of Bcl-xL in complex with the BIM BH3 domain containing Ile155-to-Arg and Glu158-to-phosphoserine mutations

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bcl-2-like protein 1

State in the Current Structure

Other States of the Same Protein in the Database

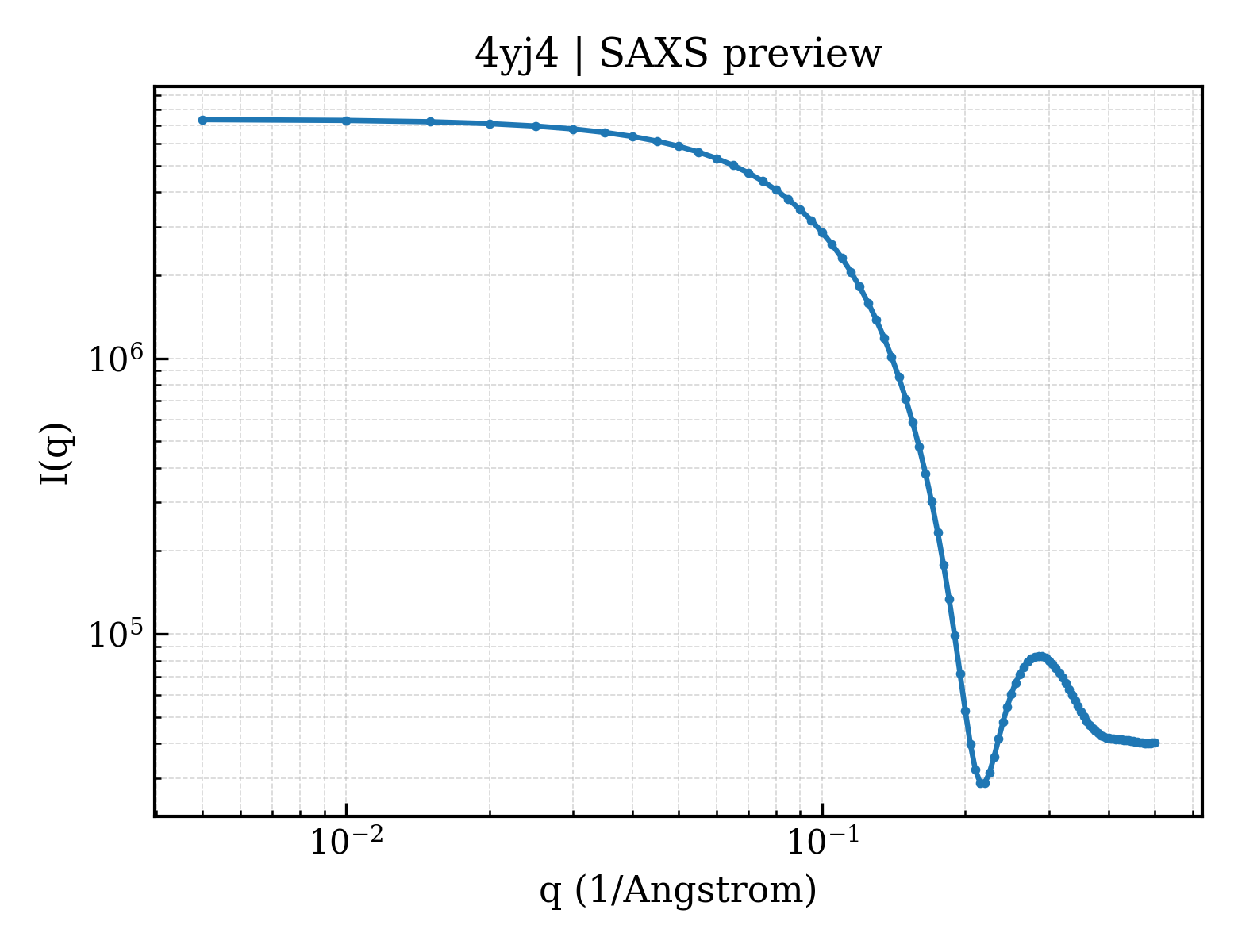

SAXS scattering curve SAXS Profile

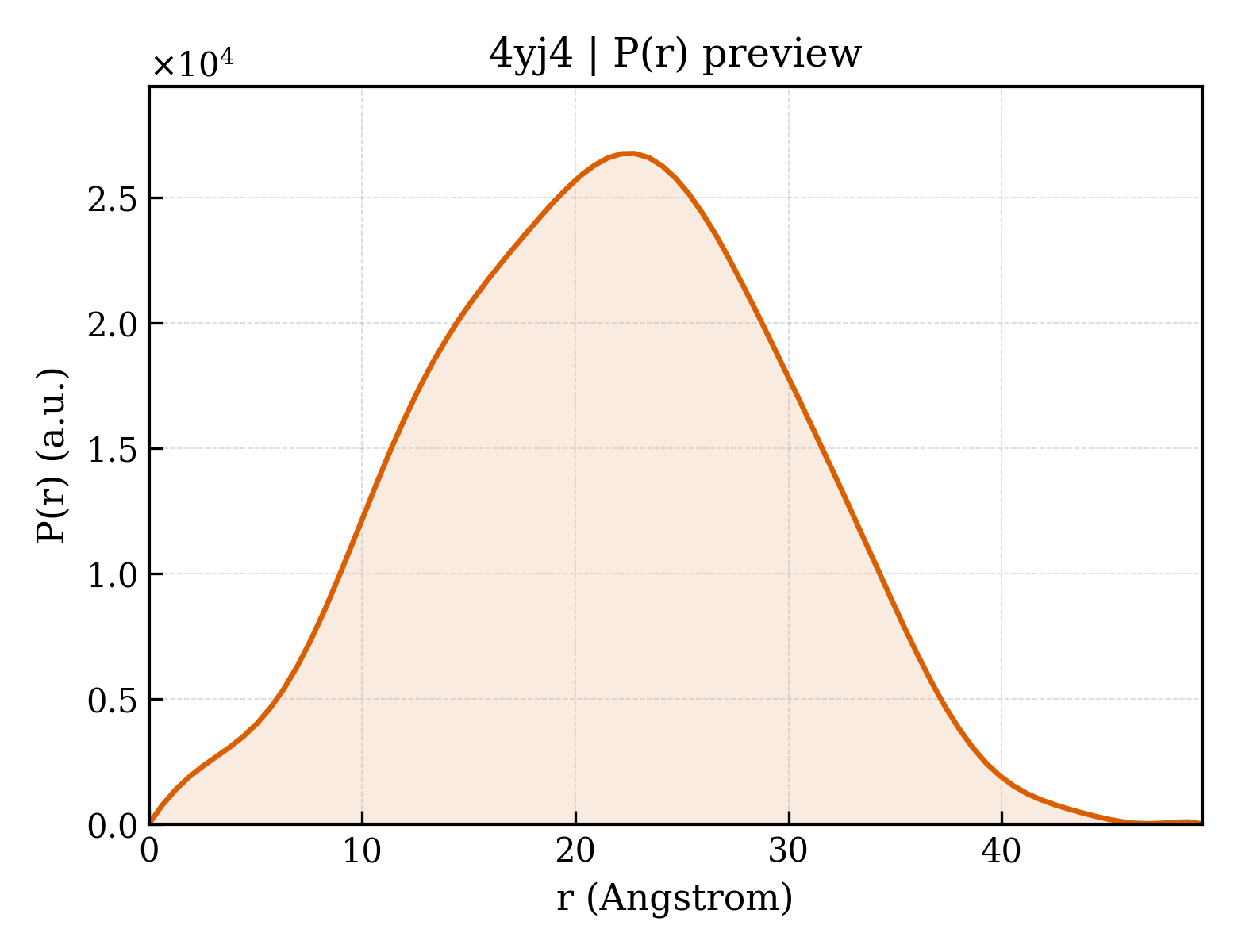

P(r) Distance Distribution P(r) Distribution
