SAXSdb — 2c04

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SIGNAL RECOGNITION PARTICLE PROTEIN

THERMUS AQUATICUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 CALCIUM ION × 2 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SRP54_THEAQ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–297； UniProt 1–296 Author chain B； PDBConstruct 2–297； UniProt 1–296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2c04
Deposition date deposition_date	2005-08-25
Structure title title	GMPPCP complex of SRP GTPase Ffh NG Domain at ultra-high resolution
Keywords keywords	GMPPNP, GTP-BINDING, RNA-BINDING, SIGNALING PROTEIN, SRP, SRP54, NUCLEOTIDE-BINDING, SIGNAL PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2c04__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2c04__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

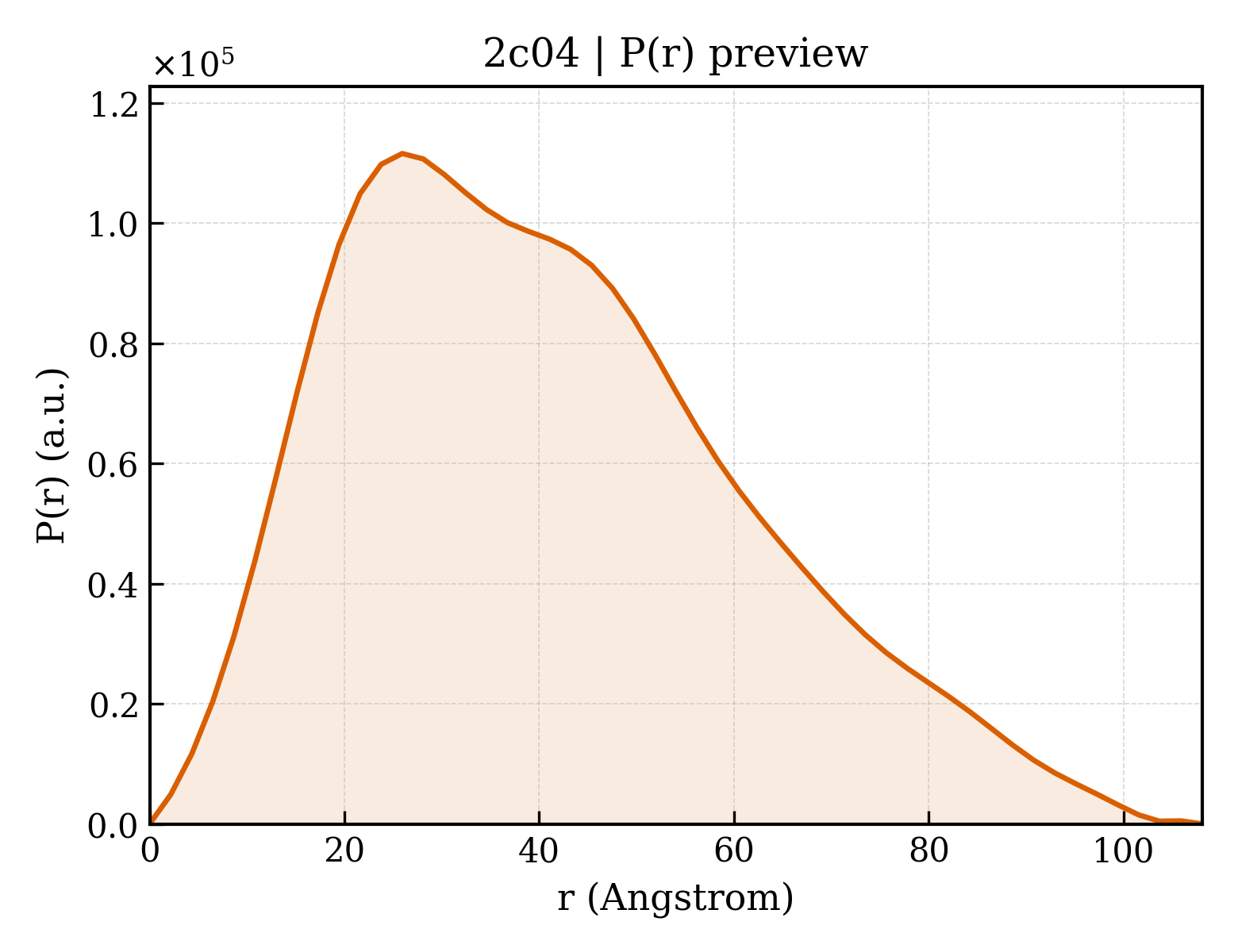

2c04__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.91 Å
Rg (electron density)	22.11 Å
Total Rg	22.93 Å
Atom count	4623
Residues	297
Excluded volume	41489 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2c04__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2c04__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	SIGNAL RECOGNITION PARTICLE PROTEIN
Molecular weight formula_weight	32571.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	17366

MFQQLSARLQEAIGRLRGRGRITEEDLKATLREIRRALMDADVNLEVARDFVERVREEALGKQVLESLTPAEVILATVYEALKEALGGEARLPVLKDRNLWFLVGLQGSGKTTTAAKLALYYKGKGRRPLLVAADTQRPAAREQLRLLGEKVGVPVLEVMDGESPESIRRRVEEKARLEARDLILVDTAGRLQIDEPLMGELARLKEVLGPDEVLLVLDAMTGQEALSVARAFDEKVGVTGLVLTKLDGDARGGAALSARHVTGKPIYFAGVSEKPEGLEPFYPERLAGRILGMGDV

Source Source

Source organism organism	THERMUS AQUATICUS
NCBI taxonomy ID ncbi_taxonomy_id	271
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER
Molecular weight formula_weight	521.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	585

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2c04a1
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.13 — Domain of the SRP/SRP receptor G-proteins
Family Family family	a.24.13.1 — Domain of the SRP/SRP receptor G-proteins

Domain ID domain_id	d2c04a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.10 — Nitrogenase iron protein-like

Domain ID domain_id	d2c04b1
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.13 — Domain of the SRP/SRP receptor G-proteins
Family Family family	a.24.13.1 — Domain of the SRP/SRP receptor G-proteins

Domain ID domain_id	d2c04b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.10 — Nitrogenase iron protein-like

CATH v4.4 (4 domains)

Domain ID domain_id	2c04A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	140 — SRP54, nucleotide-binding domain

Domain ID domain_id	2c04A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2c04B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	140 — SRP54, nucleotide-binding domain

Domain ID domain_id	2c04B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	109.006 Å
Unit-cell length b length_b	54.440 Å
Unit-cell length c length_c	98.831 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.16 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.150 Å
Low-resolution limit resolution_low	19.610 Å
R factor r_factor	0.1460
R_work r_work	0.1430
R_free r_free	0.1800
