SAXSdb — 2c0m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PEROXISOMAL TARGETING SIGNAL 1 RECEPTOR

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PEX5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–319； UniProt 284–602 Author chain B； PDBConstruct 1–319； UniProt 284–602 Author chain C； PDBConstruct 1–319； UniProt 284–602 Author chain F； PDBConstruct 1–319； UniProt 284–602

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2c0m
Deposition date deposition_date	2005-09-05
Structure title title	apo form of the TPR domain of the pex5p receptor
Keywords keywords	;TRANSPORT PROTEIN, TPR REPEAT, TRANSPORT, IMPORT RECEPTOR COMPLEX, PEROXISOME, DISEASE MUTATION, PROTEIN TRANSPORT, ZELLWEGER SYNDROME ;; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2c0m__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2c0m__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

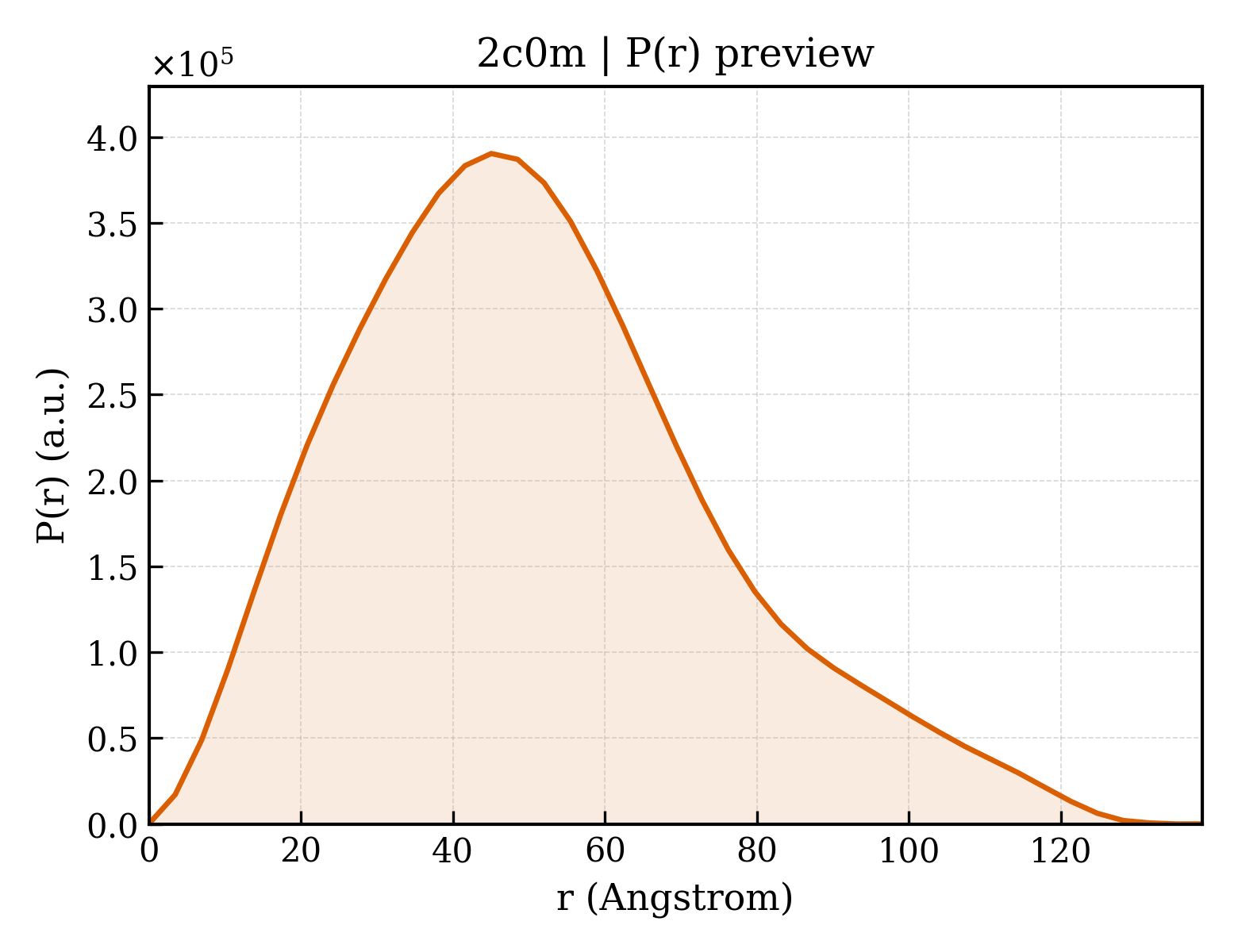

2c0m__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.48 Å
Rg (electron density)	20.59 Å
Total Rg	21.40 Å
Atom count	2335
Residues	297
Excluded volume	41240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2c0m__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2c0m__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2c0m__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`2c0m__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2c0ma_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

Domain ID domain_id	d2c0mb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

Domain ID domain_id	d2c0mc_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

Domain ID domain_id	d2c0mf_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.8 — TPR-like
Family Family family	a.118.8.1 — Tetratricopeptide repeat (TPR)

CATH v4.4 (4 domains)

Domain ID domain_id	2c0mA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

Domain ID domain_id	2c0mB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

Domain ID domain_id	2c0mC00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

Domain ID domain_id	2c0mF00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

▶

Unit-cell length a length_a	53.470 Å
Unit-cell length b length_b	85.550 Å
Unit-cell length c length_c	88.890 Å
Unit-cell angle α angle_alpha	71.17 °
Unit-cell angle β angle_beta	89.99 °
Unit-cell angle γ angle_gamma	73.43 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	19.540 Å
R factor r_factor	0.2650
R_work r_work	0.2630
R_free r_free	0.3090

Description description	PEROXISOMAL TARGETING SIGNAL 1 RECEPTOR
Molecular weight formula_weight	35246.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,F
Atom count atom_count	9629

apo form of the TPR domain of the pex5p receptor

1. Protein Identity and Related Structures Protein Identity & Related Structures

PEROXISOMAL TARGETING SIGNAL 1 RECEPTOR

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2c0m__assembly_1__model_1

2c0m__assembly_1__model_1 | I(q)

2c0m__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	146
