The structure of a truncated, soluble version of semicarbazide- sensitive amine oxidase

Method: X-RAY DIFFRACTION D_max: 164.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

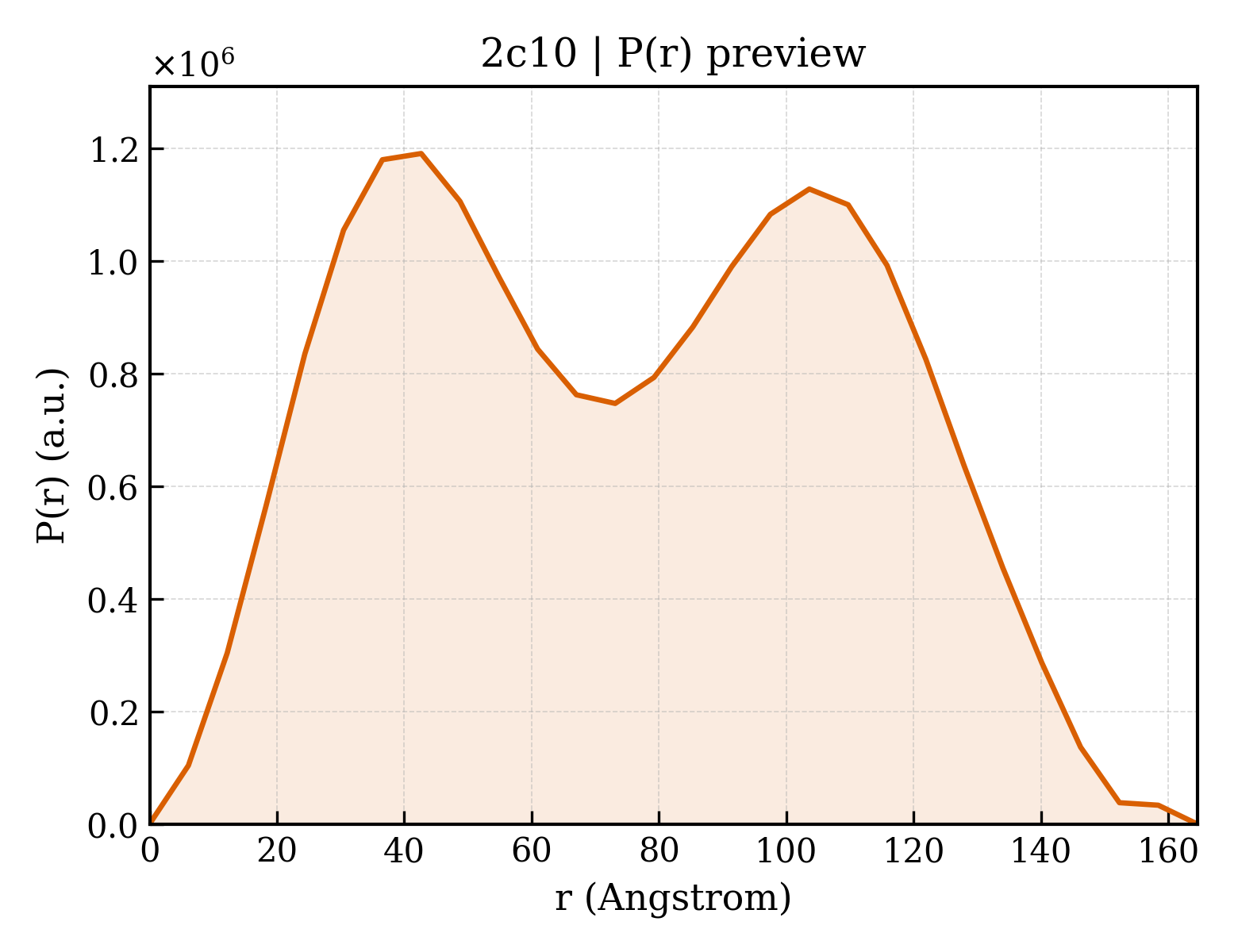

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2c10
沉积日期 deposition_date	2005-09-09
结构标题 title	The structure of a truncated, soluble version of semicarbazide- sensitive amine oxidase
关键词 keywords	;SEMICARBAZIDE-SENSITIVE AMINE OXIDASE, VASCULAR ADHESION, PROTEIN-1, SSAO, VAP-1, CELL ADHESION, GLYCOPROTEIN, METAL- BINDING, OXIDOREDUCTASE, SIGNAL- ANCHOR, TPQ, TRANSMEMBRANE ;; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.68 Å
回转半径 Rg (电子) rg_electron	58.36 Å
零角强度 I(0) i0	1458030000.00
分子量 molecular_weight	324350.0 kDa
排除体积 excluded_volume	405330 Å³
包络体积 envelope_volume	569790 Å³
水化壳体积 shell_volume	76649 Å³
包络直径 envelope_diameter	182.4 Å
壳层 Rg shell_rg	68.98 Å
包络 Rg envelope_rg	56.01 Å
形状 Rg shape_rg	58.34 Å
总 Rg total_rg	58.64 Å
总原子数 total_atoms	22907
残基数 n_residues	2826
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	164.5 Å
Rg (实空间) rg_real	58.70 Å
Rg 误差 (实空间) rg_real_error	1.28 Å
I(0) (实空间) i0_real	1.4580e+09
I(0) 误差 (实空间) i0_real_error	2.7020e+07
Rg (倒空间) rg_reciprocal	58.60 Å
I(0) (倒空间) i0_reciprocal	1458000000.0000
解质量估计 total_estimate	0.7679
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	42.6 Å
偏度 Skewness skewness	0.059
峰度 Kurtosis kurtosis	-1.131
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	260500000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.692; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.904; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	MEMBRANE COPPER AMINE OXIDASE
分子量 formula_weight	81682.6 kDa
EC 编号 ec_number	1.4.3.6
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	23470

GGDGGEPSQLPHCPSVSPSAQPWTHPGQSQLFADLSREELTAVMRFLTQRLGPGLVDAAQARPSDNCVFSVELQLPPKAAALAHLDRGSPPPAREALAIVFFGRQPQPNVSELVVGPLPHPSYMRDVTVERHGGPLPYHRRPVLFQEYLDIDQMIFNRELPQASGLLHHCCFYKHRGRNLVTMTTAPRGLQSGDRATWFGLYYNISGAGFFLHHVGLELLVNHKALDPARWTIQKVFYQGRYYDSLAQLEAQFEAGLVNVVLIPDNGTGGSWSLKSPVPPGPAPPLQFYPQGPRFSVQGSRVASSLWTFSFGLGAFSGPRIFDVRFQGERLVYEISLQEALAIYGGNSPAAMTTRYVDGGFGMGKYTTPLTRGVDCPYLATYVDWHFLLESQAPKTIRDAFCVFEQNQGLPLRRHHSDLYSHYFGGLAETVLVVRSMSTLLNYDYVWDTVFHPSGAIEIRFYATGYISSAFLFGATGKYGNQVSEHTLGTVHTHSAHFKVDLDVAGLENWVWAEDMVFVPMAVPWSPEHQLQRLQVTRKLLEMEEQAAFLVGSATPRYLYLASNHSNKWGHPRGYRIQMLSFAGEPLPQNSSMARGFSWERYQLAVTQRKEEEPSSSSVFNQNDPWAPTVDFSDFINNETIAGKDLVAWVTAGFLHIPHAEDIPNTVTVGNGVGFFLRPYNFFDEDPSFYSADSIYFRGDQDAGACEVNPLACLPQAAACAPDLPAFSHGGFSHN

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	HOMO SAPIENS

Entity 2 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	570.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	894.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 6 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	8

Entity 8 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 9 non-polymer

描述 description	COPPER (II) ION
分子量 formula_weight	63.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 10 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 11 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	563

▼

6. 折叠分类 (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

结构域编号 domain_id	2c10A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2c10A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2c10A03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	98 — Beta-galactosidase; Chain A, domain 5
同源超家族 H-superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

结构域编号 domain_id	2c10B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2c10B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2c10B03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	98 — Beta-galactosidase; Chain A, domain 5
同源超家族 H-superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

结构域编号 domain_id	2c10C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2c10C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2c10C03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	98 — Beta-galactosidase; Chain A, domain 5
同源超家族 H-superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

结构域编号 domain_id	2c10D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2c10D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	40 —

结构域编号 domain_id	2c10D03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	70 — Distorted Sandwich
拓扑 Topology topology	98 — Beta-galactosidase; Chain A, domain 5
同源超家族 H-superfamily homologous superfamily	20 — Copper amine oxidase, catalytic domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	130.236 Å
晶胞边长 b length_b	130.236 Å
晶胞边长 c length_c	221.529 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 43
空间群编号 int_tables_number	78
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2040
R_work r_work	0.2040
R_free r_free	0.2520
