SAXSdb — 2c2a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SENSOR HISTIDINE KINASE

THERMOTOGA MARITIMA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ADENOSINE-5'-DIPHOSPHATE × 2 SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9WZV7_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–258； UniProt 233–489

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2c2a
Deposition date deposition_date	2005-09-27
Structure title title	Structure of the entire cytoplasmic portion of a sensor histidine kinase protein
Keywords keywords	HISTIDINE KINASE, PHOSPHOTRANSFER, PHOQ, SELENOMETHIONYL MAD, TWO-COMPONENT SYSTEMS, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2c2a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2c2a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

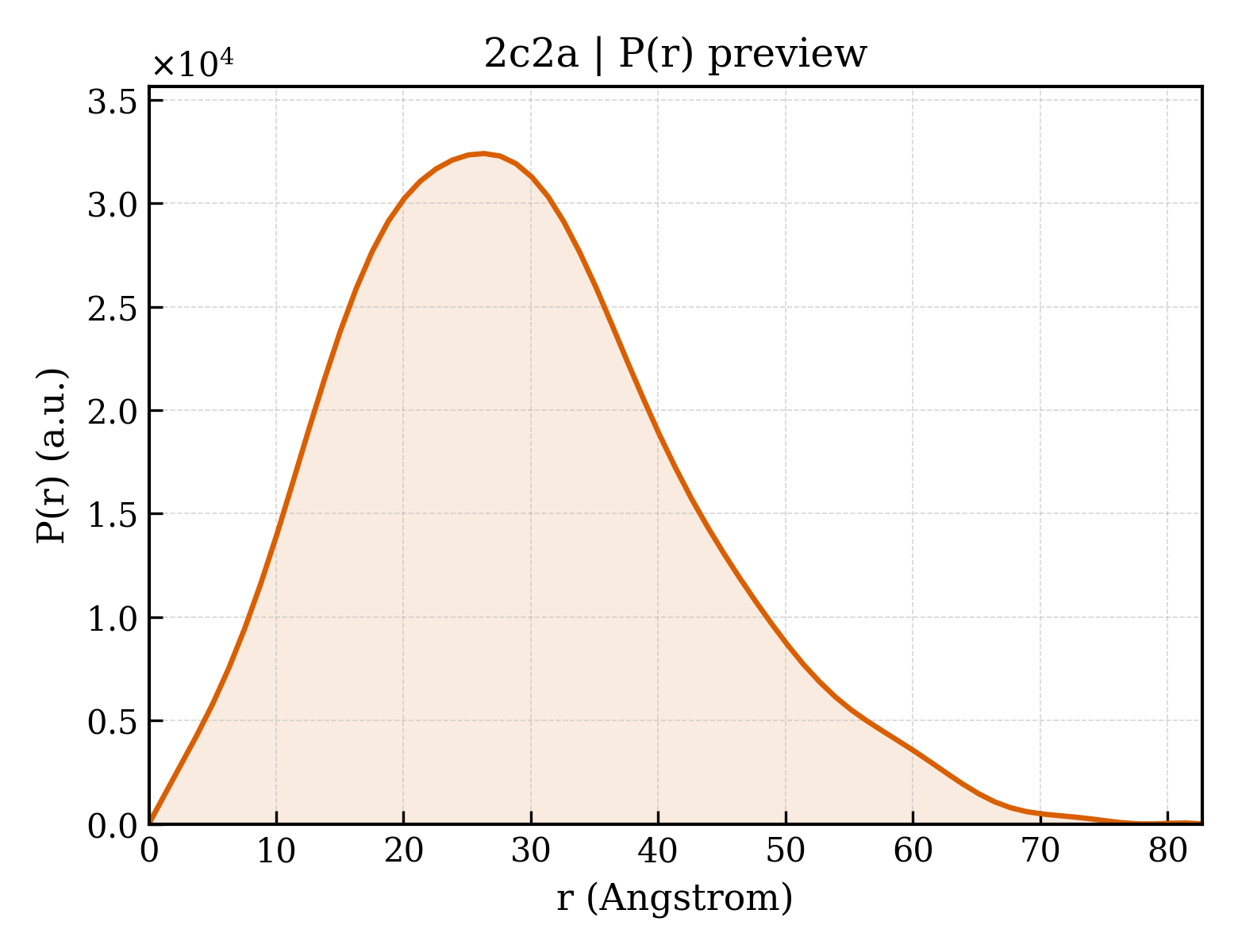

2c2a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.96 Å
Rg (electron density)	28.36 Å
Total Rg	29.03 Å
Atom count	3910
Residues	482
Excluded volume	69686 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2c2a__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	SENSOR HISTIDINE KINASE
Molecular weight formula_weight	29410.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2171

MENVTESKELERLKRIDRMKTEFIANISHELRTPLTAIKAYAETIYNSLGELDLSTLKEFLEVIIDQSNHLENLLNELLDFSRLERKSLQINREKVDLCDLVESAVNAIKEFASSHNVNVLFESNVPCPVEAYIDPTRIRQVLLNLLNNGVKYSKKDAPDKYVKVILDEKDGGVLIIVEDNGIGIPDHAKDRIFEQFYRVDSSLTYEVPGTGLGLAITKEIVELHGGRIWVESEVGKGSRFFVWIPKDRAGEDNRQDN

Source Source

Source organism organism	THERMOTOGA MARITIMA
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	179

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2c2aa1
Class class	a — All alpha proteins
Fold Fold fold	a.30 — ROP-like
Superfamily Superfamily superfamily	a.30.2 — Homodimeric domain of signal transducing histidine kinase
Family Family family	a.30.2.1 — Homodimeric domain of signal transducing histidine kinase

Domain ID domain_id	d2c2aa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.122 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase
Superfamily Superfamily superfamily	d.122.1 — ATPase domain of HSP90 chaperone/DNA topoisomerase II/histidine kinase
Family Family family	d.122.1.3 — Histidine kinase

CATH v4.4 (2 domains)

Domain ID domain_id	2c2aA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	130 — Signal transduction histidine kinase, dimerisation/phosphotransfer (DHp) domain

Domain ID domain_id	2c2aA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	565 — Heat Shock Protein 90
Homologous superfamily homologous superfamily	10 — Histidine kinase-like ATPase, C-terminal domain

▶

Unit-cell length a length_a	79.292 Å
Unit-cell length b length_b	162.082 Å
Unit-cell length c length_c	42.525 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2465
R_work r_work	0.2465
R_free r_free	0.2752
