SAXSdb — 2c5j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-SNARE AFFECTING A LATE GOLGI COMPARTMENT PROTEIN 1

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TLG1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–95； UniProt 1–95 Author chain B； PDBConstruct 1–95； UniProt 1–95

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2c5j
Deposition date deposition_date	2005-10-27
Structure title title	N-terminal domain of tlg1, domain-swapped dimer
Keywords keywords	SNARE, TRANSPORT, PROTEIN TRANSPORT, PHOSPHORYLATION; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2c5j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2c5j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

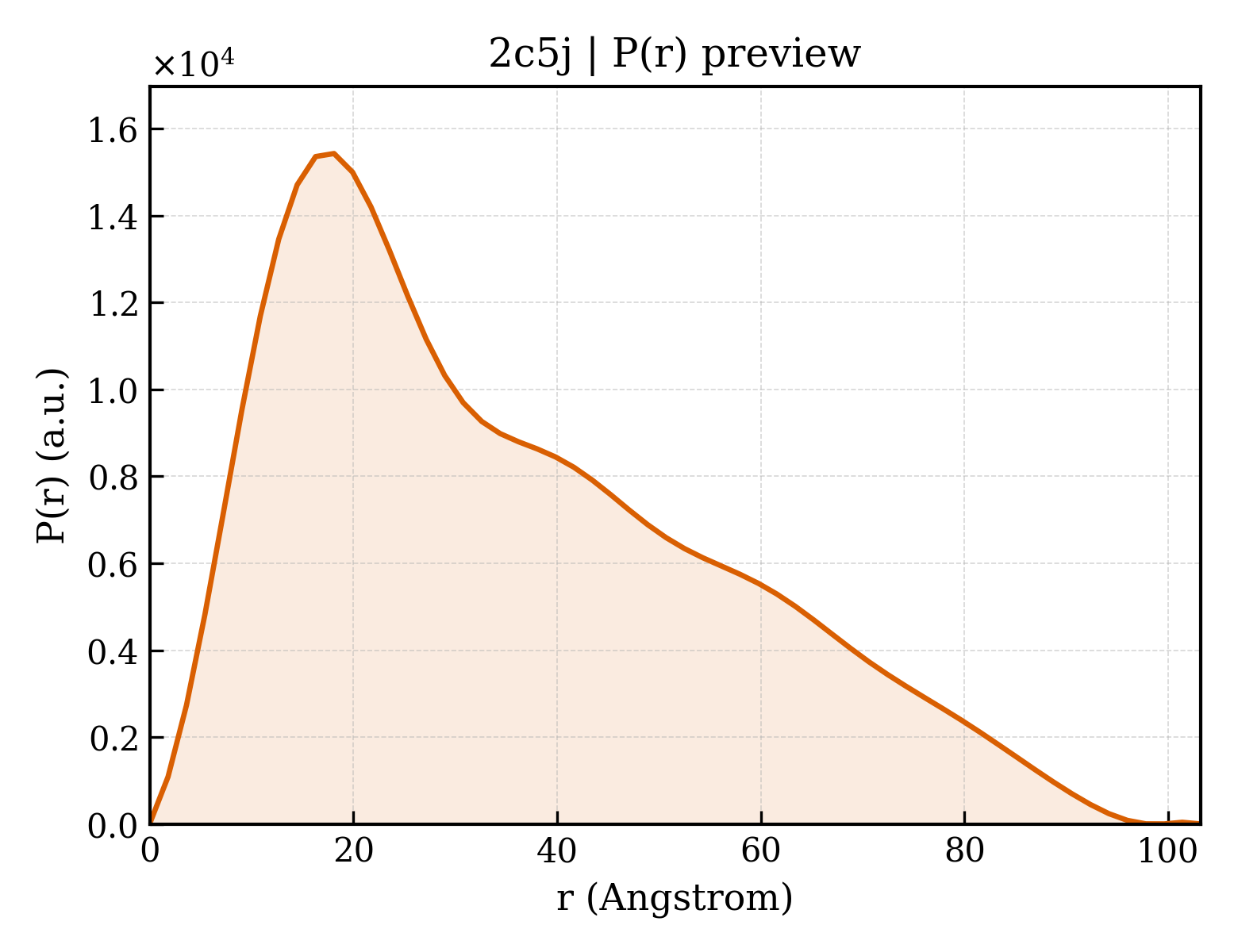

2c5j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.07 Å
Rg (electron density)	28.45 Å
Total Rg	28.36 Å
Atom count	1419
Residues	171
Excluded volume	24847 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2c5j__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2c5jA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	2c5jB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	90 —

▶

Unit-cell length a length_a	44.666 Å
Unit-cell length b length_b	46.104 Å
Unit-cell length c length_c	117.887 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	58.930 Å
R factor r_factor	0.2590
R_work r_work	0.2560
R_free r_free	0.3110

Description description	T-SNARE AFFECTING A LATE GOLGI COMPARTMENT PROTEIN 1
Molecular weight formula_weight	11244.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1494

N-terminal domain of tlg1, domain-swapped dimer

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-SNARE AFFECTING A LATE GOLGI COMPARTMENT PROTEIN 1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2c5j__assembly_1__model_1

2c5j__assembly_1__model_1 | I(q)

2c5j__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	SACCHAROMYCES CEREVISIAE
Common name common_name	;BAKER'S YEAST ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	ESCHERICHIA COLI

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	75
