2c6c

;membrane-bound glutamate carboxypeptidase II (GCPII) in complex with GPI-18431 (S)-2-(4-iodobenzylphosphonomethyl)-pentanedioic acid ;

Method: X-RAY DIFFRACTION D_max: 88.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

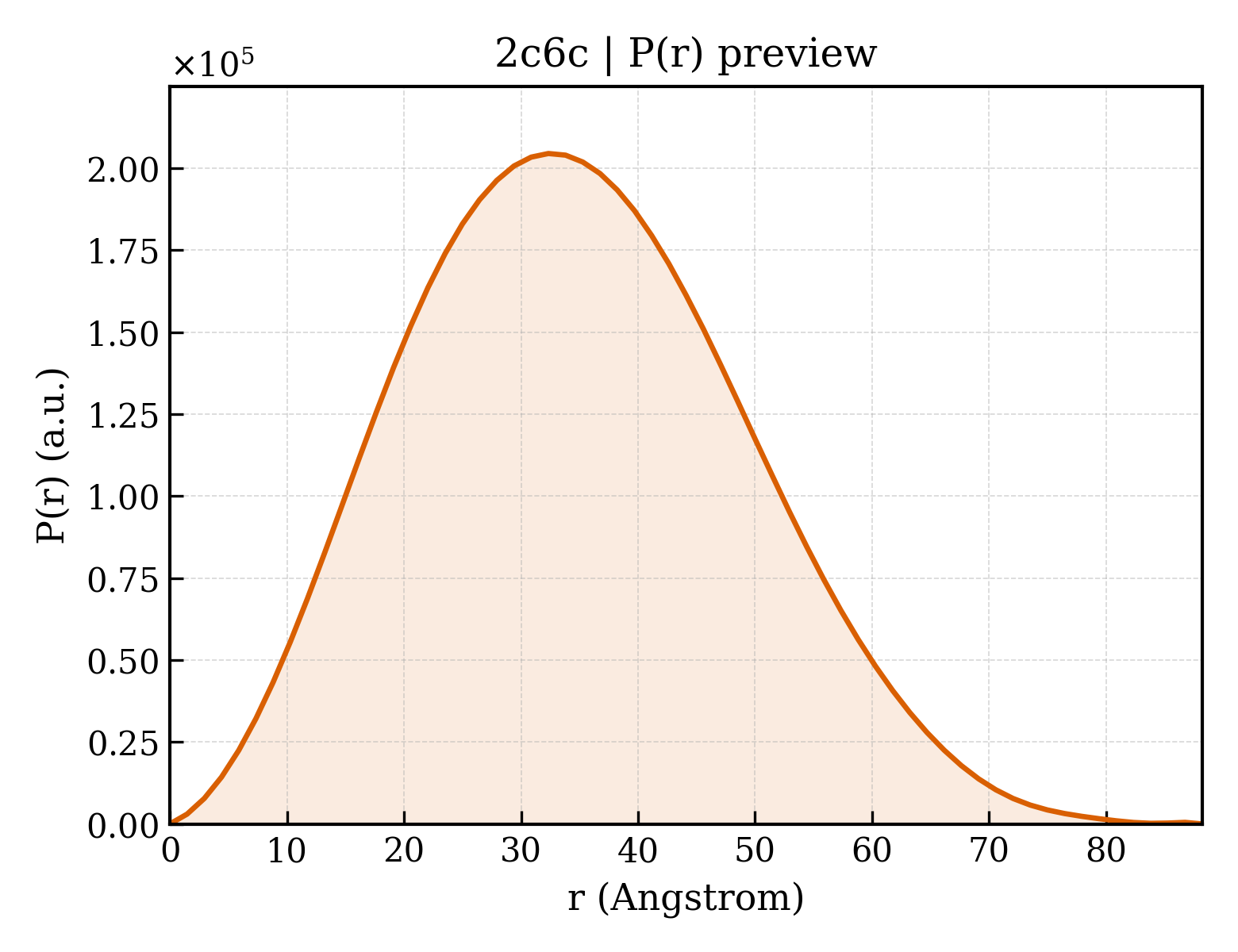

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2c6c
沉积日期 deposition_date	2005-11-09
结构标题 title	;membrane-bound glutamate carboxypeptidase II (GCPII) in complex with GPI-18431 (S)-2-(4-iodobenzylphosphonomethyl)-pentanedioic acid ;
关键词 keywords	;NAALADASE, NEURODEGENERATIVE DISEASE, PEPTIDASE, PROSTATE CANCER, PSMA, GLYCOPROTEIN, HYDROLASE, ALTERNATIVE SPLICING, ANTIGEN, CARBOXYPEPTIDASE, DIPEPTIDASE, METAL-BINDING, METALLOPROTEASE, MULTIFUNCTIONAL ENZYME, POLYMORPHISM, SIGNAL-ANCHOR, TRANSMEMBRANE, ZINC ;; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.63 Å
回转半径 Rg (电子) rg_electron	25.65 Å
零角强度 I(0) i0	96615500.00
分子量 molecular_weight	78268.0 kDa
排除体积 excluded_volume	98049 Å³
包络体积 envelope_volume	115260 Å³
水化壳体积 shell_volume	35905 Å³
包络直径 envelope_diameter	91.4 Å
壳层 Rg shell_rg	34.29 Å
包络 Rg envelope_rg	26.05 Å
形状 Rg shape_rg	25.63 Å
总 Rg total_rg	26.56 Å
总原子数 total_atoms	5517
残基数 n_residues	682
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	88.2 Å
Rg (实空间) rg_real	26.51 Å
Rg 误差 (实空间) rg_real_error	0.63 Å
I(0) (实空间) i0_real	9.6620e+07
I(0) 误差 (实空间) i0_real_error	1.5700e+06
Rg (倒空间) rg_reciprocal	26.55 Å
I(0) (倒空间) i0_reciprocal	96620000.0000
解质量估计 total_estimate	0.8834
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.3 Å
偏度 Skewness skewness	0.242
峰度 Kurtosis kurtosis	-0.355
角度范围 angular_range	— – 0.3000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24850000.0000
实空间数据点数 n_real_points	61
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.830; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.989

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	GLUTAMATE CARBOXYPEPTIDASE II
分子量 formula_weight	79614.8 kDa
EC 编号 ec_number	3.4.17.21
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5703

KSSNEATNITPKHNMKAFLDELKAENIKKFLYNFTQIPHLAGTEQNFQLAKQIQSQWKEFGLDSVELAHYDVLLSYPNKTHPNYISIINEDGNEIFNTSLFEPPPPGYENVSDIVPPFSAFSPQGMPEGDLVYVNYARTEDFFKLERDMKINCSGKIVIARYGKVFRGNKVKNAQLAGAKGVILYSDPADYFAPGVKSYPDGWNLPGGGVQRGNILNLNGAGDPLTPGYPANEYAYRRGIAEAVGLPSIPVHPIGYYDAQKLLEKMGGSAPPDSSWRGSLKVPYNVGPGFTGNFSTQKVKMHIHSTNEVTRIYNVIGTLRGAVEPDRYVILGGHRDSWVFGGIDPQSGAAVVHEIVRSFGTLKKEGWRPRRTILFASWDAEEFGLLGSTEWAEENSRLLQERGVAYINADSSIEGNYTLRVDCTPLMYSLVHNLTKELKSPDEGFEGKSLYESWTKKSPSPEFSGMPRISKLGSGNDFEVFFQRLGIASGRARYTKNWETNKFSGYPLYHSVYETYELVEKFYDPMFKYHLTVAQVRGGMVFELANSIVLPFDCRDYAVVLRKYADKIYSISMKHPQEMKTYSVSFDSLFSAVKNFTEIASKFSERLQDFDKSNPIVLRMMNDQLMFLERAFIDPLGLPDRPFYRHVIYAPSSHNKYAGESFPGIYDALFDIESKVDPSKAWGEVKRQIYVAAFTVQAAAETLSEVA

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	DROSOPHILA MELANOGASTER

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 3 branched

描述 description	;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 8 non-polymer

描述 description	(2S)-2-{[HYDROXY(4-IODOBENZYL)PHOSPHORYL]METHYL}PENTANEDIOIC ACID
分子量 formula_weight	426.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	186

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d2c6ca1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.48 — N-cbl like
超家族 Superfamily superfamily	a.48.2 — Transferrin receptor-like dimerisation domain
家族 Family family	a.48.2.1 — Transferrin receptor-like dimerisation domain

结构域编号 domain_id	d2c6ca2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
超家族 Superfamily superfamily	c.8.4 — PA domain
家族 Family family	c.8.4.1 — PA domain

结构域编号 domain_id	d2c6ca3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.56 — Phosphorylase/hydrolase-like
超家族 Superfamily superfamily	c.56.5 — Zn-dependent exopeptidases
家族 Family family	c.56.5.5 — FolH catalytic domain-like

CATH v4.4 (3 domains)

结构域编号 domain_id	2c6cA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	630 — Aminopeptidase
同源超家族 H-superfamily homologous superfamily	10 — Zn peptidases

结构域编号 domain_id	2c6cA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	30 — Glucose Oxidase; domain 1
同源超家族 H-superfamily homologous superfamily	30 —

结构域编号 domain_id	2c6cA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	930 — Transcription Elongation Factor S-II; Chain A
同源超家族 H-superfamily homologous superfamily	40 — Transferrin receptor-like, dimerisation domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	103.127 Å
晶胞边长 b length_b	131.189 Å
晶胞边长 c length_c	161.225 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	25.000 Å
R 因子 r_factor	0.1910
R_work r_work	0.1900
R_free r_free	0.2250
