HOMO SAPIENS
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q9P126_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–122； UniProt 100–221 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2c6u |
| Deposition date deposition_date | 2005-11-11 |
| Structure title title | Crystal structure of human CLEC-2 (CLEC1B) |
| Keywords keywords | LECTIN, CLEC-2, RHODOCYTIN, AGGRETIN, C-TYPE LECTIN-LIKE, PLATELETS, THROMBOSIS, CLEC1B; LECTIN |
| Experimental Method method | X-RAY DIFFRACTION |

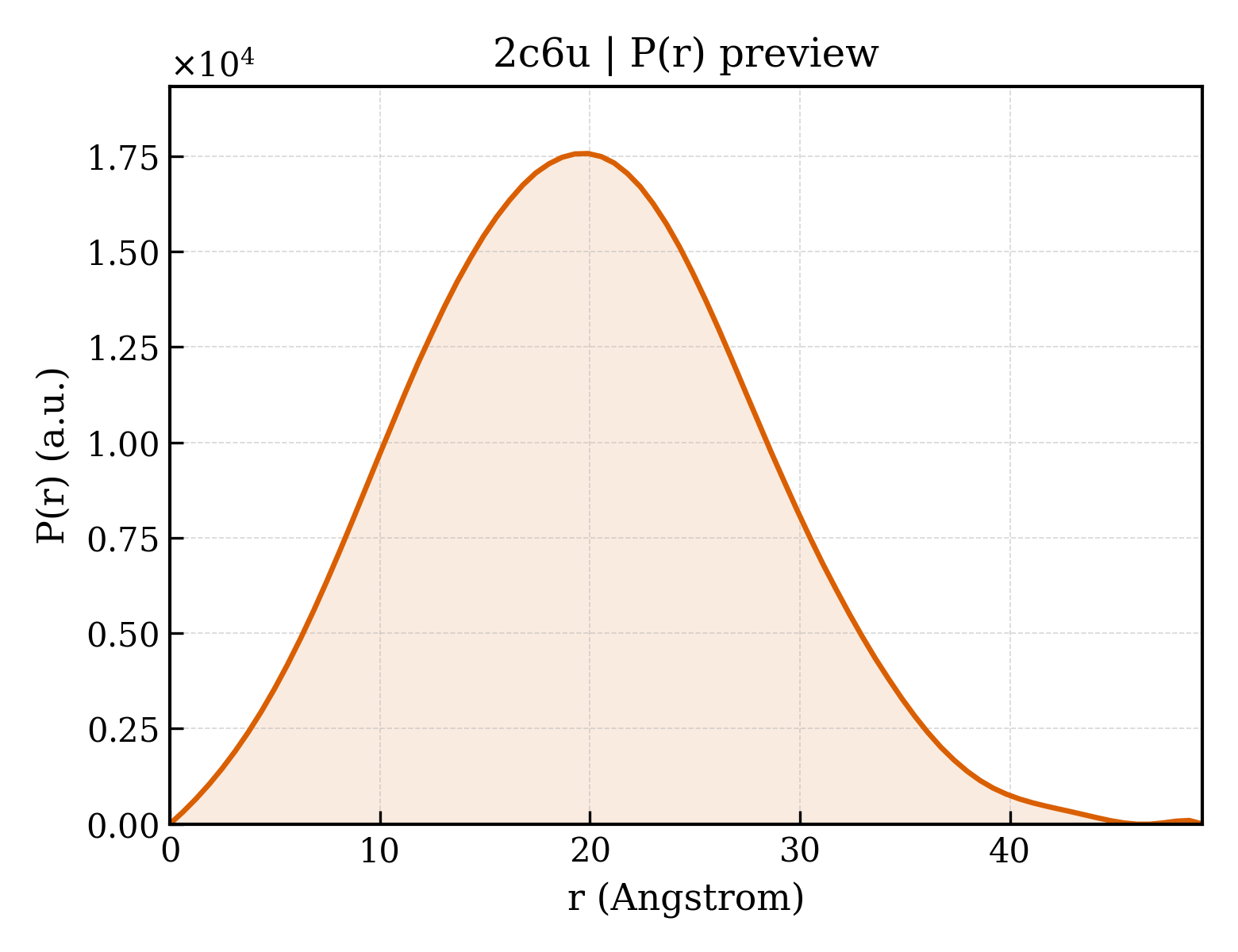

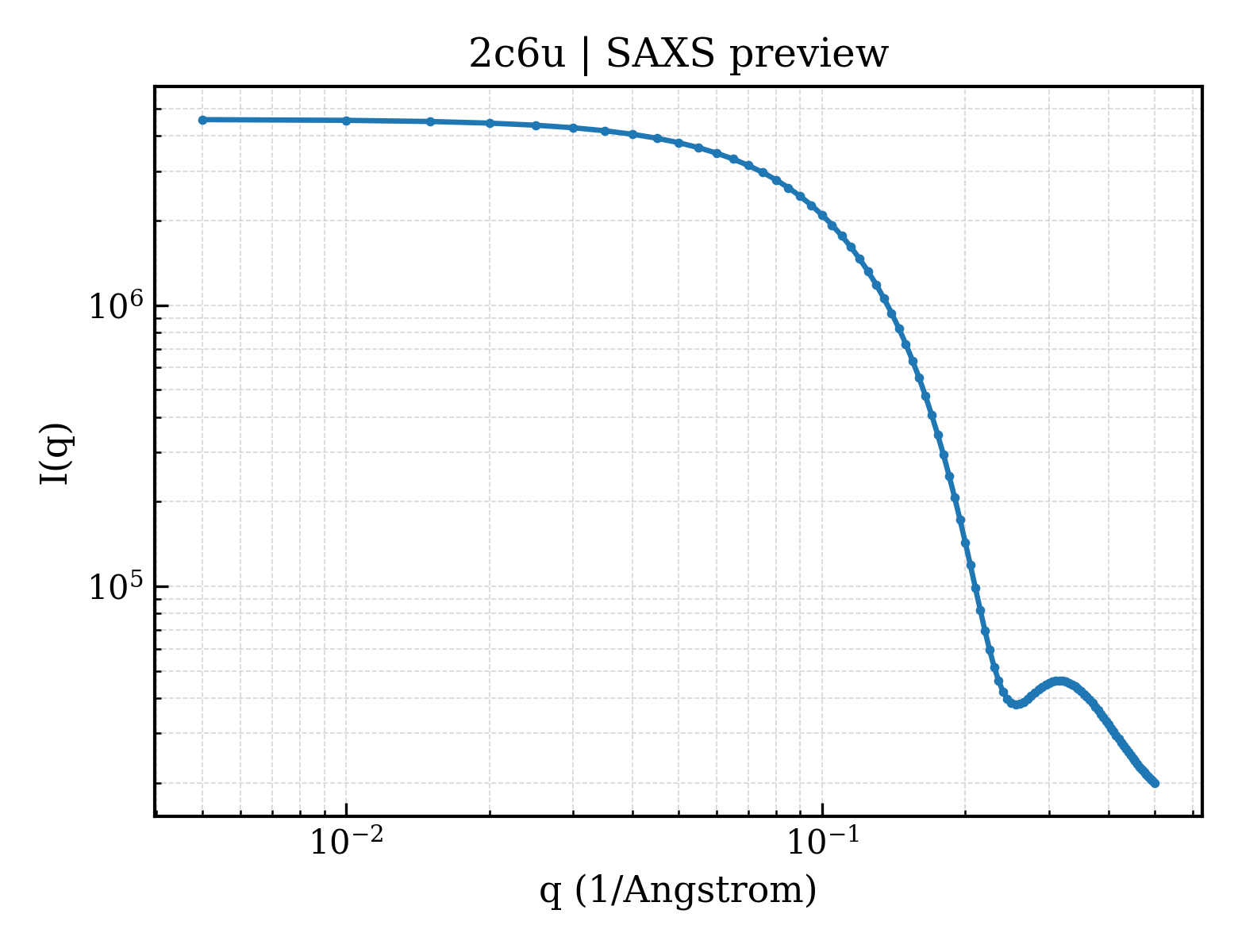

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.17 Å |
| Rg (electron density) | 13.74 Å |
| Total Rg | 14.98 Å |
| Atom count | 1021 |
| Residues | 122 |
| Excluded volume | 17863 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2c6ua_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.169 — C-type lectin-like |
| Superfamily Superfamily superfamily | d.169.1 — C-type lectin-like |
| Family Family family | d.169.1.0 — automated matches |
| Domain ID domain_id | 2c6uA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 100 — Mannose-Binding Protein A; Chain A |
| Homologous superfamily homologous superfamily | 10 — Mannose-Binding Protein A, subunit A |
