2c6x
Structure of Bacillus subtilis citrate synthase

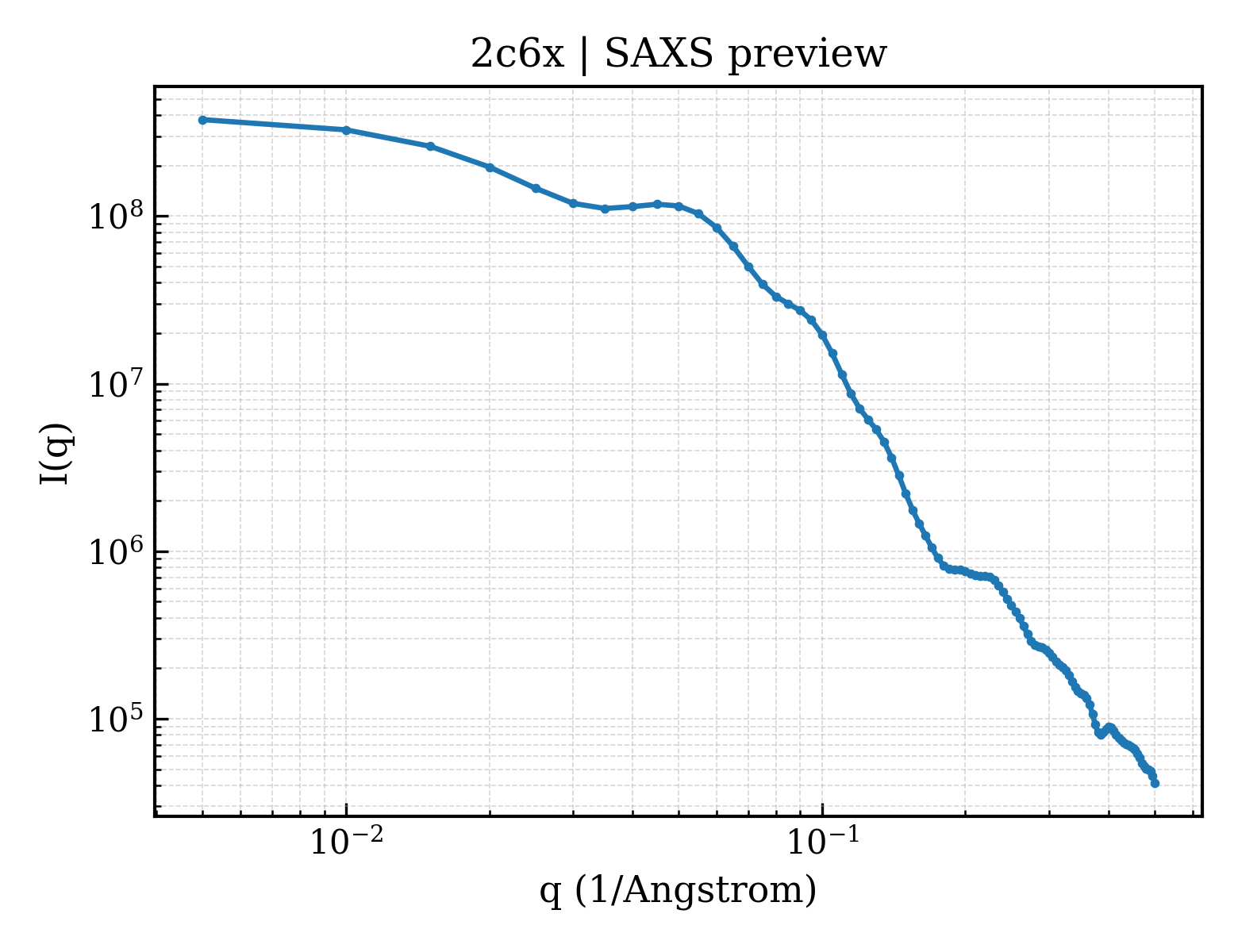

SAXS 散射曲线 SAXS Profile

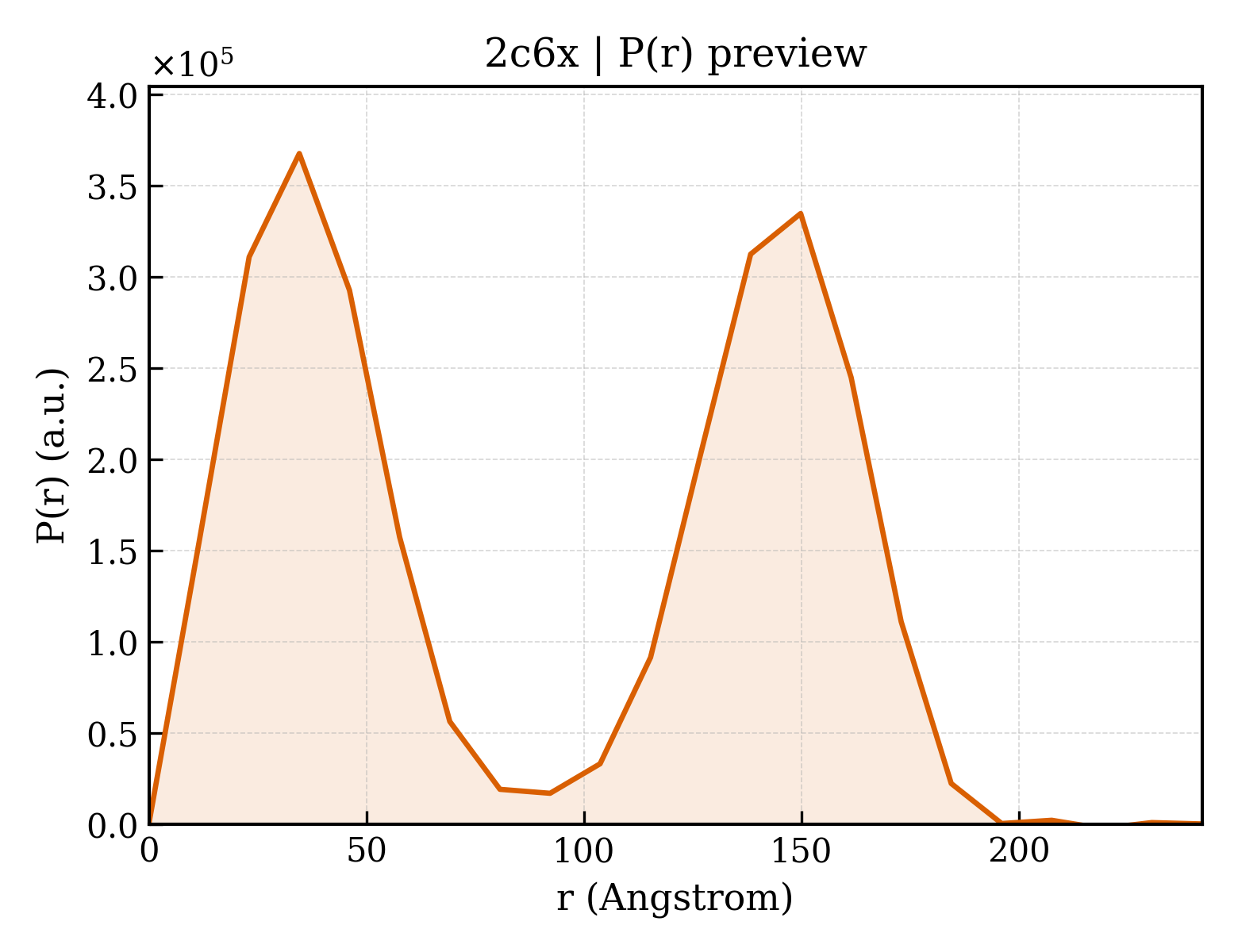

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2c6x |
| 沉积日期 deposition_date | 2005-11-14 |
| 结构标题 title | Structure of Bacillus subtilis citrate synthase |
| 关键词 keywords | TRICARBOXYLIC ACID CYCLE, TRANSFERASE, CITRATE SYNTHASE, ALLOSTERIC ENZYME, BACILLUS SUBTILIS, ENZYME THERMOSTABILITY; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 75.03 Å |
| 回转半径 Rg (电子) rg_electron | 75.37 Å |
| 零角强度 I(0) i0 | 395054000.00 |
| 分子量 molecular_weight | 166210.0 kDa |
| 排除体积 excluded_volume | 206840 ų |
| 包络体积 envelope_volume | 365440 ų |
| 水化壳体积 shell_volume | 39576 ų |
| 包络直径 envelope_diameter | 203.7 Å |
| 壳层 Rg shell_rg | 86.05 Å |
| 包络 Rg envelope_rg | 68.23 Å |
| 形状 Rg shape_rg | 75.39 Å |
| 总 Rg total_rg | 75.41 Å |
| 总原子数 total_atoms | 11672 |
| 残基数 n_residues | 1452 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 242.1 Å |
| Rg (实空间) rg_real | 75.49 Å |
| Rg 误差 (实空间) rg_real_error | 3.38 Å |
| I(0) (实空间) i0_real | 3.9510e+08 |
| I(0) 误差 (实空间) i0_real_error | 9.2390e+06 |
| Rg (倒空间) rg_reciprocal | 72.44 Å |
| I(0) (倒空间) i0_reciprocal | 392400000.0000 |
| 解质量估计 total_estimate | 0.5506 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 4 |
| 主峰位置 r_peak_primary | 34.6 Å |
| 偏度 Skewness skewness | 0.027 |
| 峰度 Kurtosis kurtosis | -1.684 |
| 角度范围 angular_range | — – 0.1050 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 5396000.0000 |
| 实空间数据点数 n_real_points | 22 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.000; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.155; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 8 domains
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 2c6xA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 580 — Citrate Synthase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Citrate Synthase, domain 1 |
| 结构域编号 domain_id | 2c6xA02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 230 — Cytochrome p450-Terp; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Cytochrome P450-Terp, domain 2 |
| 结构域编号 domain_id | 2c6xB01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 580 — Citrate Synthase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Citrate Synthase, domain 1 |
| 结构域编号 domain_id | 2c6xB02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 230 — Cytochrome p450-Terp; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Cytochrome P450-Terp, domain 2 |
| 结构域编号 domain_id | 2c6xC01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 580 — Citrate Synthase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Citrate Synthase, domain 1 |
| 结构域编号 domain_id | 2c6xC02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 230 — Cytochrome p450-Terp; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Cytochrome P450-Terp, domain 2 |
| 结构域编号 domain_id | 2c6xD01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 580 — Citrate Synthase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Citrate Synthase, domain 1 |
| 结构域编号 domain_id | 2c6xD02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 230 — Cytochrome p450-Terp; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Cytochrome P450-Terp, domain 2 |
