SAXSdb — 2c74

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

14-3-3 PROTEIN ETA

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–245 Chain B； UniProt 1–245	Not recorded	CONSENSUS PEPTIDE MODE 1 FOR 14-3-3 PROTEINS × 2 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.6；0.1M CITRATE PH 5.6, 20% ISOPROPANOL, 20% PEG4000	Resolution 2.70 Å R-free 0.291

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2C74	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2C63 14-3-3 Protein Eta (Human) Complexed to Peptide Deposited 2005-11-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.2M MGCL2, 0.1M HEPES PH 7.5, 25% PEG 3350	Resolution 2.15 Å R-free 0.248
2C63 14-3-3 Protein Eta (Human) Complexed to Peptide Deposited 2005-11-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–245（245 aa） Chain D 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.2M MGCL2, 0.1M HEPES PH 7.5, 25% PEG 3350	Resolution 2.15 Å R-free 0.248
7NMZ Structure of 14-3-3 eta in complex with Nedd4-2(335-455) containing two 14-3-3 binding motifs Ser342 and Ser448 Deposited 2021-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain AA 1–234（234 aa） Chain BA 1–234（234 aa）	Mutation：S235Stop Mutation：S235Stop	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 0.03M of each NPS (sodium nitrate, sodium phosphate dibasic, ammonium sulfate), 0.1Mbicine/Trizma base pH 8.5, 30% sacharose	Resolution 2.30 Å R-free 0.235
9R2I Cryo-EM structure of the complex CDK16:CCNY:14-3-3 Deposited 2025-04-30	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–246（246 aa） Chain B 1–246（246 aa）	Not recorded	MG MAGNESIUM ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES buffer (pH 8.0), 150 mM NaCl, 4 mM MgCl2, 0.5 mM TCEP and 7.8 mM CHAPSO and supplemented with 2 mM ATP-gamma-S cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9R2N Cryo-EM structure of the complex CCNY:14-3-3 Deposited 2025-04-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–246（246 aa） Chain B 1–246（246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES buffer (pH 8.0), 150 mM NaCl, 4 mM MgCl2, 0.5 mM TCEP and 7.8 mM CHAPSO cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.83 Å

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	1433F_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–247； UniProt 1–245 Author chain B； PDBConstruct 3–247； UniProt 1–245

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2c74
Deposition date deposition_date	2005-11-17
Structure title title	14-3-3 Protein Eta (Human) Complexed to Peptide
Keywords keywords	SIGNALING PROTEIN-PEPTIDE COMPLEX, 14-3-3, PHOSPHOSERINE, PHOSPHORYLATION; SIGNALING PROTEIN/PEPTIDE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.49 Å
Radius of gyration Rg (electron density) rg_electron	26.78 Å
Forward intensity I(0) i0	46118900.00
Molecular weight molecular_weight	52179.0 kDa
Excluded volume excluded_volume	65084 Å³
Envelope volume envelope_volume	83912 Å³
Hydration-shell volume shell_volume	26319 Å³
Envelope diameter envelope_diameter	87.8 Å
Shell Rg shell_rg	33.78 Å
Envelope Rg envelope_rg	26.37 Å
Shape Rg shape_rg	26.82 Å
Total Rg total_rg	27.46 Å
Total atoms total_atoms	3669
Residues n_residues	477
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

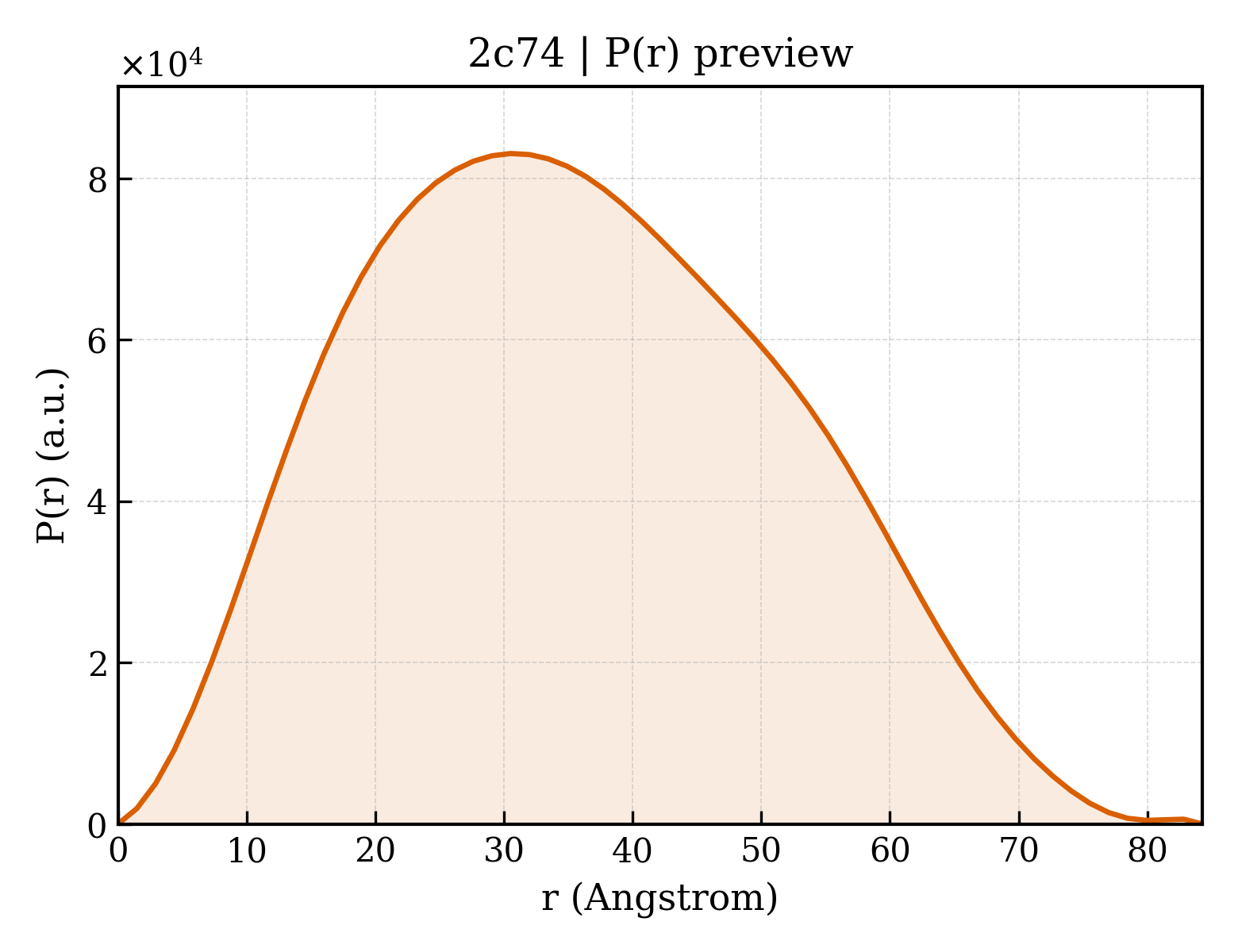

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.3 Å
Rg (real space) rg_real	27.46 Å
Rg uncertainty (real space) rg_real_error	0.66 Å
I(0) (real space) i0_real	4.6120e+07
I(0) uncertainty (real space) i0_real_error	7.6950e+05
Rg (reciprocal space) rg_reciprocal	27.47 Å
I(0) (reciprocal space) i0_reciprocal	46120000.0000
Solution quality estimate total_estimate	0.9145
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.5 Å
Skewness Skewness skewness	0.209
Kurtosis Kurtosis kurtosis	-0.669
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6029000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.980; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.956

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	14-3-3 PROTEIN ETA
Molecular weight formula_weight	28338.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3672

SMGDREQLLQRARLAEQAERYDDMASAMKAVTELNEPLSNEDRNLLSVAYKNVVGARRSSWRVISSIEQKTMADGNEKKLEKVKAYREKIEKELETVCNDVLSLLDKFLIKNCNDFQYESKVFYLKMKGDYYRYLAEVASGEKKNSVVEASEAAYKEAFEISKEQMQPTHPIRLGLALNFSVFYYEIQNAPEQACLLAKQAFDDAIAELDTLNEDSYKDSTLIMQLLRDNLTLWTSDQQDEEAGEGN

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 2 Entity 2 polymer

Description description	CONSENSUS PEPTIDE MODE 1 FOR 14-3-3 PROTEINS
Molecular weight formula_weight	953.0 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,Q

RRQRSAP

Entity 3 Entity 3 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2c74a_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.7 — 14-3-3 protein
Family Family family	a.118.7.1 — 14-3-3 protein

Domain ID domain_id	d2c74b_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.7 — 14-3-3 protein
Family Family family	a.118.7.1 — 14-3-3 protein

CATH v4.4 (2 domains)

Domain ID domain_id	2c74A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

Domain ID domain_id	2c74B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	190 — Delta-Endotoxin; domain 1
Homologous superfamily homologous superfamily	20 — 14-3-3 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	75.731 Å
Unit-cell length b length_b	75.360 Å
Unit-cell length c length_c	113.529 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	62.990 Å
R factor r_factor	0.2240
R_work r_work	0.2200
R_free r_free	0.2910

fit	/app/data/saxs_computation/c7/2c74/2c74.fit
pddf	/app/data/pr_computation/c7/2c74/2c74.pr.out
profile	/app/data/saxs_computation/c7/2c74/2c74.dat
