2c7f
The Structure of a family 51 arabinofuranosidase, Araf51, from Clostridium thermocellum in complex with 1,5-alpha-L-Arabinotriose.

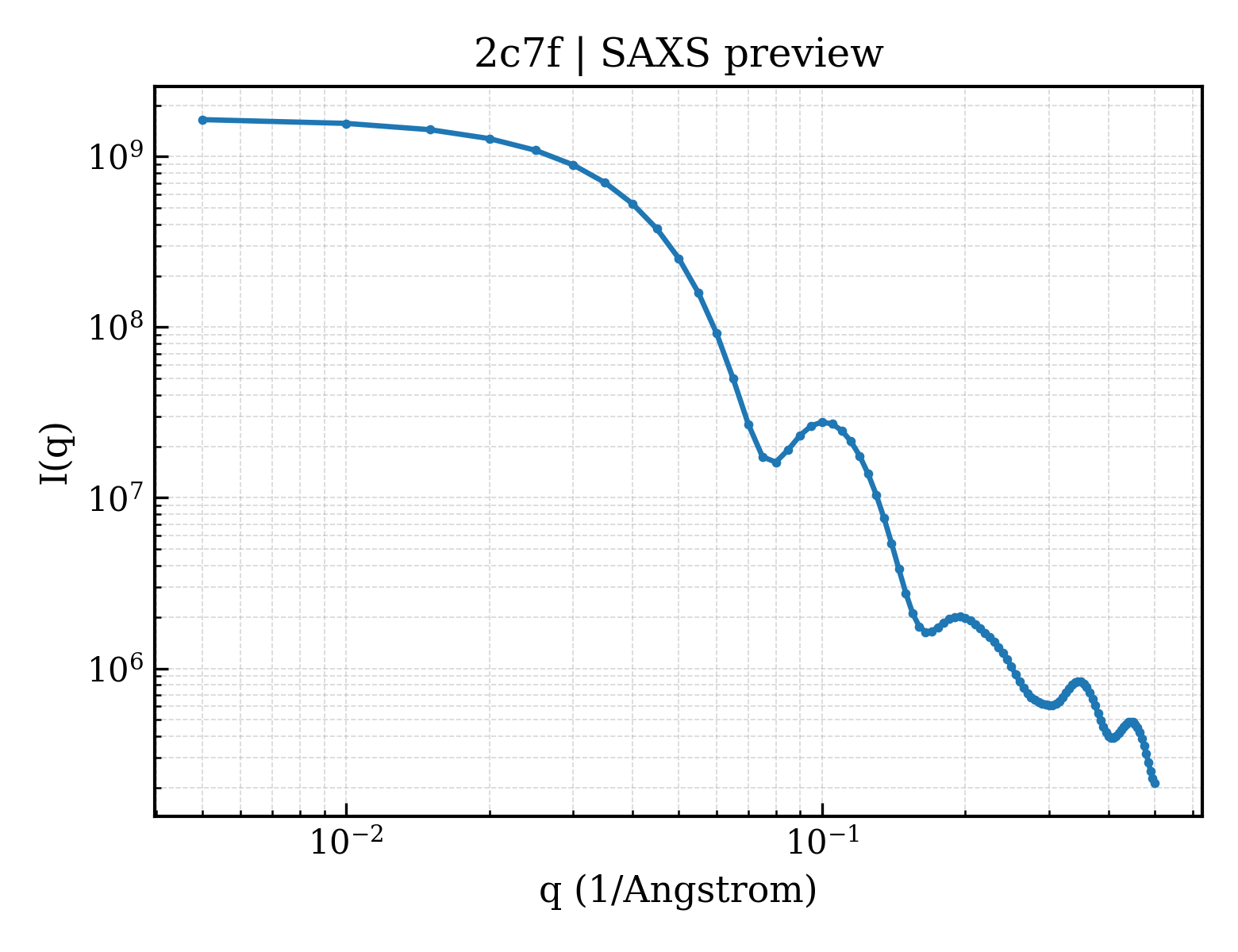

SAXS 散射曲线 SAXS Profile

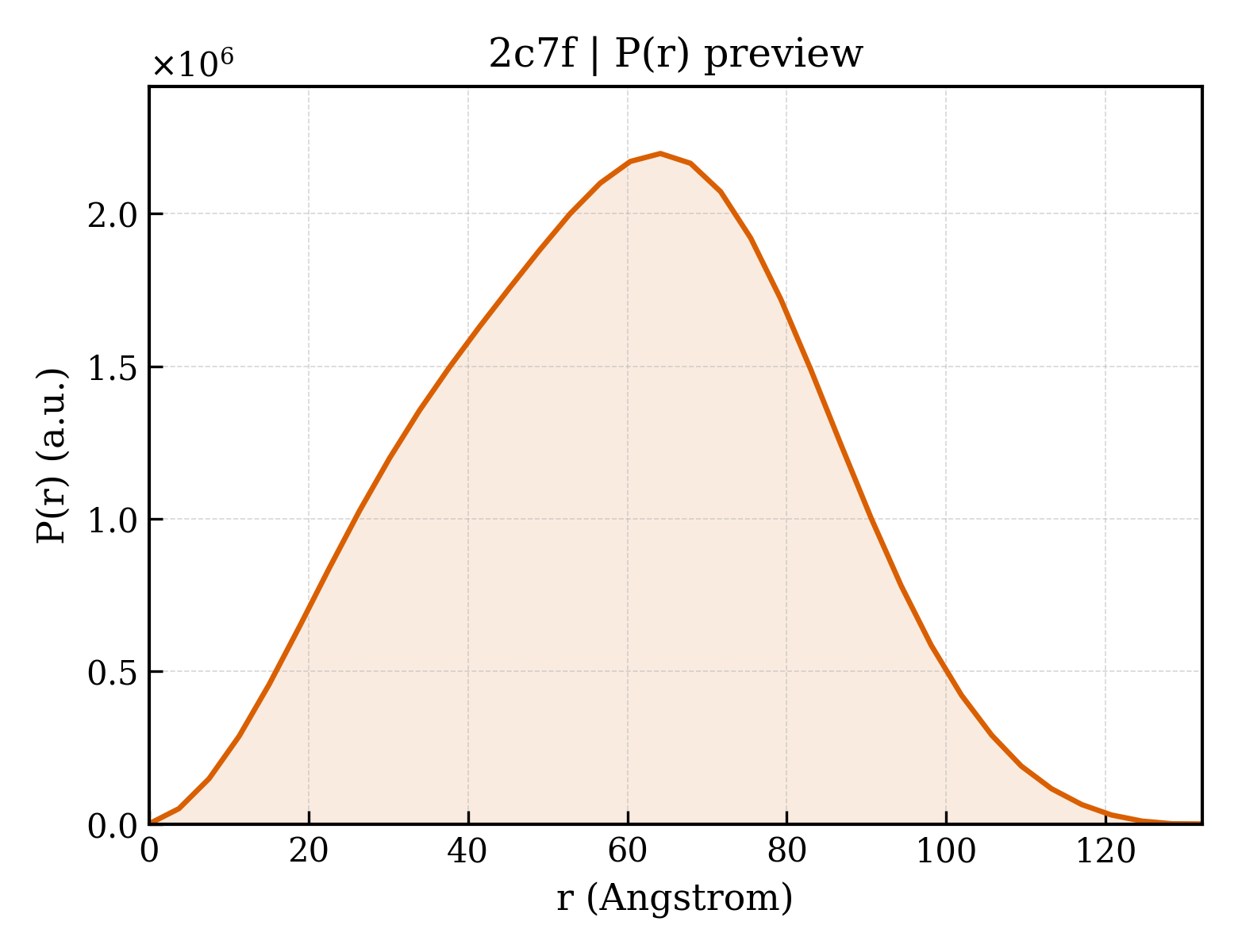

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2c7f |
| 沉积日期 deposition_date | 2005-11-23 |
| 结构标题 title | The Structure of a family 51 arabinofuranosidase, Araf51, from Clostridium thermocellum in complex with 1,5-alpha-L-Arabinotriose. |
| 关键词 keywords | ARABINOFURANOSIDASE, GLYCOSIDASE, XYLAN, ARABINAN, HYDROLASE; HYDROLASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 45.22 Å |
| 回转半径 Rg (电子) rg_electron | 44.37 Å |
| 零角强度 I(0) i0 | 1676010000.00 |
| 分子量 molecular_weight | 339750.0 kDa |
| 排除体积 excluded_volume | 424110 ų |
| 包络体积 envelope_volume | 545370 ų |
| 水化壳体积 shell_volume | 95445 ų |
| 包络直径 envelope_diameter | 135.1 Å |
| 壳层 Rg shell_rg | 54.58 Å |
| 包络 Rg envelope_rg | 43.84 Å |
| 形状 Rg shape_rg | 44.38 Å |
| 总 Rg total_rg | 44.67 Å |
| 总原子数 total_atoms | 23920 |
| 残基数 n_residues | 2976 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 132.1 Å |
| Rg (实空间) rg_real | 44.84 Å |
| Rg 误差 (实空间) rg_real_error | 0.50 Å |
| I(0) (实空间) i0_real | 1.6760e+09 |
| I(0) 误差 (实空间) i0_real_error | 2.4090e+07 |
| Rg (倒空间) rg_reciprocal | 45.22 Å |
| I(0) (倒空间) i0_reciprocal | 1677000000.0000 |
| 解质量估计 total_estimate | 0.8728 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 64.2 Å |
| 偏度 Skewness skewness | -0.013 |
| 峰度 Kurtosis kurtosis | -0.545 |
| 角度范围 angular_range | — – 0.1750 Å−1 |
| 当前正则化参数 α current_alpha | 0.0001 |
| 最高正则化参数 α highest_alpha | 608000000.0000 |
| 实空间数据点数 n_real_points | 36 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.568 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 24 domains
SCOP 2.08 (12 domains)
| 结构域编号 domain_id | d2c7fa1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2c7fa2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2c7fb1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2c7fb2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2c7fc1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2c7fc2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2c7fd1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2c7fd2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2c7fe1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2c7fe2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
| 结构域编号 domain_id | d2c7ff1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.71 — Glycosyl hydrolase domain |
| 超家族 Superfamily superfamily | b.71.1 — Glycosyl hydrolase domain |
| 家族 Family family | b.71.1.2 — Composite domain of glycosyl hydrolase families 5, 30, 39 and 51 |
| 结构域编号 domain_id | d2c7ff2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.8 — (Trans)glycosidases |
| 家族 Family family | c.1.8.3 — beta-glycanases |
CATH v4.4 (12 domains)
| 结构域编号 domain_id | 2c7fA01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1180 — Golgi alpha-mannosidase II |
| 结构域编号 domain_id | 2c7fA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2c7fB01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1180 — Golgi alpha-mannosidase II |
| 结构域编号 domain_id | 2c7fB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2c7fC01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1180 — Golgi alpha-mannosidase II |
| 结构域编号 domain_id | 2c7fC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2c7fD01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1180 — Golgi alpha-mannosidase II |
| 结构域编号 domain_id | 2c7fD02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2c7fE01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1180 — Golgi alpha-mannosidase II |
| 结构域编号 domain_id | 2c7fE02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
| 结构域编号 domain_id | 2c7fF01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 60 — Sandwich |
| 拓扑 Topology topology | 40 — Immunoglobulin-like |
| 同源超家族 H-superfamily homologous superfamily | 1180 — Golgi alpha-mannosidase II |
| 结构域编号 domain_id | 2c7fF02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 80 — Glycosidases |
