2c9d
;Lumazine Synthase from Mycobacterium tuberculosis Bound to 3-(1,3,7- TRIHYDRO-9-D-RIBITYL-2,6,8-PURINETRIONE-7-YL)HEXANE 1-PHOSPHATE ;

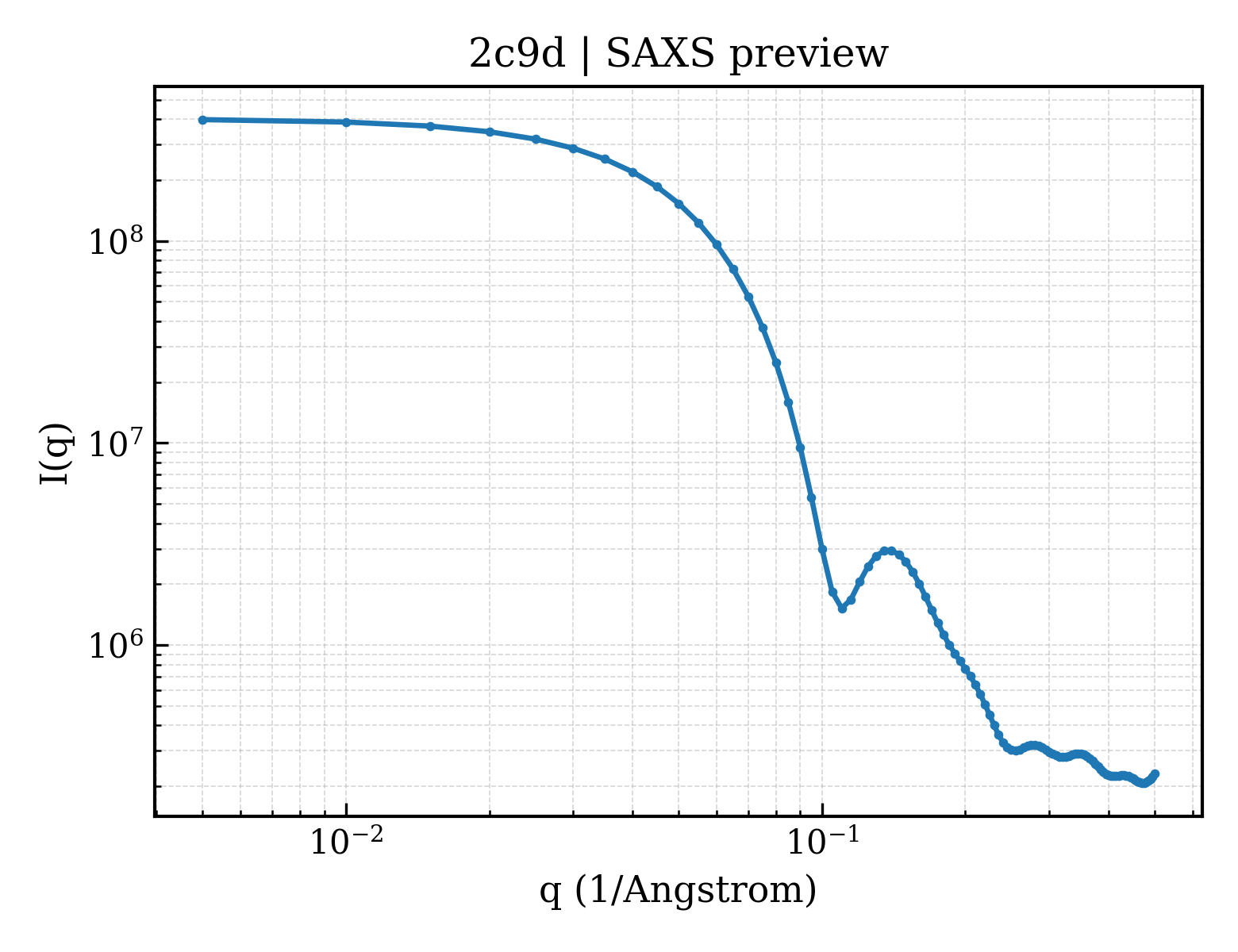

SAXS 散射曲线 SAXS Profile

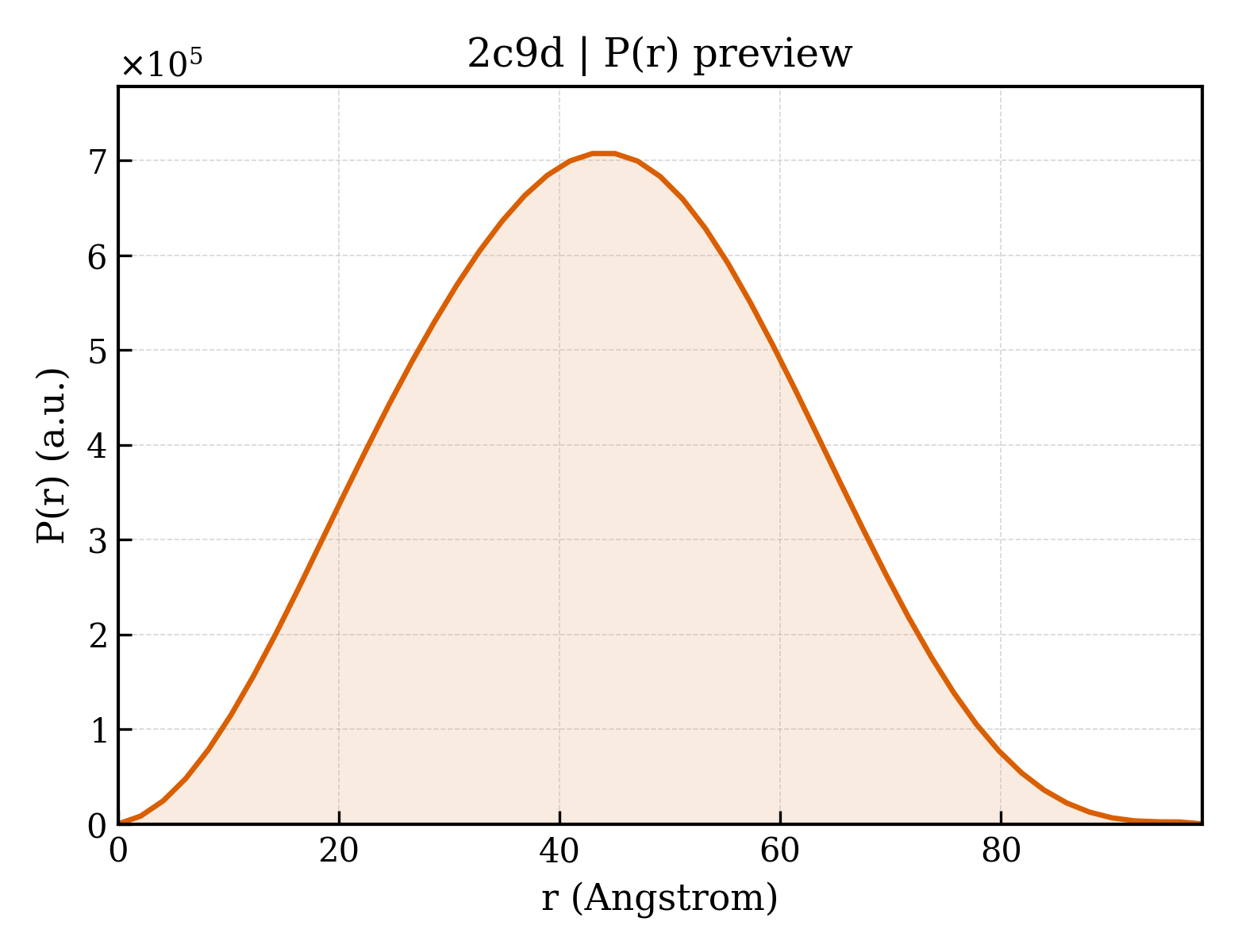

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2c9d |
| 沉积日期 deposition_date | 2005-12-09 |
| 结构标题 title | ;Lumazine Synthase from Mycobacterium tuberculosis Bound to 3-(1,3,7- TRIHYDRO-9-D-RIBITYL-2,6,8-PURINETRIONE-7-YL)HEXANE 1-PHOSPHATE ; |
| 关键词 keywords | TRANSFERASE, RIBOFLAVIN BIOSYNTHESIS, MYCOBACTERIUM TUBERCULOSIS, LUMAZINE SYNTHASE, INHIBITOR BINDING; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 33.28 Å |
| 回转半径 Rg (电子) rg_electron | 32.22 Å |
| 零角强度 I(0) i0 | 401659000.00 |
| 分子量 molecular_weight | 156690.0 kDa |
| 排除体积 excluded_volume | 194640 ų |
| 包络体积 envelope_volume | 246350 ų |
| 水化壳体积 shell_volume | 60030 ų |
| 包络直径 envelope_diameter | 105.4 Å |
| 壳层 Rg shell_rg | 41.80 Å |
| 包络 Rg envelope_rg | 31.90 Å |
| 形状 Rg shape_rg | 32.22 Å |
| 总 Rg total_rg | 32.91 Å |
| 总原子数 total_atoms | 10951 |
| 残基数 n_residues | 1466 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 98.2 Å |
| Rg (实空间) rg_real | 33.05 Å |
| Rg 误差 (实空间) rg_real_error | 0.38 Å |
| I(0) (实空间) i0_real | 4.0170e+08 |
| I(0) 误差 (实空间) i0_real_error | 5.9950e+06 |
| Rg (倒空间) rg_reciprocal | 33.19 Å |
| I(0) (倒空间) i0_reciprocal | 401700000.0000 |
| 解质量估计 total_estimate | 0.9013 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 0 |
| 主峰位置 r_peak_primary | — Å |
| 偏度 Skewness skewness | 0.060 |
| 峰度 Kurtosis kurtosis | -0.522 |
| 角度范围 angular_range | — – 0.2400 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 154600000.0000 |
| 实空间数据点数 n_real_points | 49 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.963; Smooth: 0.923 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 10 domains
CATH v4.4 (10 domains)
| 结构域编号 domain_id | 2c9dA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dC00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dD00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dE00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dF00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dG00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dH00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dI00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
| 结构域编号 domain_id | 2c9dJ00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 960 — Lumazine/riboflavin synthase |
