2c9n

Structure of the Epstein-Barr virus ZEBRA protein at approximately 3. 5 Angstrom resolution

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BZLF1 TRANS-ACTIVATOR PROTEIN

HUMAN HERPESVIRUS 4

UniProt P03206

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein–DNA Homooligomer Protein 2 DNA 2 ;5'-D(*CP*AP*CP*TP*GP*AP*CP*TP*CP*AP *T)-3' ; × 1 ;5'-D(*CP*AP*TP*GP*AP*GP*TP*CP*AP*GP *T)-3' ; × 1 Consistent with all polymers

Other States of the Same Protein in the Database

Monomer

None

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1zsd 2axf 2axg 2c9l 2c9n 3kww 3kxf 3kxf 3kxf 3kxf 3spv 5szx

14 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name BZLF1_EBV
Isoform —
PDB entities 3
Chains and sequence ranges Author chain Y； PDBConstruct 2–63； UniProt 175–236 Author chain Z； PDBConstruct 2–63； UniProt 175–236

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2c9n
Deposition date deposition_date2005-12-13
Structure title titleStructure of the Epstein-Barr virus ZEBRA protein at approximately 3. 5 Angstrom resolution
Keywords keywords;VIRAL PROTEIN, EPSTEIN-BARR VIRUS, EBV, ZEBRA, BZLF1, ZTA, Z, LYTIC CYCLE ACTIVATION, BZIP PROTEIN, VIRAL PROTEIN DNA-BINDING, NUCLEAR PROTEIN, TRANSCRIPTION REGULATION ;; VIRAL PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2c9n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

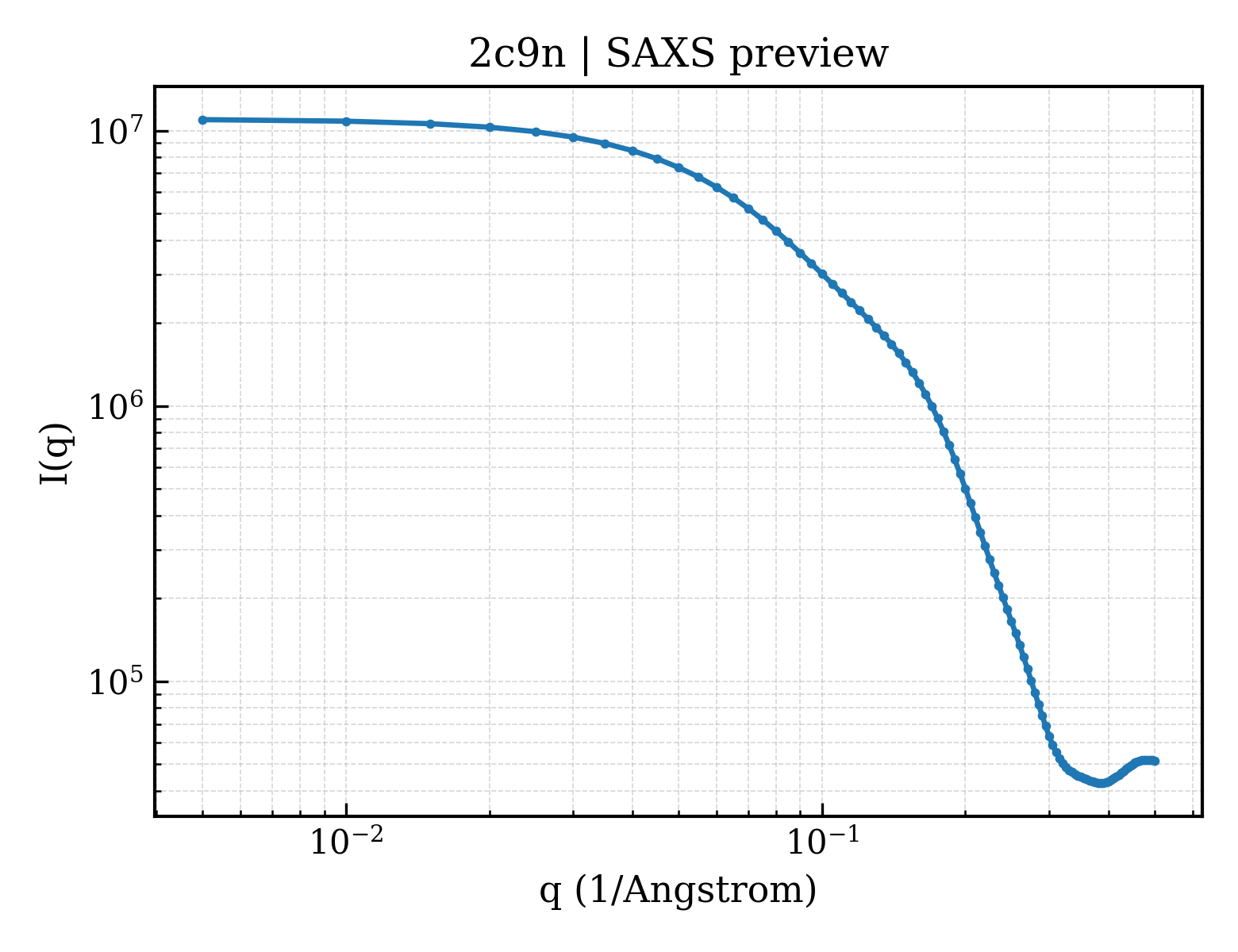

2c9n__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2c9n__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）22.13 Å
Rg (electron density)22.51 Å
Total Rg23.21 Å
Atom count1414
Residues140
Excluded volume23883 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2c9n__assembly_1__model_1 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd2c9ny1
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.3 — Leucine zipper domain
Family Family familyh.1.3.1 — Leucine zipper domain
Domain ID domain_idd2c9nz1
Class classh — Coiled coil proteins
Fold Fold foldh.1 — Parallel coiled-coil
Superfamily Superfamily superfamilyh.1.3 — Leucine zipper domain
Family Family familyh.1.3.1 — Leucine zipper domain

CATH v4.4 (2 domains)

Domain ID domain_id2c9nY00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily170 —
Domain ID domain_id2c9nZ00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily170 —
▶
