2cel
ACTIVE-SITE MUTANT E212Q DETERMINED AT PH 6.0 WITH NO LIGAND BOUND IN THE ACTIVE SITE
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2cel |
| 沉积日期 deposition_date | 1996-08-24 |
| 结构标题 title | ACTIVE-SITE MUTANT E212Q DETERMINED AT PH 6.0 WITH NO LIGAND BOUND IN THE ACTIVE SITE |
| 关键词 keywords | CELLULOSE DEGRADATION, HYDROLASE, GLYCOSIDASE, GLYCOPROTEIN; HYDROLASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 45.03 Å |
| 回转半径 Rg (电子) rg_electron | 45.21 Å |
| 零角强度 I(0) i0 | 145786000.00 |
| 分子量 molecular_weight | 92530.0 kDa |
| 排除体积 excluded_volume | 112290 ų |
| 包络体积 envelope_volume | 152500 ų |
| 水化壳体积 shell_volume | 27681 ų |
| 包络直径 envelope_diameter | 143.6 Å |
| 壳层 Rg shell_rg | 51.51 Å |
| 包络 Rg envelope_rg | 43.55 Å |
| 形状 Rg shape_rg | 45.20 Å |
| 总 Rg total_rg | 45.48 Å |
| 总原子数 total_atoms | 6478 |
| 残基数 n_residues | 866 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

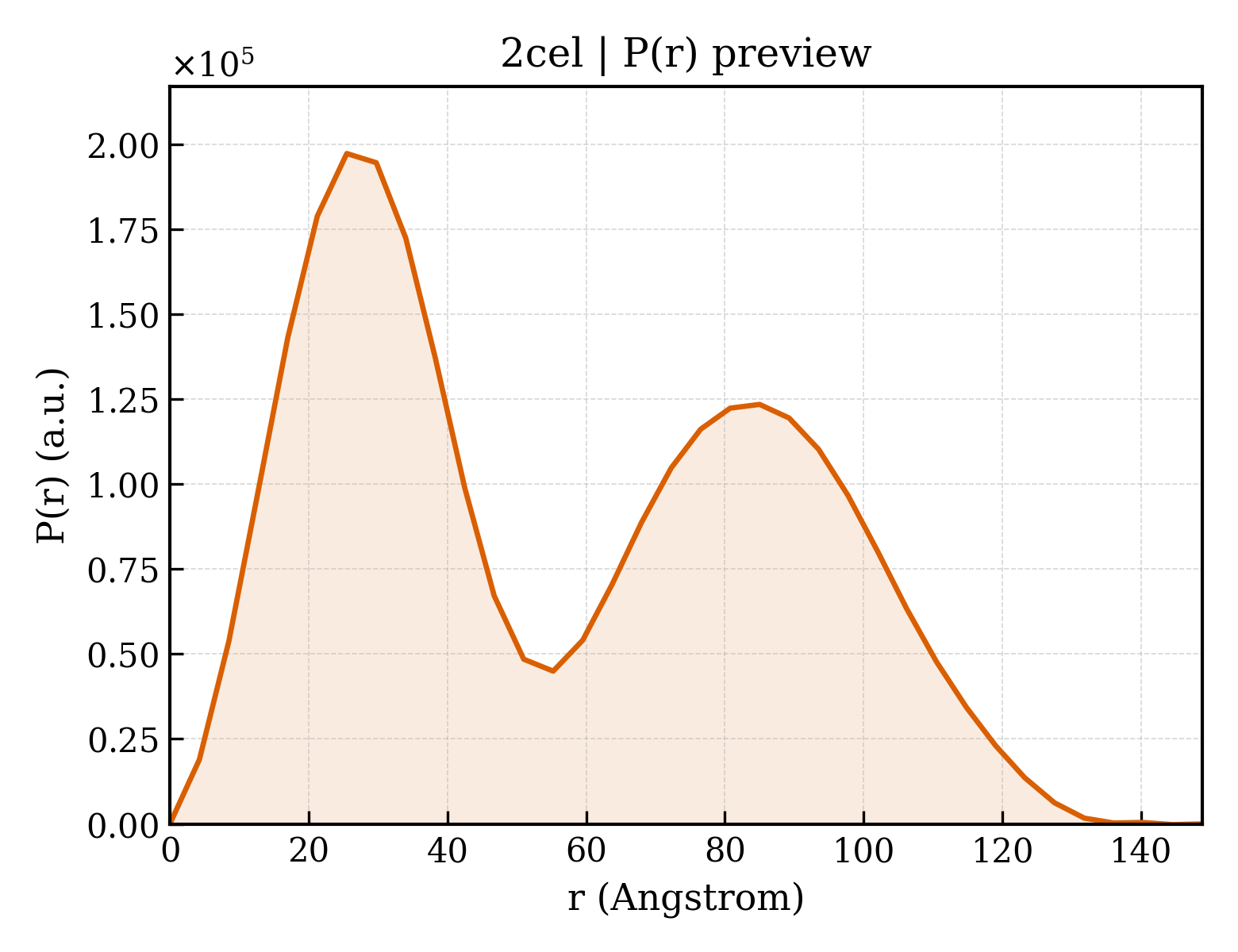

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 148.8 Å |
| Rg (实空间) rg_real | 45.55 Å |
| Rg 误差 (实空间) rg_real_error | 2.22 Å |
| I(0) (实空间) i0_real | 1.4580e+08 |
| I(0) 误差 (实空间) i0_real_error | 3.2340e+06 |
| Rg (倒空间) rg_reciprocal | 45.03 Å |
| I(0) (倒空间) i0_reciprocal | 145700000.0000 |
| 解质量估计 total_estimate | 0.5472 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 25.5 Å |
| 偏度 Skewness skewness | 0.263 |
| 峰度 Kurtosis kurtosis | -1.240 |
| 角度范围 angular_range | — – 0.1750 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 26600000.0000 |
| 实空间数据点数 n_real_points | 36 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.015; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.063; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d2cela_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.29 — Concanavalin A-like lectins/glucanases |
| 超家族 Superfamily superfamily | b.29.1 — Concanavalin A-like lectins/glucanases |
| 家族 Family family | b.29.1.10 — Glycosyl hydrolase family 7 catalytic core |
| 结构域编号 domain_id | d2celb_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.29 — Concanavalin A-like lectins/glucanases |
| 超家族 Superfamily superfamily | b.29.1 — Concanavalin A-like lectins/glucanases |
| 家族 Family family | b.29.1.10 — Glycosyl hydrolase family 7 catalytic core |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2celA00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 70 — Distorted Sandwich |
| 拓扑 Topology topology | 100 — 1,4-Beta-D-Glucan Cellobiohydrolase I; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Glycoside hydrolase, family 7, domain |
| 结构域编号 domain_id | 2celB00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 70 — Distorted Sandwich |
| 拓扑 Topology topology | 100 — 1,4-Beta-D-Glucan Cellobiohydrolase I; Chain A |
| 同源超家族 H-superfamily homologous superfamily | 10 — Glycoside hydrolase, family 7, domain |
