SAXSdb — 2cfi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

10-FORMYLTETRAHYDROFOLATE DEHYDROGENASE

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 3 6-FORMYLTETRAHYDROPTERIN × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FTHFD_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 23–329； UniProt 1–307

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cfi
Deposition date deposition_date	2006-02-21
Structure title title	The hydrolase domain of human 10-FTHFD in complex with 6- formyltetrahydropterin
Keywords keywords	TETRAHYDROFOLATE, FOLATE BINDING, NADP, ONE-CARBON METABOLISM, OXIDOREDUCTASE, PHOSPHOPANTETHEINE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2cfi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2cfi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

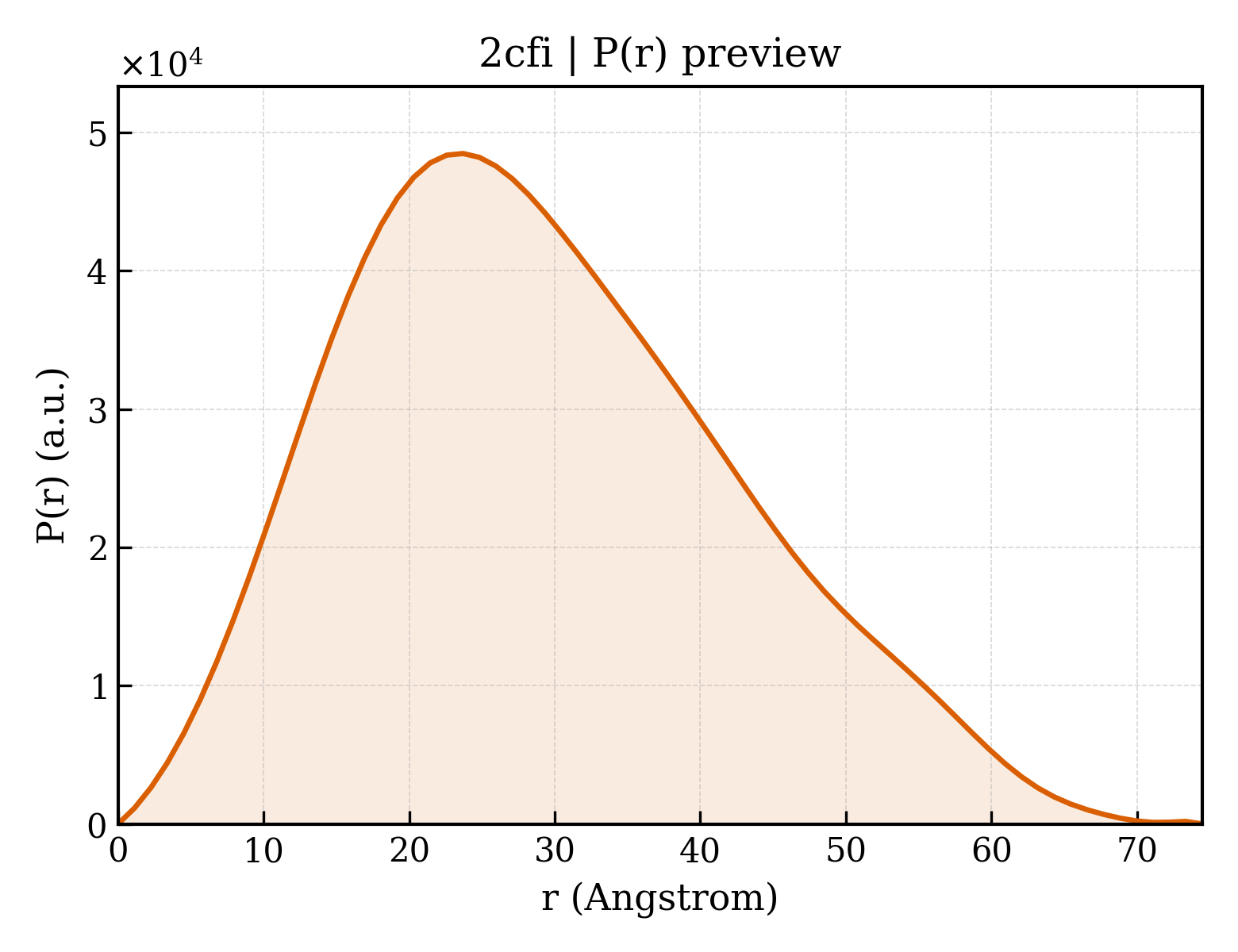

2cfi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.55 Å
Rg (electron density)	21.84 Å
Total Rg	22.74 Å
Atom count	2438
Residues	310
Excluded volume	43460 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2cfi__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	10-FORMYLTETRAHYDROFOLATE DEHYDROGENASE
Molecular weight formula_weight	36383.5 kDa
EC 编号 ec_number	1.5.1.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2773

MHHHHHHSSGVDLGTENLYFQSMKIAVIGQSLFGQEVYCHLRKEGHEVVGVFTVPDKDGKADPLGLEAEKDGVPVFKYSRWRAKGQALPDVVAKYQALGAELNVLPFCSQFIPMEIISAPRHGSIIYHPSLLPRHRGASAINWTLIHGDKKGGFSIFWADDGLDTGDLLLQKECEVLPDDTVSTLYNRFLFPEGIKGMVQAVRLIAEGKAPRLPQPEEGATYEGIQKKETAKINWDQPAEAIHNWIRGNDKVPGAWTEACEQKLTFFNSTLNTSGLVPEGDALPIPGAHRPGVVTKAGLILFGNDDKMLLVKNIQLEDGKMILASNFFK

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	6-FORMYLTETRAHYDROPTERIN
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	303

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2cfia1
Class class	b — All beta proteins
Fold Fold fold	b.46 — FMT C-terminal domain-like
Superfamily Superfamily superfamily	b.46.1 — FMT C-terminal domain-like
Family Family family	b.46.1.1 — Post formyltransferase domain

Domain ID domain_id	d2cfia2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.65 — Formyltransferase
Superfamily Superfamily superfamily	c.65.1 — Formyltransferase
Family Family family	c.65.1.1 — Formyltransferase

Domain ID domain_id	d2cfia3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2cfiA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	170 — Formyl transferase, N-terminal domain

Domain ID domain_id	2cfiA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	25 — Methionyl-tRNA Fmet Formyltransferase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Formyl transferase, C-terminal domain

▶

Unit-cell length a length_a	108.140 Å
Unit-cell length b length_b	64.440 Å
Unit-cell length c length_c	58.870 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.79 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1810
R_work r_work	0.1780
R_free r_free	0.2250

The hydrolase domain of human 10-FTHFD in complex with 6- formyltetrahydropterin
