2ch1

Structure of Anopheles gambiae 3-hydroxykynurenine transaminase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3-HYDROXYKYNURENINE TRANSAMINASE

ANOPHELES GAMBIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PYRIDOXAL-5'-PHOSPHATE × 2 GLYCEROL × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	PYRIDOXAL-5'-PHOSPHATE × 2 GLYCEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q4LAM2_ANOGA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–396； UniProt 1–396 Author chain B； PDBConstruct 1–396； UniProt 1–396 Author chain C； PDBConstruct 1–396； UniProt 1–396 Author chain D； PDBConstruct 1–396； UniProt 1–396

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ch1
Deposition date deposition_date	2006-03-10
Structure title title	Structure of Anopheles gambiae 3-hydroxykynurenine transaminase
Keywords keywords	PLP-ENZYME, KYNURENINE PATHWAY, ANOPHELES GAMBIAE, 3-HYDROXYKYNURENINE TRANSAMINASE, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ch1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ch1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

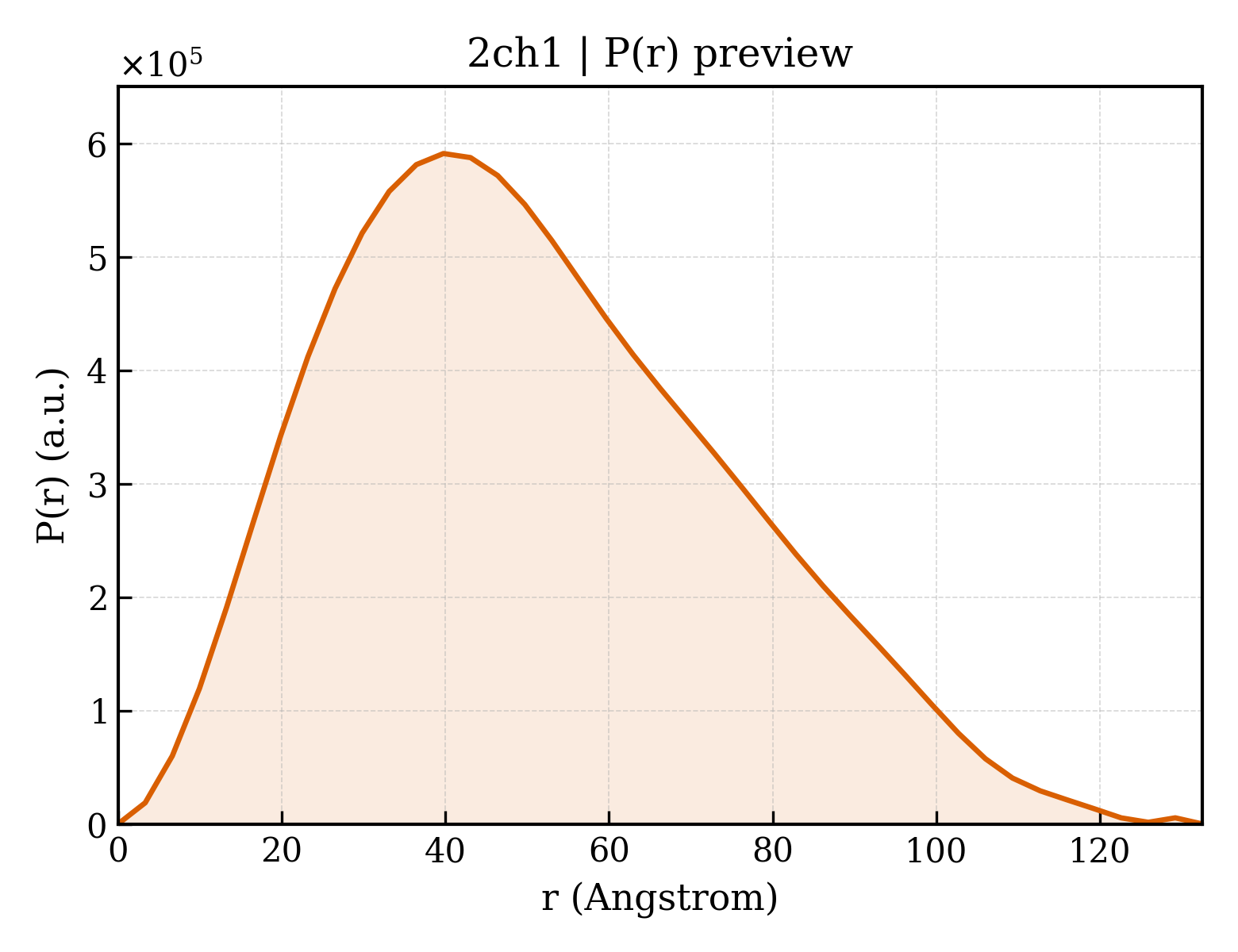

2ch1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.41 Å
Rg (electron density)	26.59 Å
Total Rg	27.30 Å
Atom count	6125
Residues	776
Excluded volume	109680 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ch1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ch1__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	3-HYDROXYKYNURENINE TRANSAMINASE
Molecular weight formula_weight	44350.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	12607

MKFTPPPASLRNPLIIPEKIMMGPGPSNCSKRVLTAMTNTVLSNFHAELFRTMDEVKDGLRYIFQTENRATMCVSGSAHAGMEAMLSNLLEEGDRVLIAVNGIWAERAVEMSERYGADVRTIEGPPDRPFSLETLARAIELHQPKCLFLTHGDSSSGLLQPLEGVGQICHQHDCLLIVDAVASLCGVPFYMDKWEIDAVYTGAQKVLGAPPGITPISISPKALDVIRNRRTKSKVFYWDLLLLGNYWGCYDEPKRYHHTVASNLIFALREALAQIAEEGLENQIKRRIECAQILYEGLGKMGLDIFVKDPRHRLPTVTGIMIPKGVDWWKVSQYAMNNFSLEVQGGLGPTFGKAWRVGIMGECSTVQKIQFYLYGFKESLKATHPDYIFEESNGFH

Source Source

Source organism organism	ANOPHELES GAMBIAE
NCBI taxonomy ID ncbi_taxonomy_id	7165
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	PYRIDOXAL-5'-PHOSPHATE
Molecular weight formula_weight	247.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	348

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2ch1a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.3 — Cystathionine synthase-like

Domain ID domain_id	d2ch1b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.0 — automated matches

Domain ID domain_id	d2ch1c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.0 — automated matches

Domain ID domain_id	d2ch1d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	2ch1A01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	2ch1A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	2ch1B01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	2ch1B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	2ch1C01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	2ch1C02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	2ch1D01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	2ch1D02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

▶

Unit-cell length a length_a	87.434 Å
Unit-cell length b length_b	84.167 Å
Unit-cell length c length_c	118.793 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.86 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2460
