SAXSdb — 2ckr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ENDOGLUCANASE E-5

THERMOBIFIDA FUSCA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	TETRAETHYLENE GLYCOL × 1 BENZAMIDINE × 1 ZINC ION × 2 water × 1	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 1	beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose × 1 BENZAMIDINE × 1 ZINC ION × 3 SODIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GUN5_THEFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–306； UniProt 161–466 Author chain B； PDBConstruct 1–306； UniProt 161–466

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ckr
Deposition date deposition_date	2006-04-21
Structure title title	X-RAY CRYSTAL STRUCTURE OF THE CATALYTIC DOMAIN OF THERMOBIFIDA FUSCA ENDOGLUCANASE CEL5A (E5) E355Q IN COMPLEX WITH CELLOTETRAOSE
Keywords keywords	;CARBOHYDRATE METABOLISM, POLYSACCHARIDE DEGRADATION, GLYCOSIDE HYDROLASE FAMILY 5, HYDROLASE, GLYCOSIDASE, ENDOGLUCANASE, THERMOBIFIDA FUSCA E5, CELLULOSE DEGRADATION ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ckr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ckr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

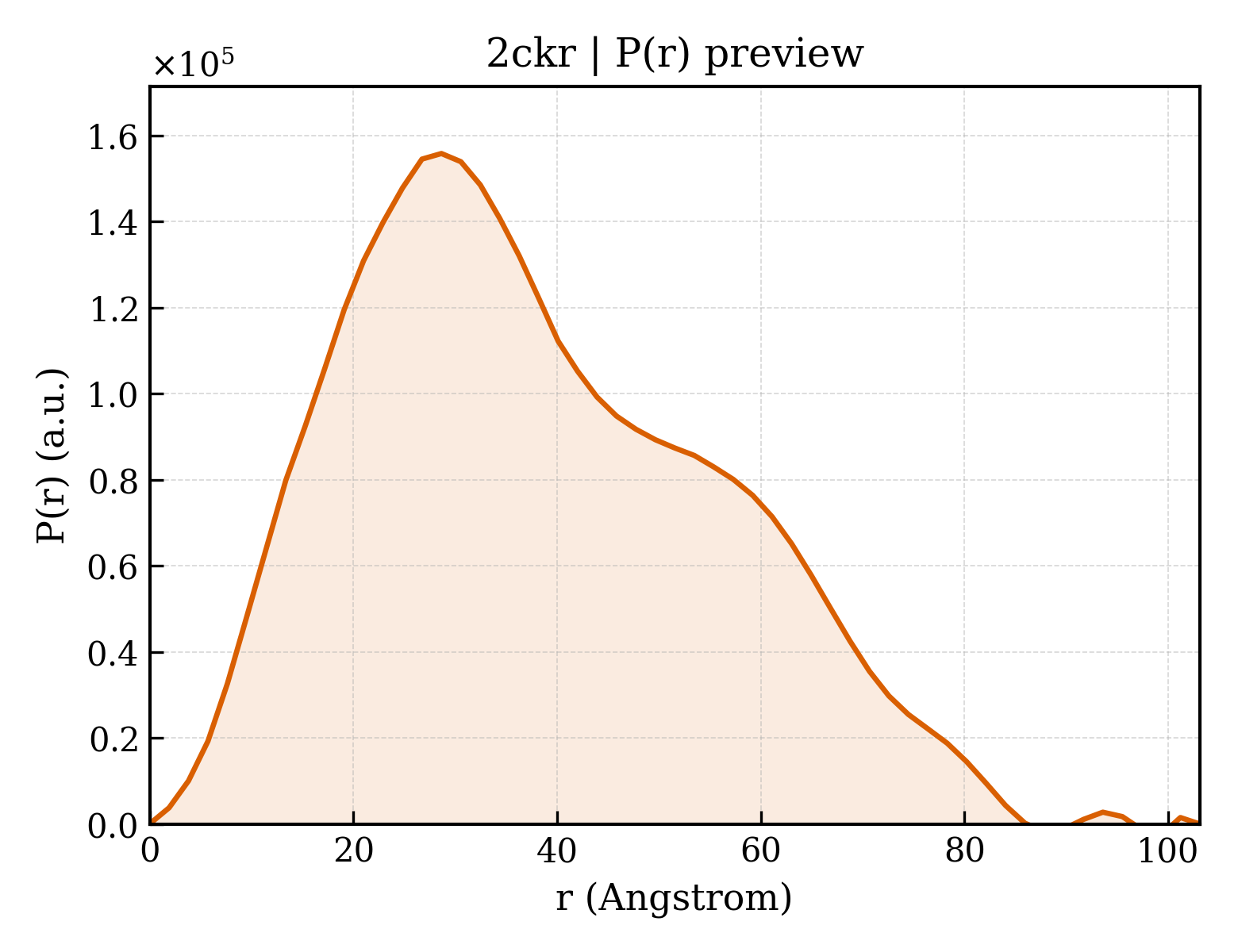

2ckr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.06 Å
Rg (electron density)	17.66 Å
Total Rg	18.62 Å
Atom count	2425
Residues	305
Excluded volume	42556 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ckr__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ckr__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	ENDOGLUCANASE E-5
Molecular weight formula_weight	34176.0 kDa
EC 编号 ec_number	3.2.1.4
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5687

TGTPVERYGKVQVCGTQLCDEHGNPVQLRGMSTHGIQWFDHCLTDSSLDALAYDWKADIIRLSMYIQEDGYETNPRGFTDRMHQLIDMATARGLYVIVDWHILTPGDPHYNLDRAKTFFAEIAQRHASKTNVLYEIANEPNGVSWASIKSYAEEVIPVIRQRDPDSVIIVGTRGWSSLGVSEGSGPAEIAANPVNASNIMYAFHFYAASHRDNYLNALREASELFPVFVTQFGTETYTGDGANDFQMADRYIDLMAERKIGWTKWNYSDDFRSGAVFQPGTCASGGPWSGSSLKASGQWVRSKLQS

Source Source

Source organism organism	THERMOBIFIDA FUSCA
NCBI taxonomy ID ncbi_taxonomy_id	2021
Host organism host_organism	BACILLUS SUBTILIS

Entity 2 Entity 2 branched

Description description	beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose
Molecular weight formula_weight	828.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	BENZAMIDINE
Molecular weight formula_weight	120.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 6 Entity 6 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	534

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2ckra_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.0 — automated matches

Domain ID domain_id	d2ckrb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	2ckrA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	2ckrB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

▶

Unit-cell length a length_a	49.365 Å
Unit-cell length b length_b	70.850 Å
Unit-cell length c length_c	76.278 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.86 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.770 Å
Low-resolution limit resolution_low	32.110 Å
R factor r_factor	0.1602
R_work r_work	0.1584
R_free r_free	0.1930

X-RAY CRYSTAL STRUCTURE OF THE CATALYTIC DOMAIN OF THERMOBIFIDA FUSCA ENDOGLUCANASE CEL5A (E5) E355Q IN COMPLEX WITH CELLOTETRAOSE
