BACTERIOPHAGE SF6
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | TERS_BPSF6 |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 4–63； UniProt 1–60 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2cmp |
| Deposition date deposition_date | 2006-05-11 |
| Structure title title | crystal structure of the DNA binding domain of G1P SMALL TERMINASE SUBUNIT from bacteriophage SF6 |
| Keywords keywords | SF6, DNA PACKAGING, VIRAL PROTEIN; VIRAL PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

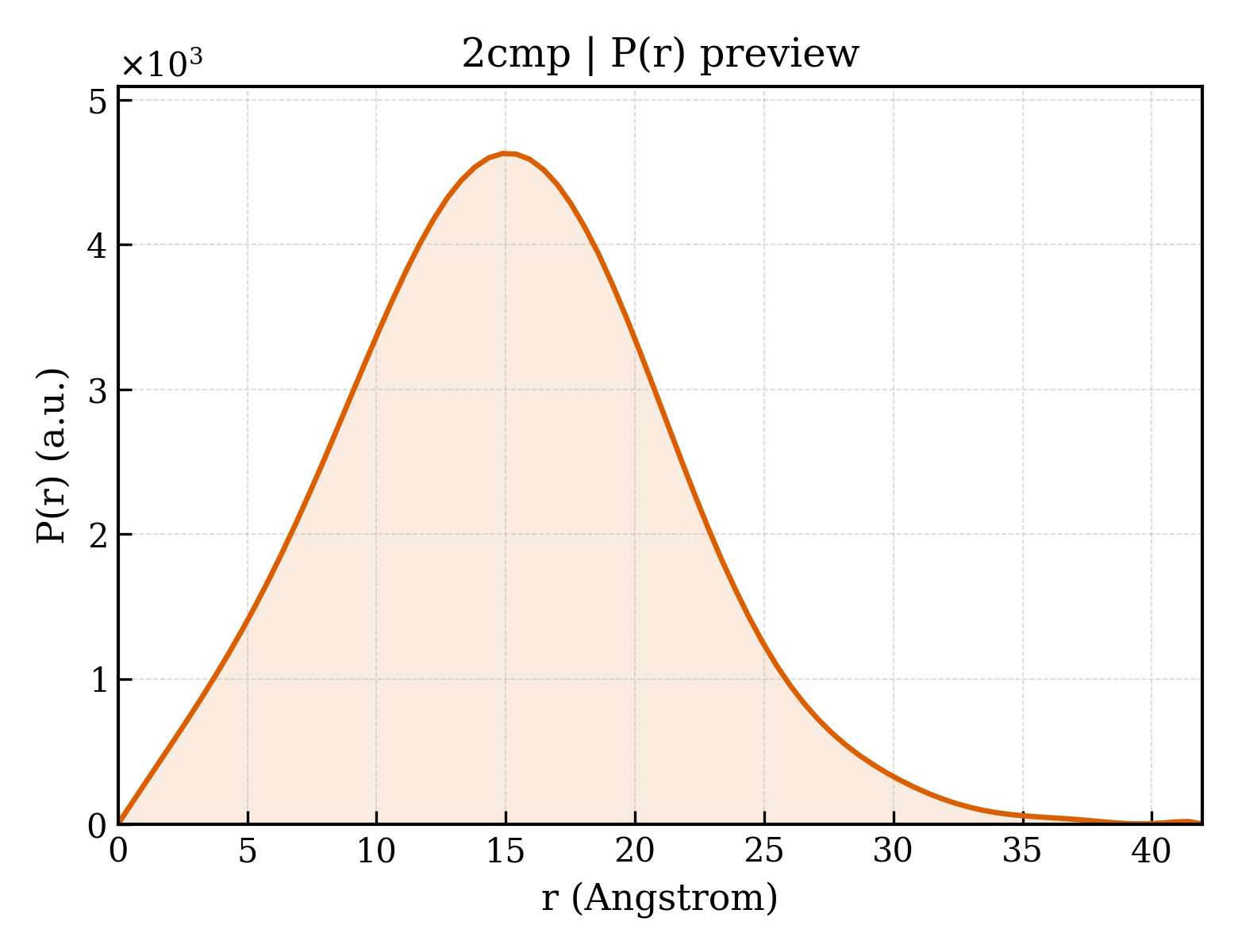

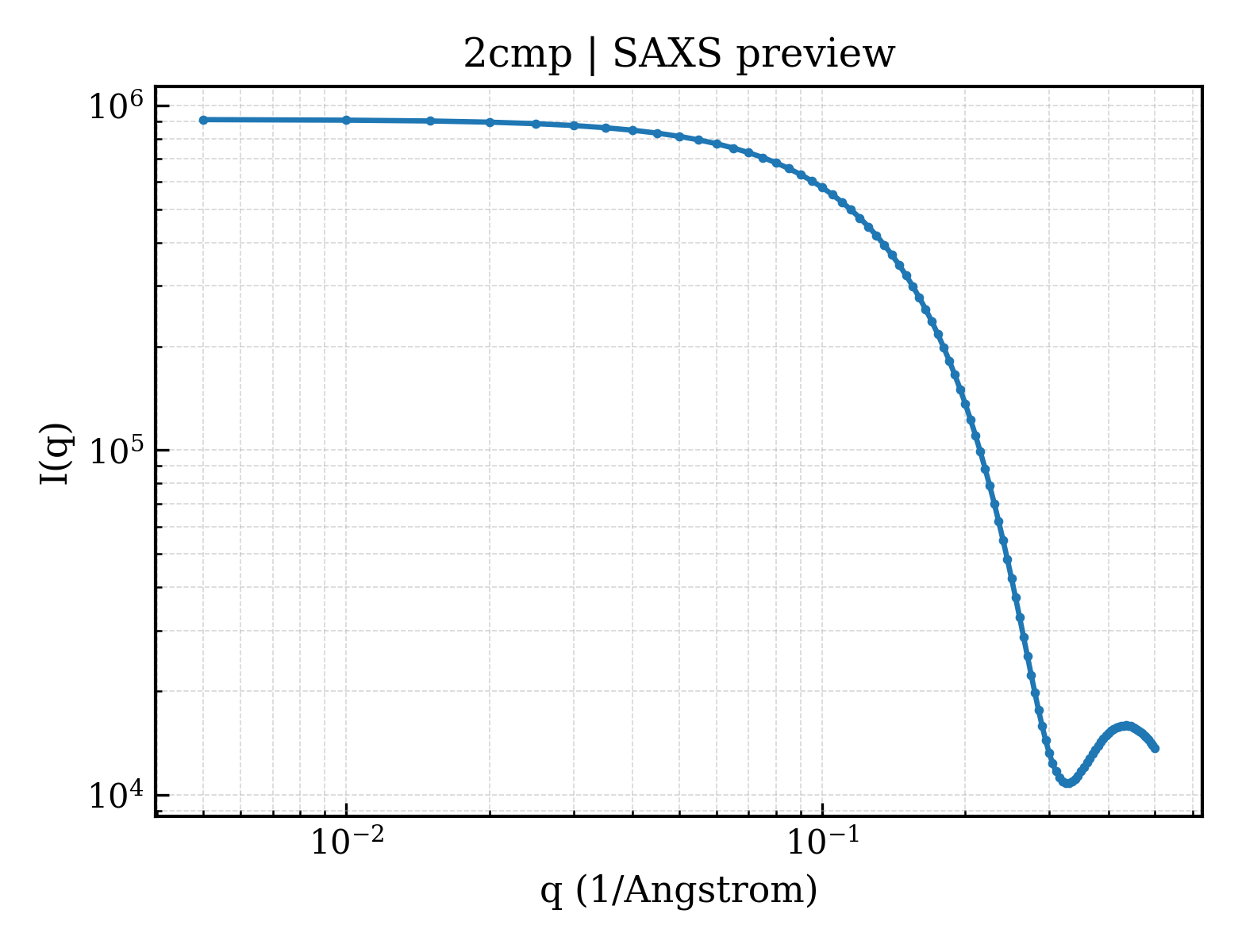

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 11.65 Å |
| Rg (electron density) | 10.34 Å |
| Total Rg | 11.93 Å |
| Atom count | 435 |
| Residues | 56 |
| Excluded volume | 7759 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | 2cmpA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 10 — Arc Repressor Mutant, subunit A |
| Homologous superfamily homologous superfamily | 1400 — Terminase, small subunit, N-terminal DNA-binding domain, HTH motif |
