HELICOBACTER PYLORI 26695
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | water × 2 | Consistent with protein count |
| UniProt name | O24890_HELPY |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 3–332； UniProt 1–330 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2cmu |
| Deposition date deposition_date | 2006-05-13 |
| Structure title title | Crystal structure of a putative peptidyl-arginine deiminase |
| Keywords keywords | ;HYDROLASE, PEPTIDYL-ARGININE DEIMINASE, T1664, JHP0042, UNKNOWN FUNCTION, STRUCTURAL GENOMICS, HYPOTHETICAL PROTEIN, NEW YORK STRUCTURAL GENOMIX RESEARCH CONSORTIUM, PSI, PROTEIN STRUCTURE INITIATIVE, NYSGXRC ;; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

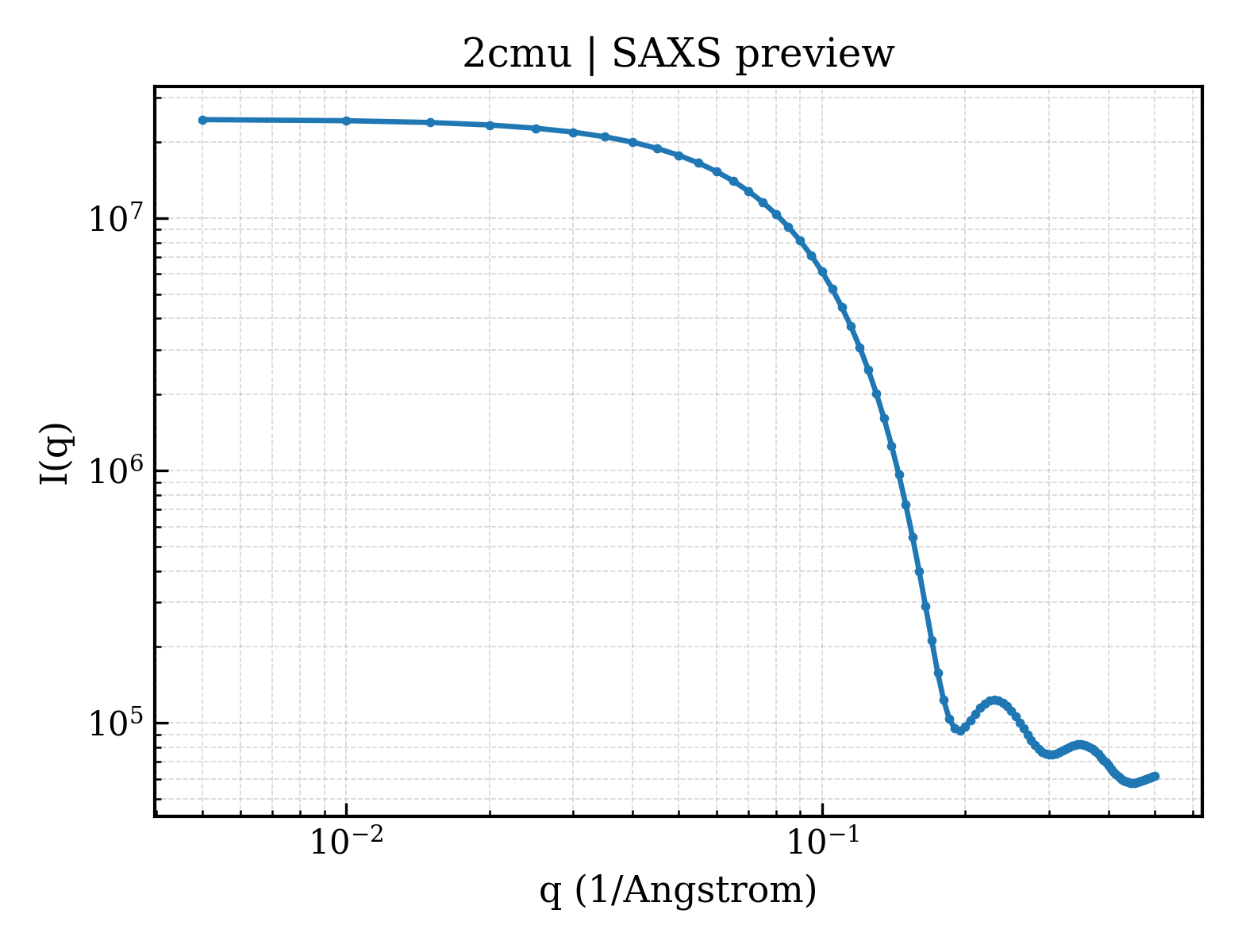

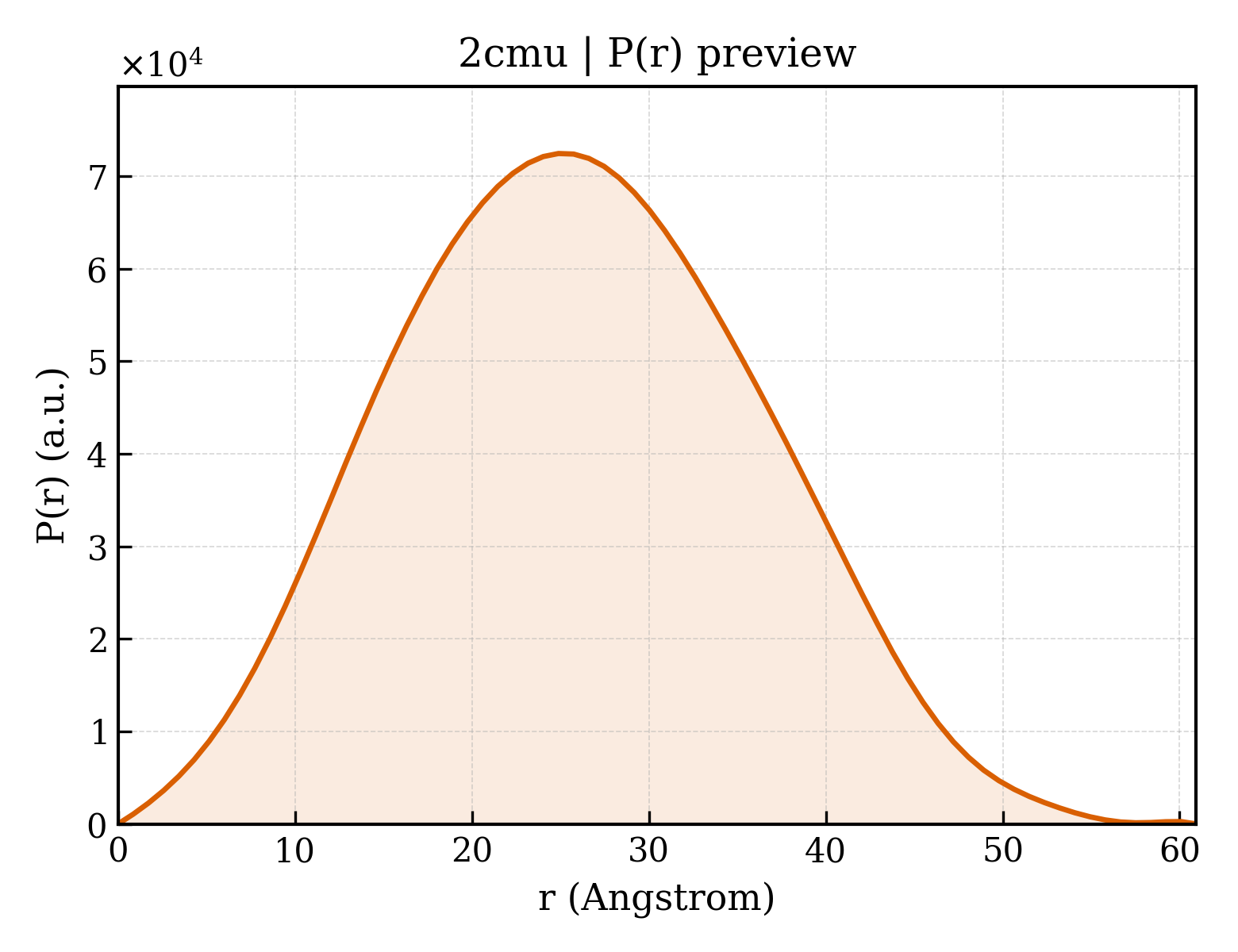

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 27.54 Å |
| Rg (electron density) | 27.07 Å |
| Total Rg | 27.87 Å |
| Atom count | 5336 |
| Residues | 654 |
| Excluded volume | 95892 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2cmua1 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.126 — Pentein, beta/alpha-propeller |
| Superfamily Superfamily superfamily | d.126.1 — Pentein |
| Family Family family | d.126.1.6 — Porphyromonas-type peptidylarginine deiminase |
| Domain ID domain_id | d2cmua2 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 2cmuA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 75 — 5-stranded Propeller |
| Topology topology | 10 — L-arginine/glycine Amidinotransferase; Chain A |
| Homologous superfamily homologous superfamily | 10 — L-arginine/glycine Amidinotransferase; Chain A |
