SAXSdb — 2cn3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-1,4-XYLOGLUCAN HYDROLASE

CLOSTRIDIUM THERMOCELLUM

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 2	;alpha-D-xylopyranose-(1-6)-beta-D-glucopyranose-(1-4)-[alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-[beta-D-galactopyranose-(1-2)-alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-alpha-D-glucopyranose ; × 1 ;alpha-D-xylopyranose-(1-6)-beta-D-glucopyranose-(1-4)-[beta-D-galactopyranose-(1-2)-alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-[beta-D-galactopyranose-(1-2)-alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-alpha-D-glucopyranose ; × 1 CALCIUM ION × 1 water × 1	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 2	;alpha-D-xylopyranose-(1-6)-beta-D-glucopyranose-(1-4)-[alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-[beta-D-galactopyranose-(1-2)-alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-alpha-D-glucopyranose ; × 2 CALCIUM ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q70DK5_CLOTM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–737； UniProt 28–764 Author chain B； PDBConstruct 1–737； UniProt 28–764

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cn3
Deposition date deposition_date	2006-05-17
Structure title title	Crystal Structures of Clostridium thermocellum Xyloglucanase
Keywords keywords	GLYCOSYLHYDROLASE, HYDROLASE, FAMILY GH74, XYLOGLUCANASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2cn3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2cn3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

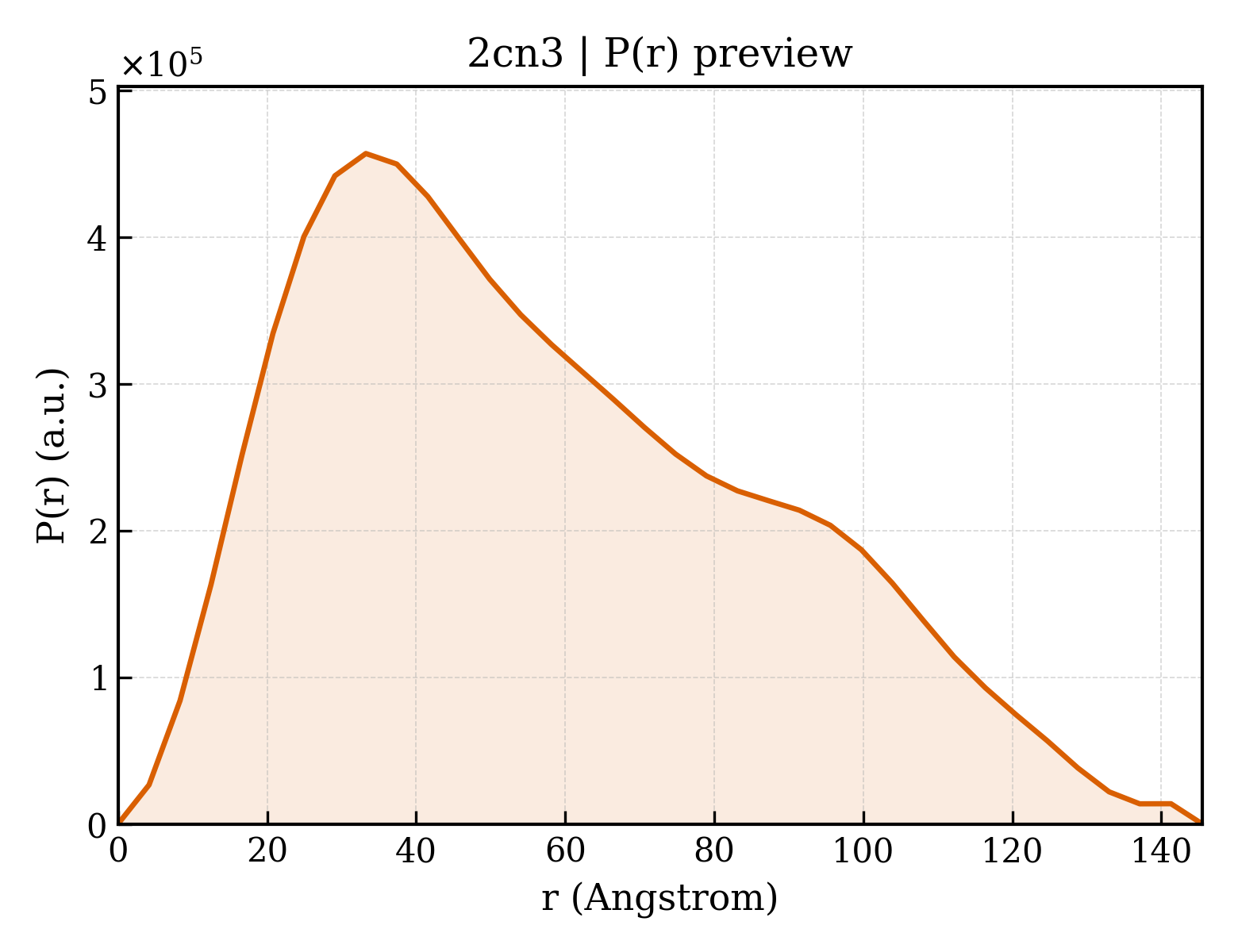

2cn3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.57 Å
Rg (electron density)	26.77 Å
Total Rg	27.52 Å
Atom count	5823
Residues	728
Excluded volume	103150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2cn3__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2cn3__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	BETA-1,4-XYLOGLUCAN HYDROLASE
Molecular weight formula_weight	80961.6 kDa
EC 编号 ec_number	3.2.1.151
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	12865

ISSQAVTSVPYKWDNVVIGGGGGFMPGIVFNETEKDLIYARAAIGGAYRWDPSTETWIPLLDHFQMDEYSYYGVESIATDPVDPNRVYIVAGMYTNDWLPNMGAILRSTDRGETWEKTILPFKMGGNMPGRSMGERLAIDPNDNRILYLGTRCGNGLWRSTDYGVTWSKVESFPNPGTYIYDPNFDYTKDIIGVVWVVFDKSSSTPGNPTKTIYVGVADKNESIYRSTDGGVTWKAVPGQPKGLLPHHGVLASNGMLYITYGDTCGPYDGNGKGQVWKFNTRTGEWIDITPIPYSSSDNRFCFAGLAVDRQNPDIIMVTSMNAWWPDEYIFRSTDGGATWKNIWEWGMYPERILHYEIDISAAPWLDWGTEKQLPEINPKLGWMIGDIEIDPFNSDRMMYVTGATIYGCDNLTDWDRGGKVKIEVKATGIEECAVLDLVSPPEGAPLVSAVGDLVGFVHDDLKVGPKKMHVPSYSSGTGIDYAELVPNFMALVAKADLYDVKKISFSYDGGRNWFQPPNEAPNSVGGGSVAVAADAKSVIWTPENASPAVTTDNGNSWKVCTNLGMGAVVASDRVNGKKFYAFYNGKFYISTDGGLTFTDTKAPQLPKSVNKIKAVPGKEGHVWLAAREGGLWRSTDGGYTFEKLSNVDTAHVVGFGKAAPGQDYMAIYITGKIDNVLGFFRSDDAGKTWVRINDDEHGYGAVDTAITGDPRVYGRVYIATNGRGIVYGEPASDEPV

Source Source

Source organism organism	CLOSTRIDIUM THERMOCELLUM
NCBI taxonomy ID ncbi_taxonomy_id	1515
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 branched

Description description	;alpha-D-xylopyranose-(1-6)-beta-D-glucopyranose-(1-4)-[alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-[beta-D-galactopyranose-(1-2)-alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-alpha-D-glucopyranose ;
Molecular weight formula_weight	1225.1 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 branched

Description description	;alpha-D-xylopyranose-(1-6)-beta-D-glucopyranose-(1-4)-[beta-D-galactopyranose-(1-2)-alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-[beta-D-galactopyranose-(1-2)-alpha-D-xylopyranose-(1-6)]beta-D-glucopyranose-(1-4)-alpha-D-glucopyranose ;
Molecular weight formula_weight	1387.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1228

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2cn3a1
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.13 — Oligoxyloglucan reducing end-specific cellobiohydrolase
Family Family family	b.69.13.0 — automated matches

Domain ID domain_id	d2cn3a2
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.13 — Oligoxyloglucan reducing end-specific cellobiohydrolase
Family Family family	b.69.13.0 — automated matches

Domain ID domain_id	d2cn3b1
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.13 — Oligoxyloglucan reducing end-specific cellobiohydrolase
Family Family family	b.69.13.0 — automated matches

Domain ID domain_id	d2cn3b2
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.13 — Oligoxyloglucan reducing end-specific cellobiohydrolase
Family Family family	b.69.13.0 — automated matches

CATH v4.4 (4 domains)

Domain ID domain_id	2cn3A01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2cn3A02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2cn3B01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

Domain ID domain_id	2cn3B02
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

Unit-cell length a length_a	141.440 Å
Unit-cell length b length_b	141.440 Å
Unit-cell length c length_c	193.393 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	0.1800
R_work r_work	0.1780
R_free r_free	0.2040
