2co9
Solution structure of the HMG_box domain of thymus high mobility group box protein TOX from mouse

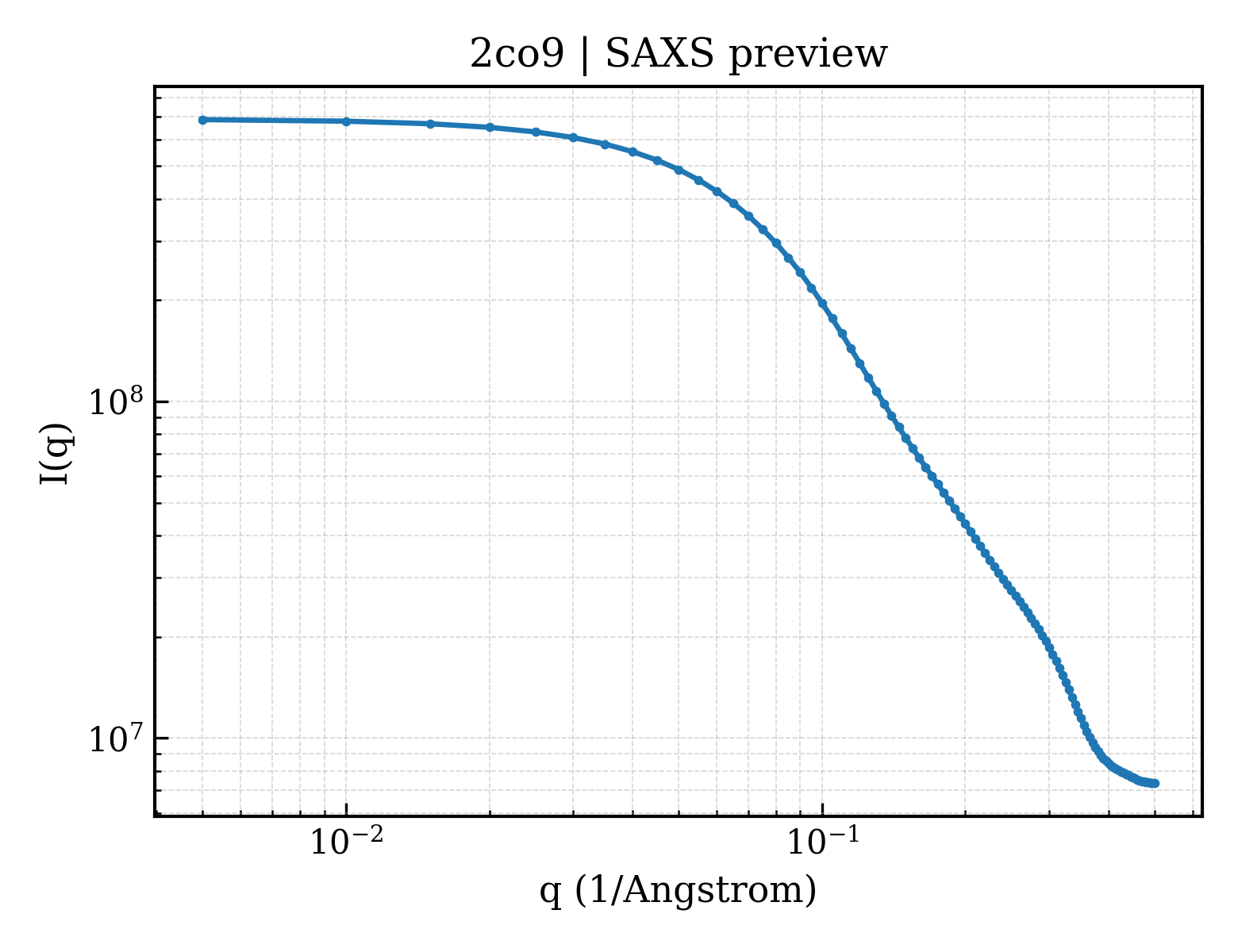

SAXS 散射曲线 SAXS Profile

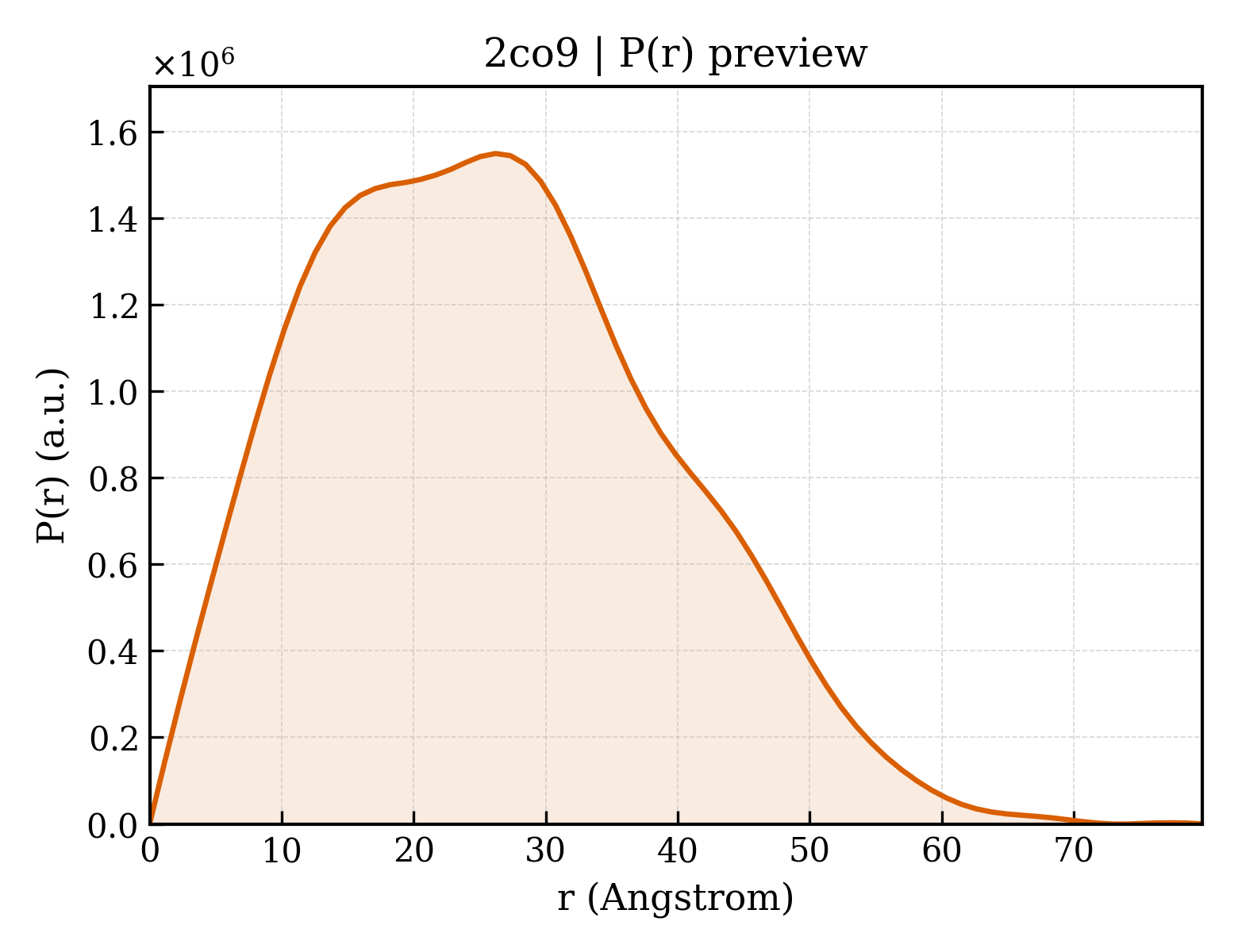

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2co9 |
| 沉积日期 deposition_date | 2005-05-17 |
| 结构标题 title | Solution structure of the HMG_box domain of thymus high mobility group box protein TOX from mouse |
| 关键词 keywords | ;Tox protein, HMG box domain, structural genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, TRANSCRIPTION ;; TRANSCRIPTION |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 20.38 Å |
| 回转半径 Rg (电子) rg_electron | 19.44 Å |
| 零角强度 I(0) i0 | 689796000.00 |
| 分子量 molecular_weight | 220550.0 kDa |
| 排除体积 excluded_volume | 276720 ų |
| 包络体积 envelope_volume | 80918 ų |
| 水化壳体积 shell_volume | 26435 ų |
| 包络直径 envelope_diameter | 88.5 Å |
| 壳层 Rg shell_rg | 32.65 Å |
| 包络 Rg envelope_rg | 26.50 Å |
| 形状 Rg shape_rg | 19.41 Å |
| 总 Rg total_rg | 20.00 Å |
| 总原子数 total_atoms | 31300 |
| 残基数 n_residues | 2040 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 79.7 Å |
| Rg (实空间) rg_real | 20.52 Å |
| Rg 误差 (实空间) rg_real_error | 1.07 Å |
| I(0) (实空间) i0_real | 6.8980e+08 |
| I(0) 误差 (实空间) i0_real_error | 9.7430e+06 |
| Rg (倒空间) rg_reciprocal | 20.50 Å |
| I(0) (倒空间) i0_reciprocal | 689800000.0000 |
| 解质量估计 total_estimate | 0.8008 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 26.2 Å |
| 偏度 Skewness skewness | 0.375 |
| 峰度 Kurtosis kurtosis | -0.393 |
| 角度范围 angular_range | — – 0.3900 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 196500.0000 |
| 实空间数据点数 n_real_points | 71 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.650; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.457; Smooth: 0.998 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 1 domains
CATH v4.4 (1 domains)
| 结构域编号 domain_id | 2co9A00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 30 — DNA Binding (I), subunit A |
| 同源超家族 H-superfamily homologous superfamily | 10 — High mobility group box domain |
