SAXSdb — 2cv8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

tRNA-splicing endonuclease

Sulfolobus tokodaii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	CHLORIDE ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENDA_SULTO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–180； UniProt 1–180 Author chain B； PDBConstruct 1–180； UniProt 1–180

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cv8
Deposition date deposition_date	2005-06-01
Structure title title	Crystal structure of tRNA-intron endonuclease from Sulfolobus tokodaii
Keywords keywords	;tRNA-intron endonuclease, tRNA splicing, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2cv8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2cv8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

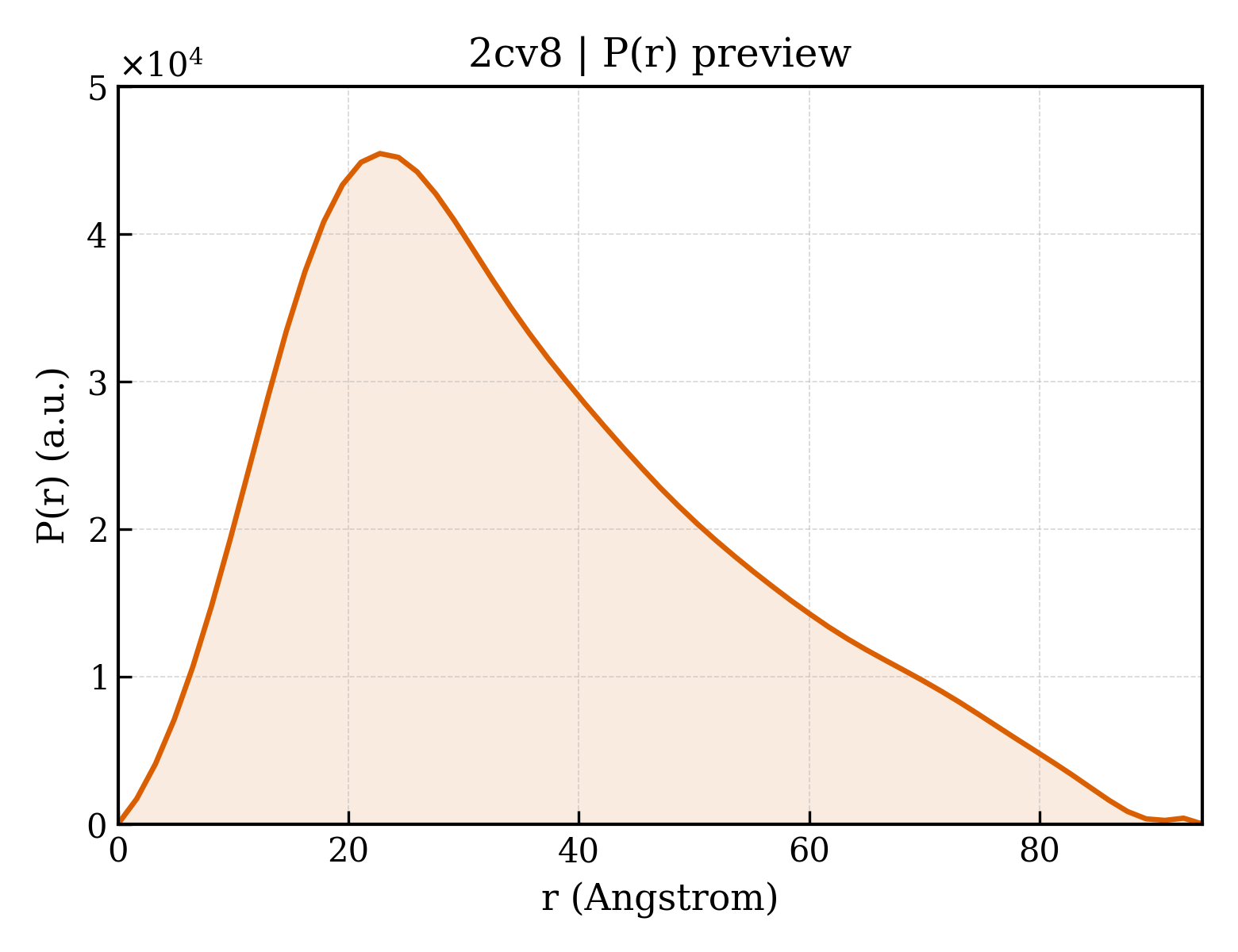

2cv8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.45 Å
Rg (electron density)	27.27 Å
Total Rg	27.91 Å
Atom count	2742
Residues	332
Excluded volume	50208 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2cv8__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2cv8__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	tRNA-splicing endonuclease
Molecular weight formula_weight	20722.6 kDa
EC 编号 ec_number	3.1.27.9
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2768

MIGELVKDKILIKNIEDARLIYKMGYYGKPIGISKPKSAEEINSELILSLIEGVYLVKKGKLEIVSNGERLDFERLYQIGVTQIPRFRILYSVYEDLREKGYVVRSGIKYGADFAVYTIGPGIEHAPYLVIALDENSQISSNEILGFGRVSHSTRKELILGIVNLTNGKIRYIMFKWLKM

Source Source

Source organism organism	Sulfolobus tokodaii
NCBI taxonomy ID ncbi_taxonomy_id	111955
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	26

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2cv8A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
Homologous superfamily homologous superfamily	20 — tRNA intron endonuclease, N-terminal domain

Domain ID domain_id	2cv8A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1350 — Trna Endonuclease; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2cv8B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1170 — MutS, DNA mismatch repair protein, domain I
Homologous superfamily homologous superfamily	20 — tRNA intron endonuclease, N-terminal domain

Domain ID domain_id	2cv8B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1350 — Trna Endonuclease; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	54.308 Å
Unit-cell length b length_b	54.308 Å
Unit-cell length c length_c	242.768 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	49.390 Å
R factor r_factor	—
R_work r_work	0.2260
R_free r_free	0.2990

Crystal structure of tRNA-intron endonuclease from Sulfolobus tokodaii
