SAXSdb — 2cvl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

protein translation initiation inhibitor

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5SM06_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–124； UniProt 1–124 Author chain B； PDBConstruct 1–124； UniProt 1–124 Author chain C； PDBConstruct 1–124； UniProt 1–124 Author chain D； PDBConstruct 1–124； UniProt 1–124 Author chain E； PDBConstruct 1–124； UniProt 1–124 Author chain F； PDBConstruct 1–124； UniProt 1–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cvl
Deposition date deposition_date	2005-06-08
Structure title title	Crystal structure of TTHA0137 from Thermus Thermophilus HB8
Keywords keywords	;Structural genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Unknown function ;; Structural genomics, Unknown function
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2cvl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2cvl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

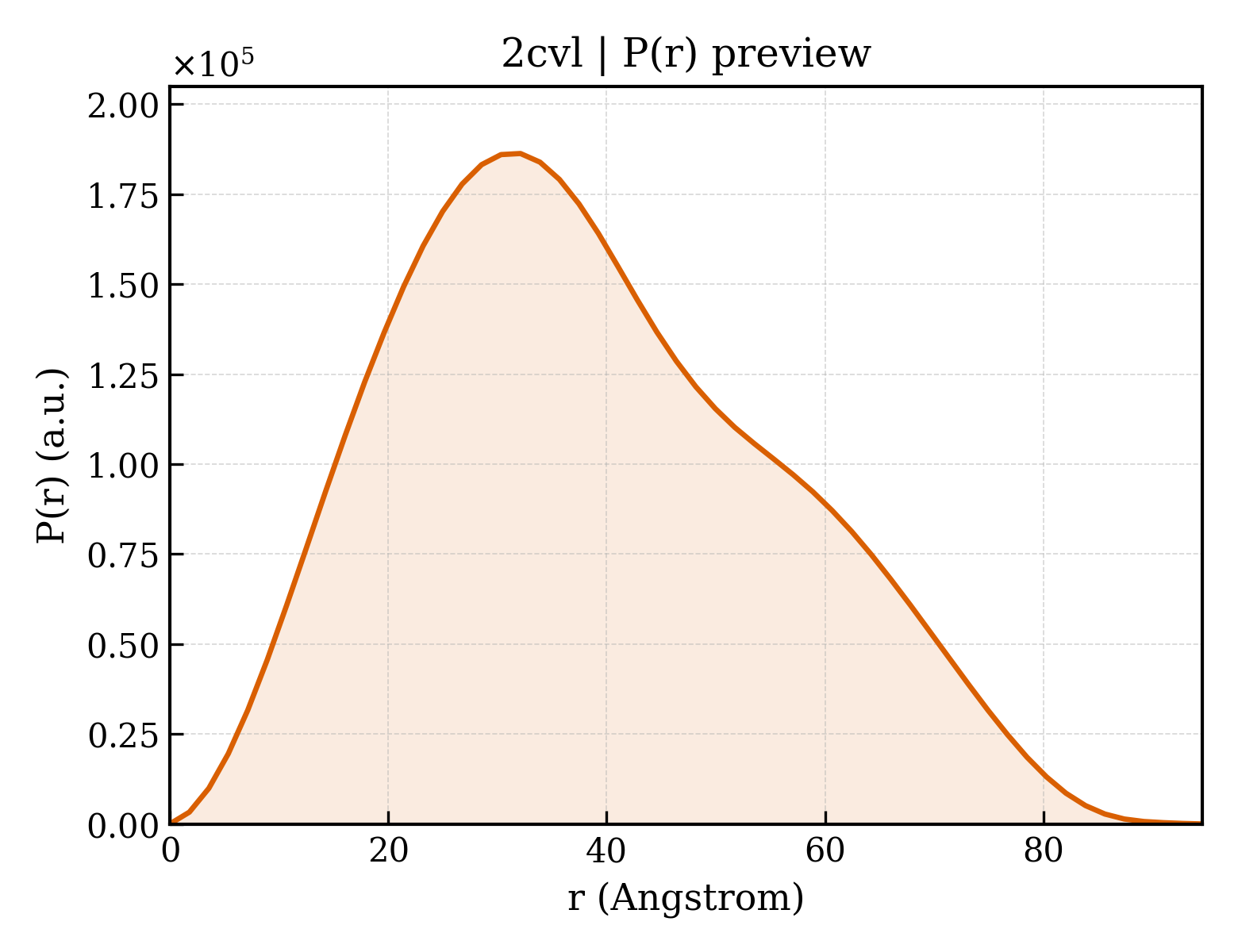

2cvl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.29 Å
Rg (electron density)	18.94 Å
Total Rg	19.81 Å
Atom count	2772
Residues	363
Excluded volume	49777 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2cvl__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2cvl__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2cvla_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

Domain ID domain_id	d2cvlb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

Domain ID domain_id	d2cvlc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

Domain ID domain_id	d2cvld_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

Domain ID domain_id	d2cvle_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

Domain ID domain_id	d2cvlf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.1 — YjgF-like
Family Family family	d.79.1.1 — YjgF/L-PSP

CATH v4.4 (6 domains)

Domain ID domain_id	2cvlA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

Domain ID domain_id	2cvlB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

Domain ID domain_id	2cvlC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

Domain ID domain_id	2cvlD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

Domain ID domain_id	2cvlE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

Domain ID domain_id	2cvlF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	40 — RutC-like

▶

Unit-cell length a length_a	50.055 Å
Unit-cell length b length_b	145.296 Å
Unit-cell length c length_c	50.305 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	118.52 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.650 Å
Low-resolution limit resolution_low	37.760 Å
R factor r_factor	0.1890
R_work r_work	0.1890
R_free r_free	0.2270

Description description	protein translation initiation inhibitor
Molecular weight formula_weight	13297.8 kDa
Source method src_method	man
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	6208

Crystal structure of TTHA0137 from Thermus Thermophilus HB8

1. Protein Identity and Related Structures Protein Identity & Related Structures

protein translation initiation inhibitor

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2cvl__assembly_1__model_1

2cvl__assembly_1__model_1 | I(q)

2cvl__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

7. Citations (1)

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	664
