SAXSdb — 2cwd

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2cwd
沉积日期 deposition_date	2005-06-20
结构标题 title	Crystal Structure of TT1001 protein from Thermus thermophilus HB8
关键词 keywords	;tyrosine phosphatase, structural genomics, RIKEN Structural Genomics/Proteomics Initiative, RSGI, NPPSFA, National Project on Protein Structural and Functional Analyses, Hydrolase ;; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.66 Å
回转半径 Rg (电子) rg_electron	32.06 Å
零角强度 I(0) i0	79719900.00
分子量 molecular_weight	69400.0 kDa
排除体积 excluded_volume	86246 Å³
包络体积 envelope_volume	110780 Å³
水化壳体积 shell_volume	29364 Å³
包络直径 envelope_diameter	108.6 Å
壳层 Rg shell_rg	38.15 Å
包络 Rg envelope_rg	31.65 Å
形状 Rg shape_rg	32.06 Å
总 Rg total_rg	32.60 Å
总原子数 total_atoms	4893
残基数 n_residues	599
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	105.4 Å
Rg (实空间) rg_real	32.66 Å
Rg 误差 (实空间) rg_real_error	0.92 Å
I(0) (实空间) i0_real	7.9720e+07
I(0) 误差 (实空间) i0_real_error	1.1610e+06
Rg (倒空间) rg_reciprocal	32.67 Å
I(0) (倒空间) i0_reciprocal	79720000.0000
解质量估计 total_estimate	0.8879
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	48.3 Å
偏度 Skewness skewness	0.188
峰度 Kurtosis kurtosis	-0.680
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	23550000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.893; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.913; Smooth: 0.947

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	low molecular weight phosphotyrosine protein phosphatase
分子量 formula_weight	18467.9 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	5291

MDRPVRVLFVCLGNICRSPMAEGIFRKLLKERGLEDRFEVDSAGTGAWHVGEPMDPRARRVLEEEGAYFPHVARRLTREDVLAYDHILVMDRENLEEVLRRFPEARGKVRLVLEELGGGEVQDPYYGDLEDFREVYWTLEAALQAFLDRHGSPSPAAEGRA

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	300852
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	398

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2cwda_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.44 — Phosphotyrosine protein phosphatases I-like
超家族 Superfamily superfamily	c.44.1 — Phosphotyrosine protein phosphatases I
家族 Family family	c.44.1.0 — automated matches

结构域编号 domain_id	d2cwdb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.44 — Phosphotyrosine protein phosphatases I-like
超家族 Superfamily superfamily	c.44.1 — Phosphotyrosine protein phosphatases I
家族 Family family	c.44.1.0 — automated matches

结构域编号 domain_id	d2cwdc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.44 — Phosphotyrosine protein phosphatases I-like
超家族 Superfamily superfamily	c.44.1 — Phosphotyrosine protein phosphatases I
家族 Family family	c.44.1.0 — automated matches

结构域编号 domain_id	d2cwdd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.44 — Phosphotyrosine protein phosphatases I-like
超家族 Superfamily superfamily	c.44.1 — Phosphotyrosine protein phosphatases I
家族 Family family	c.44.1.0 — automated matches

CATH v4.4 (4 domains)

结构域编号 domain_id	2cwdA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	2cwdB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	2cwdC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	2cwdD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	98.108 Å
晶胞边长 b length_b	31.293 Å
晶胞边长 c length_c	102.605 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	98.70 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	38.040 Å
R 因子 r_factor	0.2270
R_work r_work	0.2270
R_free r_free	0.2530

fit	/app/data/saxs_computation/cw/2cwd/2cwd.fit
pddf	/app/data/pr_computation/cw/2cwd/2cwd.pr.out
profile	/app/data/saxs_computation/cw/2cwd/2cwd.dat

Crystal Structure of TT1001 protein from Thermus thermophilus HB8

SAXS 散射曲线 SAXS Profile

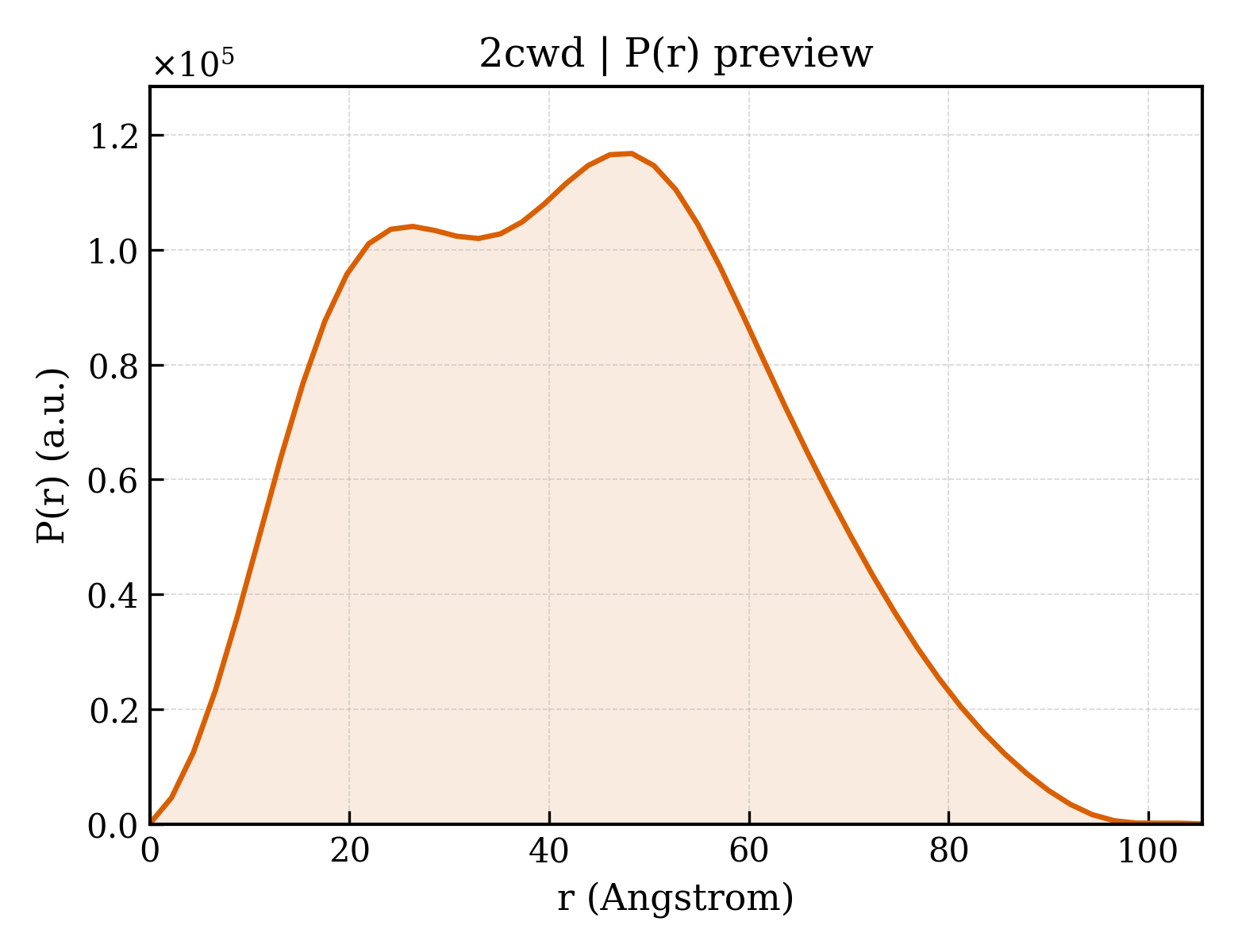

P(r) 距离分布 P(r) Distribution
