2cwn
Crystal structure of mouse transaldolase
SAXS 散射曲线 SAXS Profile

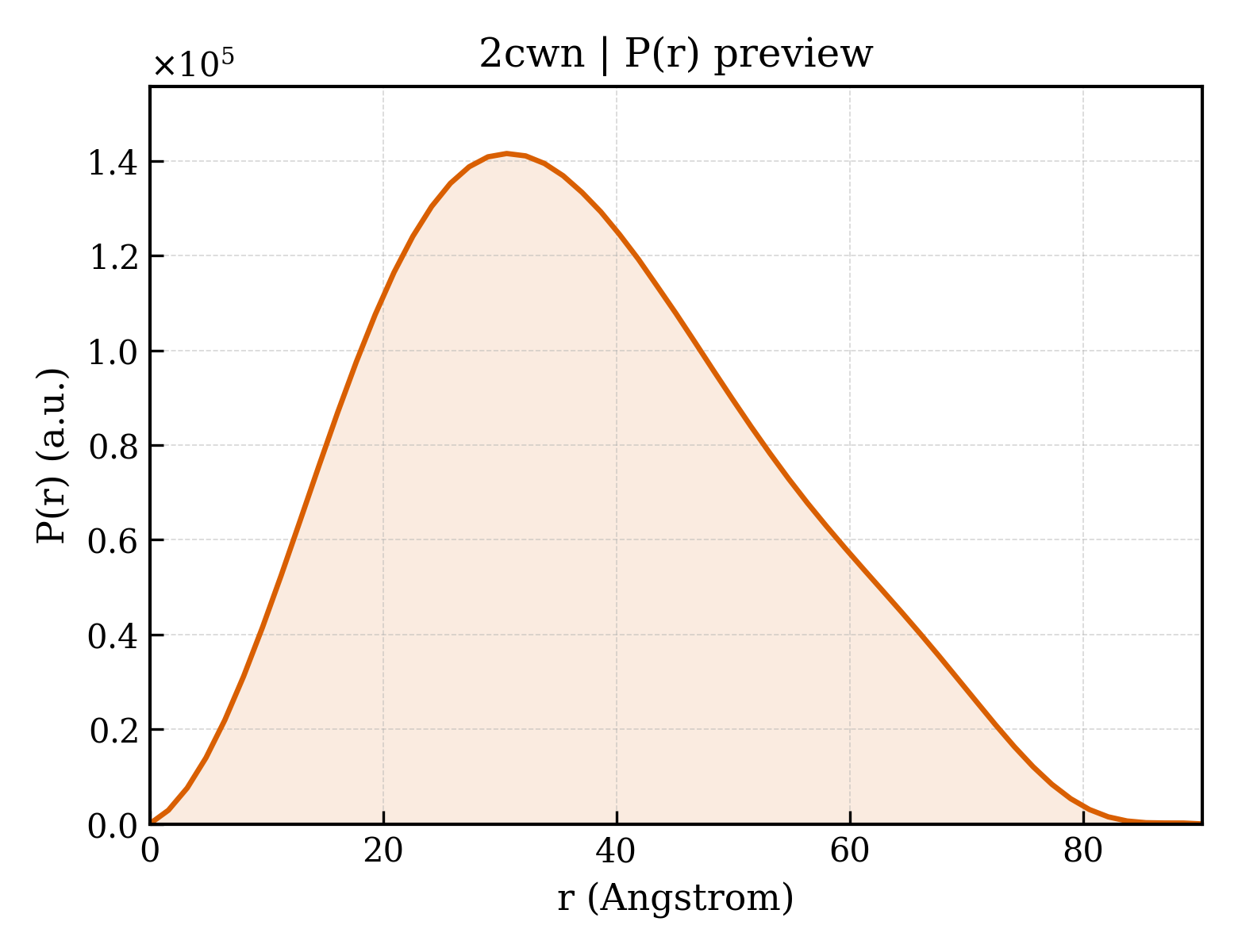

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2cwn |
| 沉积日期 deposition_date | 2005-06-22 |
| 结构标题 title | Crystal structure of mouse transaldolase |
| 关键词 keywords | ;Structural Genomics, Transaldolase, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, TRANSFERASE ;; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 28.39 Å |
| 回转半径 Rg (电子) rg_electron | 27.70 Å |
| 零角强度 I(0) i0 | 75641700.00 |
| 分子量 molecular_weight | 69926.0 kDa |
| 排除体积 excluded_volume | 88340 ų |
| 包络体积 envelope_volume | 104430 ų |
| 水化壳体积 shell_volume | 31719 ų |
| 包络直径 envelope_diameter | 90.9 Å |
| 壳层 Rg shell_rg | 35.01 Å |
| 包络 Rg envelope_rg | 27.72 Å |
| 形状 Rg shape_rg | 27.68 Å |
| 总 Rg total_rg | 28.50 Å |
| 总原子数 total_atoms | 4921 |
| 残基数 n_residues | 633 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 90.2 Å |
| Rg (实空间) rg_real | 28.39 Å |
| Rg 误差 (实空间) rg_real_error | 0.53 Å |
| I(0) (实空间) i0_real | 7.5640e+07 |
| I(0) 误差 (实空间) i0_real_error | 9.5510e+05 |
| Rg (倒空间) rg_reciprocal | 28.40 Å |
| I(0) (倒空间) i0_reciprocal | 75640000.0000 |
| 解质量估计 total_estimate | 0.9020 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 30.6 Å |
| 偏度 Skewness skewness | 0.323 |
| 峰度 Kurtosis kurtosis | -0.526 |
| 角度范围 angular_range | — – 0.2800 Å−1 |
| 当前正则化参数 α current_alpha | 0.0001 |
| 最高正则化参数 α highest_alpha | 16290000.0000 |
| 实空间数据点数 n_real_points | 57 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.961 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 5 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d2cwna1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.10 — Aldolase |
| 家族 Family family | c.1.10.1 — Class I aldolase |
| 结构域编号 domain_id | d2cwna2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d2cwnb_ |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.10 — Aldolase |
| 家族 Family family | c.1.10.1 — Class I aldolase |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 2cwnA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
| 结构域编号 domain_id | 2cwnB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
