2cx9

Crystal structure of acyl-CoA dehydrogenase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

acyl-CoA dehydrogenase

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	CHLORIDE ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5SGZ2_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–387； UniProt 1–387 Author chain B； PDBConstruct 1–387； UniProt 1–387 Author chain C； PDBConstruct 1–387； UniProt 1–387 Author chain D； PDBConstruct 1–387； UniProt 1–387

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cx9
Deposition date deposition_date	2005-06-28
Structure title title	Crystal structure of acyl-CoA dehydrogenase
Keywords keywords	;acyl-CoA dehydrogenase, RSGI, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2cx9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2cx9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

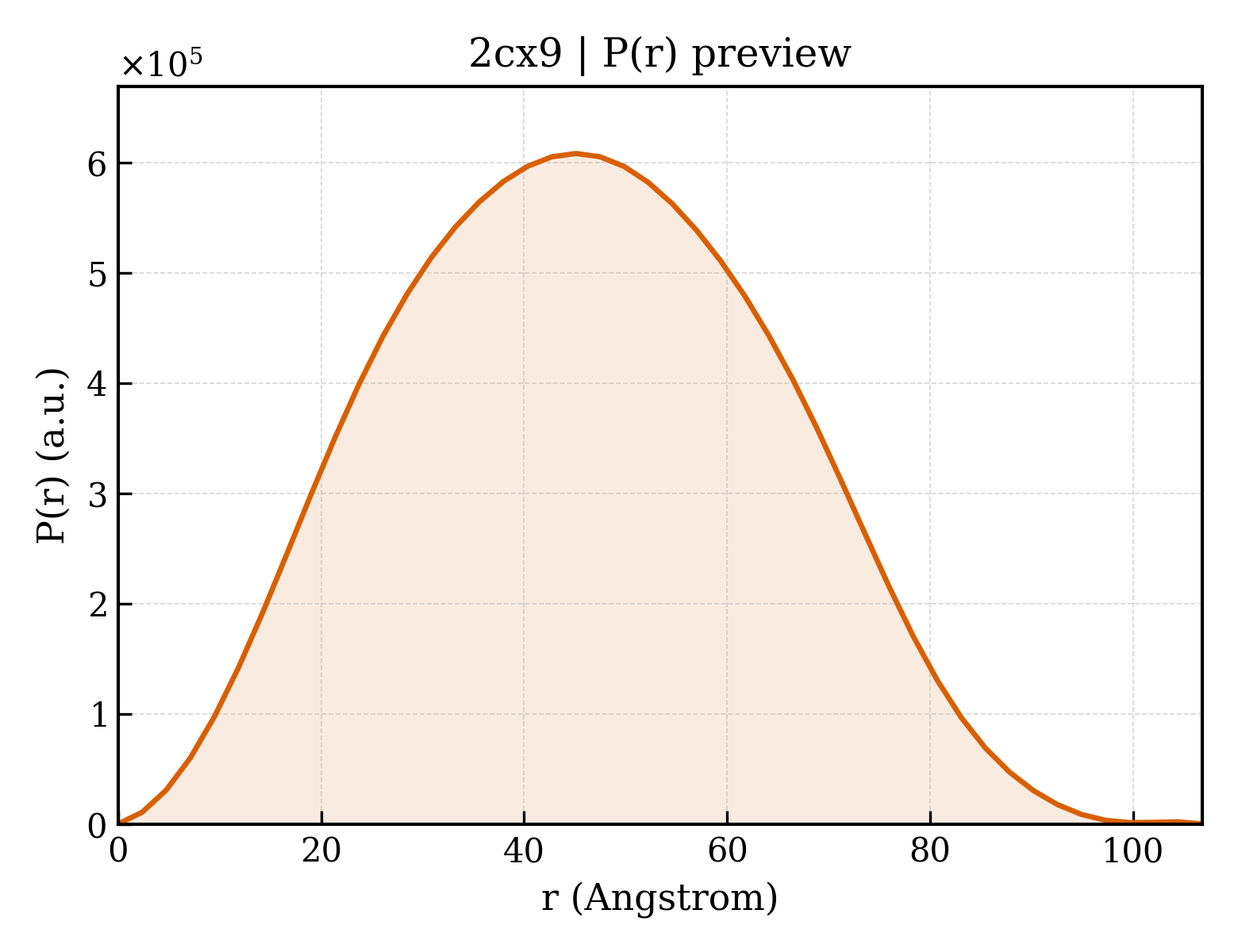

2cx9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.17 Å
Rg (electron density)	34.24 Å
Total Rg	34.72 Å
Atom count	11700
Residues	1540
Excluded volume	209150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2cx9__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	acyl-CoA dehydrogenase
Molecular weight formula_weight	41581.4 kDa
EC 编号 ec_number	1.3.99.3
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	12199

MGLWFEEGAEERQVLGPFREFLKAEVAPGAAERDRTGAFPWDLVRKLAEFGVFGALVPEAYGGAGLSTRLFARMVEAIAYYDGALALTVASHNSLATGHILLAGSEAQKEAFLPKLASGEALGAWGLTEPGSGSDAAALKTKAEKVEGGWRLNGTKQFITQGSVAGVYVVMARTDPPPSPERKHQGISAFAFFRPERGLKVGRKEEKLGLTASDTAQLILEDLFVPEEALLGERGKGFYDVLRVLDGGRIGIAAMAVGLGQAALDYALAYAKGREAFGRPIAEFEGVSFKLAEAATELEAARLLYLKAAELKDAGRPFTLEAAQAKLFASEAAVKACDEAIQILGGYGYVKDYPVERYWRDARLTRIGEGTSEILKLVIARRLLEAV

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	499

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d2cx9a1
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.3 — Acyl-CoA dehydrogenase C-terminal domain-like
Family Family family	a.29.3.1 — Medium chain acyl-CoA dehydrogenase-like, C-terminal domain

Domain ID domain_id	d2cx9a2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.6 — Acyl-CoA dehydrogenase NM domain-like
Superfamily Superfamily superfamily	e.6.1 — Acyl-CoA dehydrogenase NM domain-like
Family Family family	e.6.1.1 — Medium chain acyl-CoA dehydrogenase, NM (N-terminal and middle) domains

Domain ID domain_id	d2cx9b1
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.3 — Acyl-CoA dehydrogenase C-terminal domain-like
Family Family family	a.29.3.1 — Medium chain acyl-CoA dehydrogenase-like, C-terminal domain

Domain ID domain_id	d2cx9b2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.6 — Acyl-CoA dehydrogenase NM domain-like
Superfamily Superfamily superfamily	e.6.1 — Acyl-CoA dehydrogenase NM domain-like
Family Family family	e.6.1.1 — Medium chain acyl-CoA dehydrogenase, NM (N-terminal and middle) domains

Domain ID domain_id	d2cx9c1
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.3 — Acyl-CoA dehydrogenase C-terminal domain-like
Family Family family	a.29.3.1 — Medium chain acyl-CoA dehydrogenase-like, C-terminal domain

Domain ID domain_id	d2cx9c2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.6 — Acyl-CoA dehydrogenase NM domain-like
Superfamily Superfamily superfamily	e.6.1 — Acyl-CoA dehydrogenase NM domain-like
Family Family family	e.6.1.1 — Medium chain acyl-CoA dehydrogenase, NM (N-terminal and middle) domains

Domain ID domain_id	d2cx9d1
Class class	a — All alpha proteins
Fold Fold fold	a.29 — Bromodomain-like
Superfamily Superfamily superfamily	a.29.3 — Acyl-CoA dehydrogenase C-terminal domain-like
Family Family family	a.29.3.1 — Medium chain acyl-CoA dehydrogenase-like, C-terminal domain

Domain ID domain_id	d2cx9d2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.6 — Acyl-CoA dehydrogenase NM domain-like
Superfamily Superfamily superfamily	e.6.1 — Acyl-CoA dehydrogenase NM domain-like
Family Family family	e.6.1.1 — Medium chain acyl-CoA dehydrogenase, NM (N-terminal and middle) domains

CATH v4.4 (12 domains)

Domain ID domain_id	2cx9A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	540 — Butyryl-Coa Dehydrogenase, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acyl-CoA dehydrogenase/oxidase, N-terminal domain

Domain ID domain_id	2cx9A02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	110 — Butyryl-CoA Dehydrogenase, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 2

Domain ID domain_id	2cx9A03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	2cx9B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	540 — Butyryl-Coa Dehydrogenase, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acyl-CoA dehydrogenase/oxidase, N-terminal domain

Domain ID domain_id	2cx9B02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	110 — Butyryl-CoA Dehydrogenase, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 2

Domain ID domain_id	2cx9B03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	2cx9C01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	540 — Butyryl-Coa Dehydrogenase, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acyl-CoA dehydrogenase/oxidase, N-terminal domain

Domain ID domain_id	2cx9C02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	110 — Butyryl-CoA Dehydrogenase, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 2

Domain ID domain_id	2cx9C03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

Domain ID domain_id	2cx9D01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	540 — Butyryl-Coa Dehydrogenase, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acyl-CoA dehydrogenase/oxidase, N-terminal domain

Domain ID domain_id	2cx9D02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	110 — Butyryl-CoA Dehydrogenase, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 2

Domain ID domain_id	2cx9D03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	10 — Butyryl-CoA Dehydrogenase, subunit A, domain 3

▶

Unit-cell length a length_a	75.685 Å
Unit-cell length b length_b	88.637 Å
Unit-cell length c length_c	119.557 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.15 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	49.550 Å
R factor r_factor	0.2370
R_work r_work	0.2370
R_free r_free	0.2720
