SAXSdb — 2d30

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

cytidine deaminase

Bacillus anthracis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ZINC ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q81LT6_BACAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 10–141； UniProt 1–132 Author chain B； PDBConstruct 10–141； UniProt 1–132

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2d30
Deposition date deposition_date	2005-09-21
Structure title title	Crystal Structure of Cytidine Deaminase Cdd-2 (BA4525) from Bacillus Anthracis at 2.40A Resolution
Keywords keywords	;Purines, pyrimidines, nucleosides, nucleotides, salvage of nucleosides and nucleotides, Structural Genomics, Structural Proteomics in Europe, SPINE, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2d30__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2d30__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

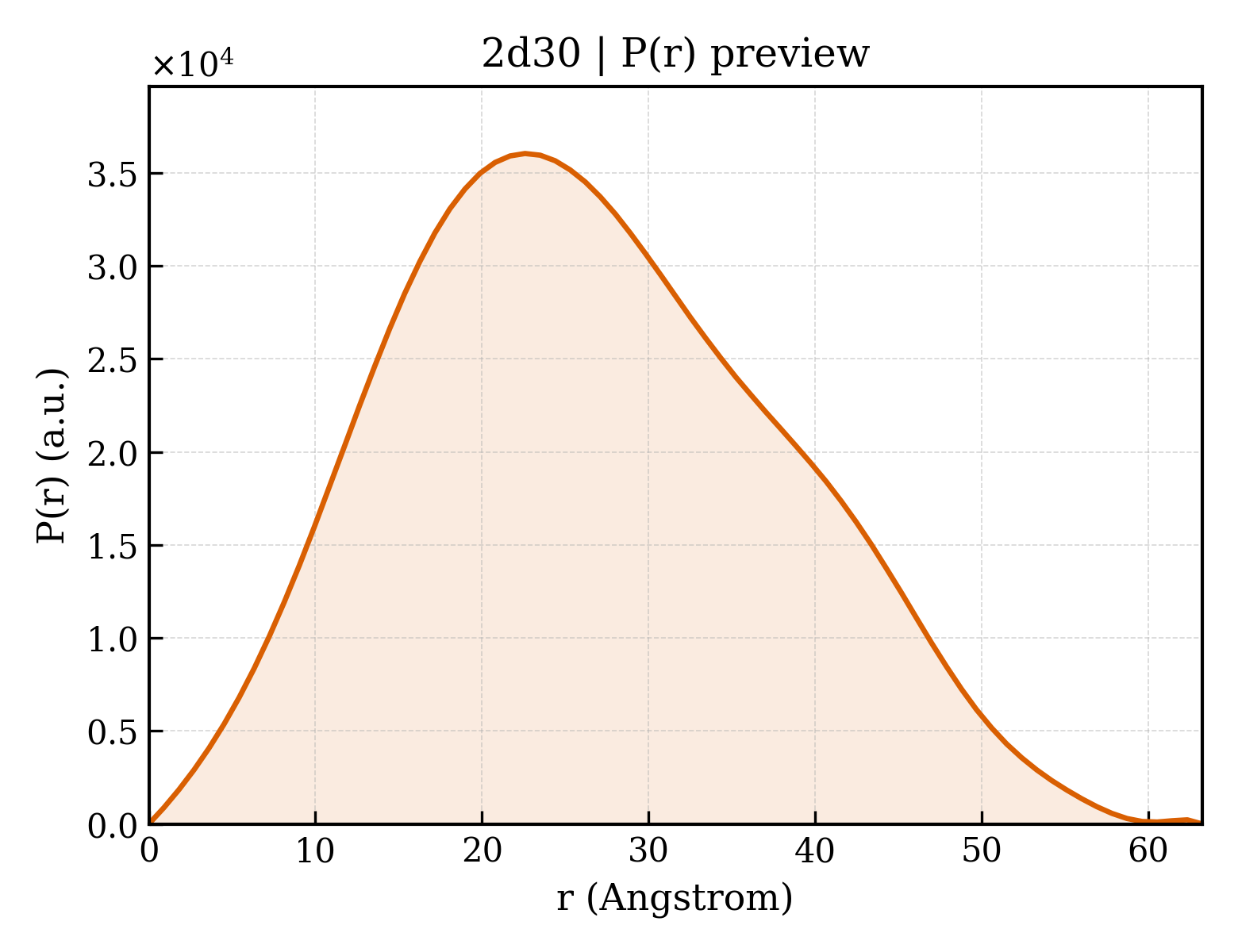

2d30__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.40 Å
Rg (electron density)	22.44 Å
Total Rg	23.19 Å
Atom count	3764
Residues	496
Excluded volume	67245 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2d30__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	cytidine deaminase
Molecular weight formula_weight	15501.6 kDa
EC 编号 ec_number	3.5.4.5
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2017

GSSHHHHHHMNSKQLIQEAIEARKQAYVPYSKFQVGAALLTQDGKVYRGCNVENASYGLCNCAERTALFKAVSEGDKEFVAIAIVADTKRPVPPCGACRQVMVELCKQDTKVYLSNLHGDVQETTVGELLPGAFLAEDLHE

Source Source

Source organism organism	Bacillus anthracis
NCBI taxonomy ID ncbi_taxonomy_id	1392
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	135

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2d30a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.1 — Cytidine deaminase

Domain ID domain_id	d2d30b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.1 — Cytidine deaminase

CATH v4.4 (2 domains)

Domain ID domain_id	2d30A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	2d30B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

▶

Unit-cell length a length_a	99.792 Å
Unit-cell length b length_b	50.552 Å
Unit-cell length c length_c	70.438 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	132.10 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	27.890 Å
R factor r_factor	0.1683
R_work r_work	0.1643
R_free r_free	0.2507
