2d3t

Fatty Acid beta-oxidation multienzyme complex from Pseudomonas Fragi, Form V

Method: X-RAY DIFFRACTION D_max: 126.2 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

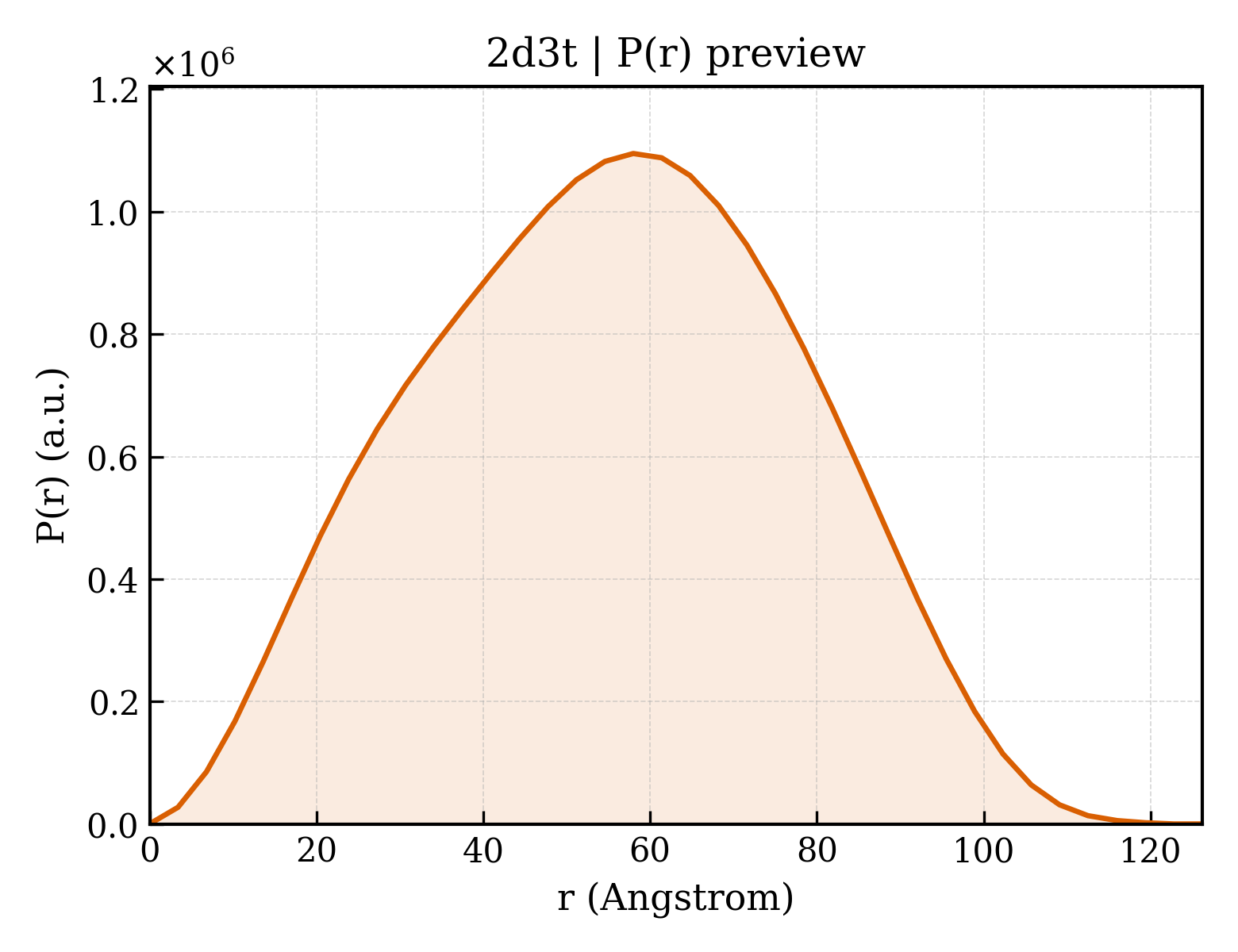

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2d3t
沉积日期 deposition_date	2005-10-01
结构标题 title	Fatty Acid beta-oxidation multienzyme complex from Pseudomonas Fragi, Form V
关键词 keywords	alpha2beta2 heterotetrameric complex, LYASE, OXIDOREDUCTASE-TRANSFERASE COMPLEX; LYASE, OXIDOREDUCTASE/TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.40 Å
回转半径 Rg (电子) rg_electron	41.91 Å
零角强度 I(0) i0	837687000.00
分子量 molecular_weight	238950.0 kDa
排除体积 excluded_volume	299590 Å³
包络体积 envelope_volume	402520 Å³
水化壳体积 shell_volume	77057 Å³
包络直径 envelope_diameter	127.8 Å
壳层 Rg shell_rg	50.17 Å
包络 Rg envelope_rg	40.54 Å
形状 Rg shape_rg	41.94 Å
总 Rg total_rg	42.17 Å
总原子数 total_atoms	16734
残基数 n_residues	2199
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.2 Å
Rg (实空间) rg_real	42.13 Å
Rg 误差 (实空间) rg_real_error	0.69 Å
I(0) (实空间) i0_real	8.3770e+08
I(0) 误差 (实空间) i0_real_error	1.3760e+07
Rg (倒空间) rg_reciprocal	42.40 Å
I(0) (倒空间) i0_reciprocal	837900000.0000
解质量估计 total_estimate	0.9013
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	58.0 Å
偏度 Skewness skewness	-0.006
峰度 Kurtosis kurtosis	-0.659
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	106400000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.964; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.841

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Fatty oxidation complex alpha subunit
分子量 formula_weight	77232.3 kDa
EC 编号 ec_number	4.2.1.17, 5.3.3.8, 1.1.1.35, 5.1.2.3
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	16734

MIYEGKAITVTALESGIVELKFDLKGESVNKFNRLTLNELRQAVDAIKADASVKGVIVSSGKDVFIVGADITEFVENFKLPDAELIAGNLEANKIFSDFEDLNVPTVAAINGIALGGGLEMCLAADFRVMADSAKIGLPEVKLGIYPGFGGTVRLPRLIGVDNAVEWIASGKENRAEDALKVSAVDAVVTADKLGAAALDLIKRAISGELDYKAKRQPKLEKLKLNAIEQMMAFETAKGFVAGQAGPNYPAPVEAIKTIQKAANFGRDKALEVEAAGFAKLAKTSASNCLIGLFLNDQELKKKAKVYDKIAKDVKQAAVLGAGIMGGGIAYQSASKGTPILMKDINEHGIEQGLAEAAKLLVGRVDKGRMTPAKMAEVLNGIRPTLSYGDFGNVDLVVEAVVENPKVKQAVLAEVENHVREDAILASNTSTISISLLAKALKRPENFVGMHFFNPVHMMPLVEVIRGEKSSDLAVATTVAYAKKMGKNPIVVNDCPGFLVNRVLFPYFGGFAKLVSAGVDFVRIDKVMEKFGWPMGPAYLMDVVGIDTGHHGRDVMAEGFPDRMKDDRRSAIDALYEAKRLGQKNGKGFYAYEADKKGKQKKLVDSSVLEVLKPIVYEQRDVTDEDIINWMMIPLCLETVRCLEDGIVETAAEADMGLVYGIGFPLFRGGALRYIDSIGVAEFVALADQYAELGALYHPTAKLREMAKNGQSFFG

来源 Source

来源生物 organism	Pseudomonas fragi
NCBI 分类编号 ncbi_taxonomy_id	296
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	3-ketoacyl-CoA thiolase
分子量 formula_weight	41522.7 kDa
EC 编号 ec_number	2.3.1.16
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

SLNPRDVVIVDFGRTPMGRSKGGMHRNTRAEDMSAHLISKVLERNSKVDPGEVEDVIWGCVNQTLEQGWNIARMASLMTQIPHTSAAQTVSRLCGSSMSALHTAAQAIMTGNGDVFVVGGVEHMGHVSMMHGVDPNPHMSLYAAKASGMMGLTAEMLGKMHGISREQQDAFAVRSHQLAHKATVEGKFKDEIIPMQGYDENGFLKIFDYDETIRPDTTLESLAALKPAFNPKGGTVTAGTSSQITDGASCMIVMSAQRAKDLGLEPLAVIRSMAVAGVDPAIMGYGPVPATQKALKRAGLNMADIDFIELNEAFAAQALPVLKDLKVLDKMNEKVNLHGGAIALGHPFGCSGARISGTLLNVMKQNGGTFGLSTMCIGLGQGIATVFERV

来源 Source

来源生物 organism	Pseudomonas fragi
NCBI 分类编号 ncbi_taxonomy_id	296
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	ACETYL COENZYME *A
分子量 formula_weight	809.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 22 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d2d3ta1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
超家族 Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
家族 Family family	a.100.1.3 — HCDH C-domain-like

结构域编号 domain_id	d2d3ta2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
超家族 Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
家族 Family family	a.100.1.3 — HCDH C-domain-like

结构域编号 domain_id	d2d3ta3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d2d3ta4
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.3 — Crotonase-like

结构域编号 domain_id	d2d3tb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
超家族 Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
家族 Family family	a.100.1.3 — HCDH C-domain-like

结构域编号 domain_id	d2d3tb2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
超家族 Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
家族 Family family	a.100.1.3 — HCDH C-domain-like

结构域编号 domain_id	d2d3tb3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

结构域编号 domain_id	d2d3tb4
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.14 — ClpP/crotonase
超家族 Superfamily superfamily	c.14.1 — ClpP/crotonase
家族 Family family	c.14.1.3 — Crotonase-like

结构域编号 domain_id	d2d3tc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2d3tc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2d3td1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d2d3td2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

CATH v4.4 (10 domains)

结构域编号 domain_id	2d3tA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2d3tA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2d3tA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1040 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2d3tB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

结构域编号 domain_id	2d3tB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	2d3tB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1040 — N-(1-d-carboxylethyl)-l-norvaline Dehydrogenase; domain 2
同源超家族 H-superfamily homologous superfamily	50 —

结构域编号 domain_id	2d3tC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2d3tC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2d3tD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	2d3tD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	95.227 Å
晶胞边长 b length_b	137.552 Å
晶胞边长 c length_c	198.139 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.400 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.2480
R_work r_work	0.2420
R_free r_free	0.2950
