SAXSdb — 2d4c

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2d4c
沉积日期 deposition_date	2005-10-13
结构标题 title	Crystal structure of the endophilin BAR domain mutant
关键词 keywords	BAR domain, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.06 Å
回转半径 Rg (电子) rg_electron	56.90 Å
零角强度 I(0) i0	162665000.00
分子量 molecular_weight	102750.0 kDa
排除体积 excluded_volume	128020 Å³
包络体积 envelope_volume	184820 Å³
水化壳体积 shell_volume	33524 Å³
包络直径 envelope_diameter	232.9 Å
壳层 Rg shell_rg	44.23 Å
包络 Rg envelope_rg	58.22 Å
形状 Rg shape_rg	56.93 Å
总 Rg total_rg	56.29 Å
总原子数 total_atoms	7205
残基数 n_residues	898
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	220.8 Å
Rg (实空间) rg_real	56.47 Å
Rg 误差 (实空间) rg_real_error	4.88 Å
I(0) (实空间) i0_real	1.6270e+08
I(0) 误差 (实空间) i0_real_error	3.9240e+06
Rg (倒空间) rg_reciprocal	53.94 Å
I(0) (倒空间) i0_reciprocal	162100000.0000
解质量估计 total_estimate	0.6528
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.4 Å
偏度 Skewness skewness	0.797
峰度 Kurtosis kurtosis	0.123
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4956000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.195; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.105; Smooth: 0.796

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	SH3-containing GRB2-like protein 2
分子量 formula_weight	29056.2 kDa
EC 编号 ec_number	2.3.1.-
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	7402

GPLGSMSVAGLKKQFHKATQKVSEKVGGAEGTKLDDDFKEMERKVDVTSRAVMEIMTKTIEYLQPNPASRAKLSMINTMSKIRGQEKGPGYPQAEALLAEAMLKFGRELGDDCNFGPALGEVGEAMRELSEVKDSLDIEVKQNFIDPLQNLHDKDLREIQSALQHHLKKLEGRRLDFDYKKKRQGKIPDEELRQALEKFDESKEIAESSMFNLLEMDIEQVSQLSALVQAQLEYHKQAVQILQQVTVRLEERIRQA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	197

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2d4ca1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.238 — BAR/IMD domain-like
超家族 Superfamily superfamily	a.238.1 — BAR/IMD domain-like
家族 Family family	a.238.1.1 — BAR domain

结构域编号 domain_id	d2d4cb_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.238 — BAR/IMD domain-like
超家族 Superfamily superfamily	a.238.1 — BAR/IMD domain-like
家族 Family family	a.238.1.1 — BAR domain

结构域编号 domain_id	d2d4cc_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.238 — BAR/IMD domain-like
超家族 Superfamily superfamily	a.238.1 — BAR/IMD domain-like
家族 Family family	a.238.1.1 — BAR domain

结构域编号 domain_id	d2d4cd_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.238 — BAR/IMD domain-like
超家族 Superfamily superfamily	a.238.1 — BAR/IMD domain-like
家族 Family family	a.238.1.1 — BAR domain

CATH v4.4 (4 domains)

结构域编号 domain_id	2d4cA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
同源超家族 H-superfamily homologous superfamily	60 — Arfaptin homology (AH) domain/BAR domain

结构域编号 domain_id	2d4cB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
同源超家族 H-superfamily homologous superfamily	60 — Arfaptin homology (AH) domain/BAR domain

结构域编号 domain_id	2d4cC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
同源超家族 H-superfamily homologous superfamily	60 — Arfaptin homology (AH) domain/BAR domain

结构域编号 domain_id	2d4cD00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
同源超家族 H-superfamily homologous superfamily	60 — Arfaptin homology (AH) domain/BAR domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	44.344 Å
晶胞边长 b length_b	212.217 Å
晶胞边长 c length_c	54.317 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	96.97 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2170
R_work r_work	0.2150
R_free r_free	0.2700

fit	/app/data/saxs_computation/d4/2d4c/2d4c.fit
pddf	/app/data/pr_computation/d4/2d4c/2d4c.pr.out
profile	/app/data/saxs_computation/d4/2d4c/2d4c.dat

Crystal structure of the endophilin BAR domain mutant

SAXS 散射曲线 SAXS Profile

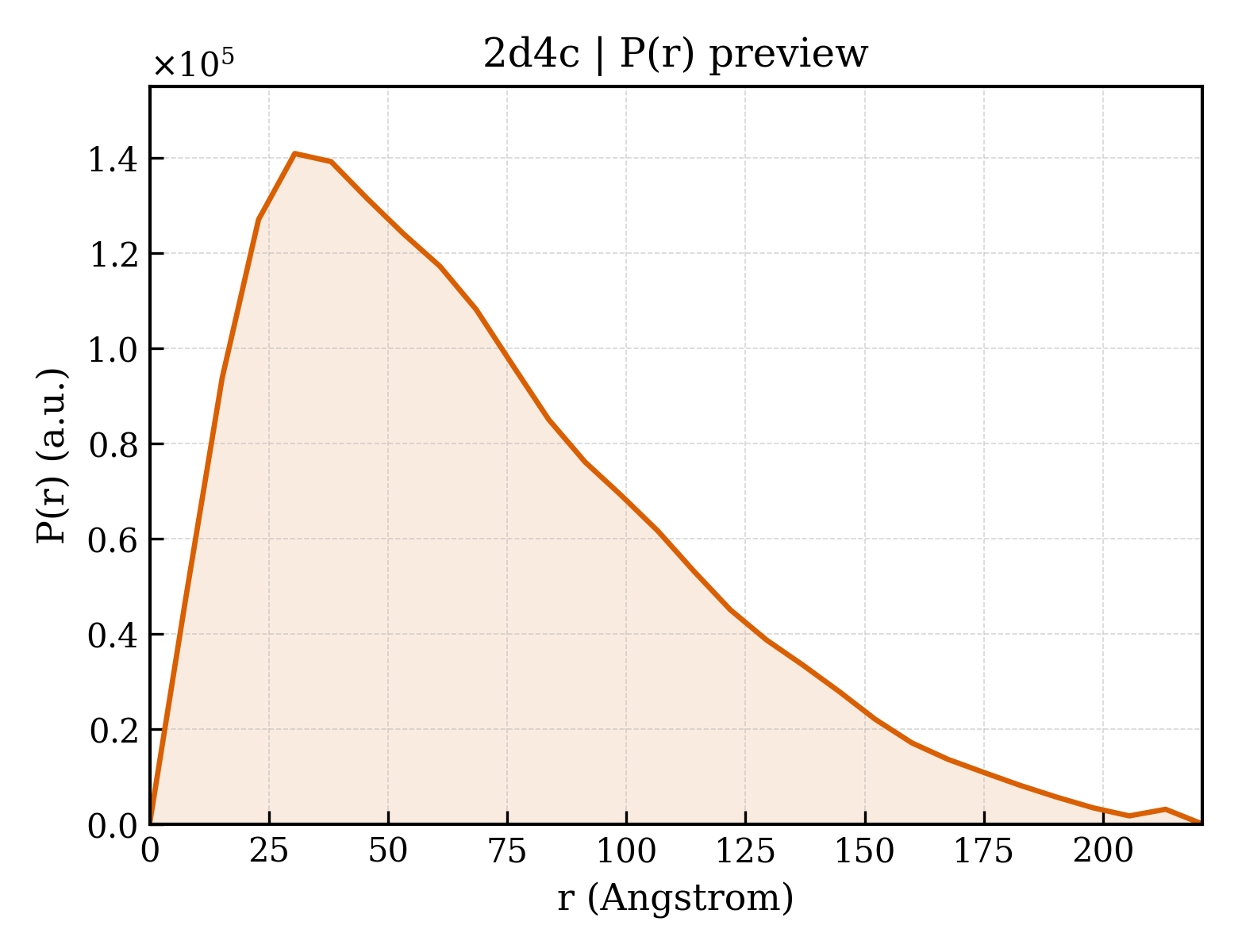

P(r) 距离分布 P(r) Distribution
