2d5h

Crystal Structure of Recombinant Soybean Proglycinin A3B4 subunit, its Comparison with Mature Glycinin A3B4 subunit, Responsible for Hexamer Assembly

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

glycinin A3B4 subunit

Glycine max

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	CARBONATE ION × 3 MAGNESIUM ION × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	CARBONATE ION × 3 MAGNESIUM ION × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7GC77_SOYBN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–493； UniProt 25–517 Author chain B； PDBConstruct 1–493； UniProt 25–517 Author chain C； PDBConstruct 1–493； UniProt 25–517 Author chain D； PDBConstruct 1–493； UniProt 25–517 Author chain E； PDBConstruct 1–493； UniProt 25–517 Author chain F； PDBConstruct 1–493； UniProt 25–517

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2d5h
Deposition date deposition_date	2005-11-01
Structure title title	Crystal Structure of Recombinant Soybean Proglycinin A3B4 subunit, its Comparison with Mature Glycinin A3B4 subunit, Responsible for Hexamer Assembly
Keywords keywords	GLYCININ, SOYBEAN, GLOBULIN, 11S, SEED STORAGE PROTEIN, PLANT PROTEIN; PLANT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2d5h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2d5h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

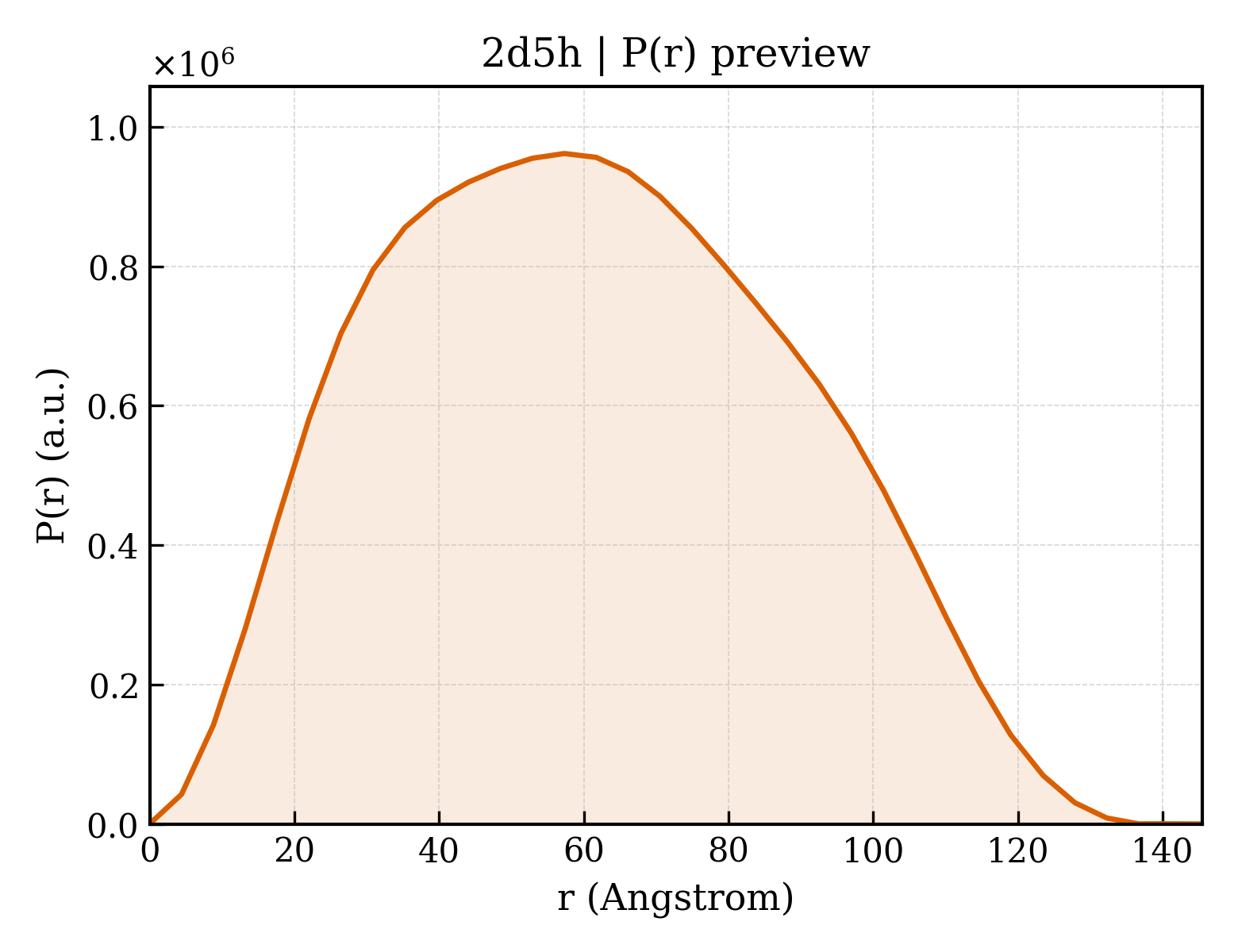

2d5h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.93 Å
Rg (electron density)	31.81 Å
Total Rg	32.43 Å
Atom count	8777
Residues	1113
Excluded volume	154350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2d5h__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2d5h__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	glycinin A3B4 subunit
Molecular weight formula_weight	55752.0 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	17703

ITSSKFNECQLNNLNALEPDHRVESEGGLIETWNSQHPELQCAGVTVSKRTLNRNGLHLPSYSPYPQMIIVVQGKGAIGFAFPGCPETFEKPQQQSSRRGSRSQQQLQDSHQKIRHFNEGDVLVIPPGVPYWTYNTGDEPVVAISLLDTSNFNNQLDQNPRVFYLAGNPDIEHPETMQQQQQQKSHGGRKQGQHQQQEEEGGSVLSGFSKHFLAQSFNTNEDTAEKLRSPDDERKQIVTVEGGLSVISPKWQEQEDEDEDEDEEYEQTPSYPPRRPSHGKHEDDEDEDEEEDQPRPDHPPQRPSRPEQQEPRGRGCQTRNGVEENICTMKLHENIARPSRADFYNPKAGRISTLNSLTLPALRQFGLSAQYVVLYRNGIYSPHWNLNANSVIYVTRGKGRVRVVNCQGNAVFDGELRRGQLLVVPQNFVVAEQGGEQGLEYVVFKTHHNAVSSYIKDVFRAIPSEVLSNSYNLGQSQVRQLKYQGNSGPLVNP

Source Source

Source organism organism	Glycine max
Common name common_name	soybean
NCBI taxonomy ID ncbi_taxonomy_id	3847
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CARBONATE ION
Molecular weight formula_weight	60.0 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	6

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2d5ha1
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5ha2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5hb1
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5hb2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5hc1
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5hc2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5hd1
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5hd2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5he1
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5he2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5hf1
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

Domain ID domain_id	d2d5hf2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.1 — RmlC-like cupins
Family Family family	b.82.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id	2d5hA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hE01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hE02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	2d5hF02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

▶

Unit-cell length a length_a	89.378 Å
Unit-cell length b length_b	223.738 Å
Unit-cell length c length_c	88.660 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	119.85 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2480
R_work r_work	0.2480
R_free r_free	0.3250
