2d5n

Crystal structure of a bifunctional deaminase and reductase involved in riboflavin biosynthesis

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Riboflavin biosynthesis protein ribD

Bacillus subtilis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ZINC ION × 4 NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RIBD_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–373； UniProt 1–361 Author chain B； PDBConstruct 13–373； UniProt 1–361 Author chain C； PDBConstruct 13–373； UniProt 1–361 Author chain D； PDBConstruct 13–373； UniProt 1–361

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2d5n
Deposition date deposition_date	2005-11-02
Structure title title	Crystal structure of a bifunctional deaminase and reductase involved in riboflavin biosynthesis
Keywords keywords	alpha/beta/alpha; two separate functional domains, HYDROLASE, OXIDOREDUCTASE; HYDROLASE, OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2d5n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2d5n__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

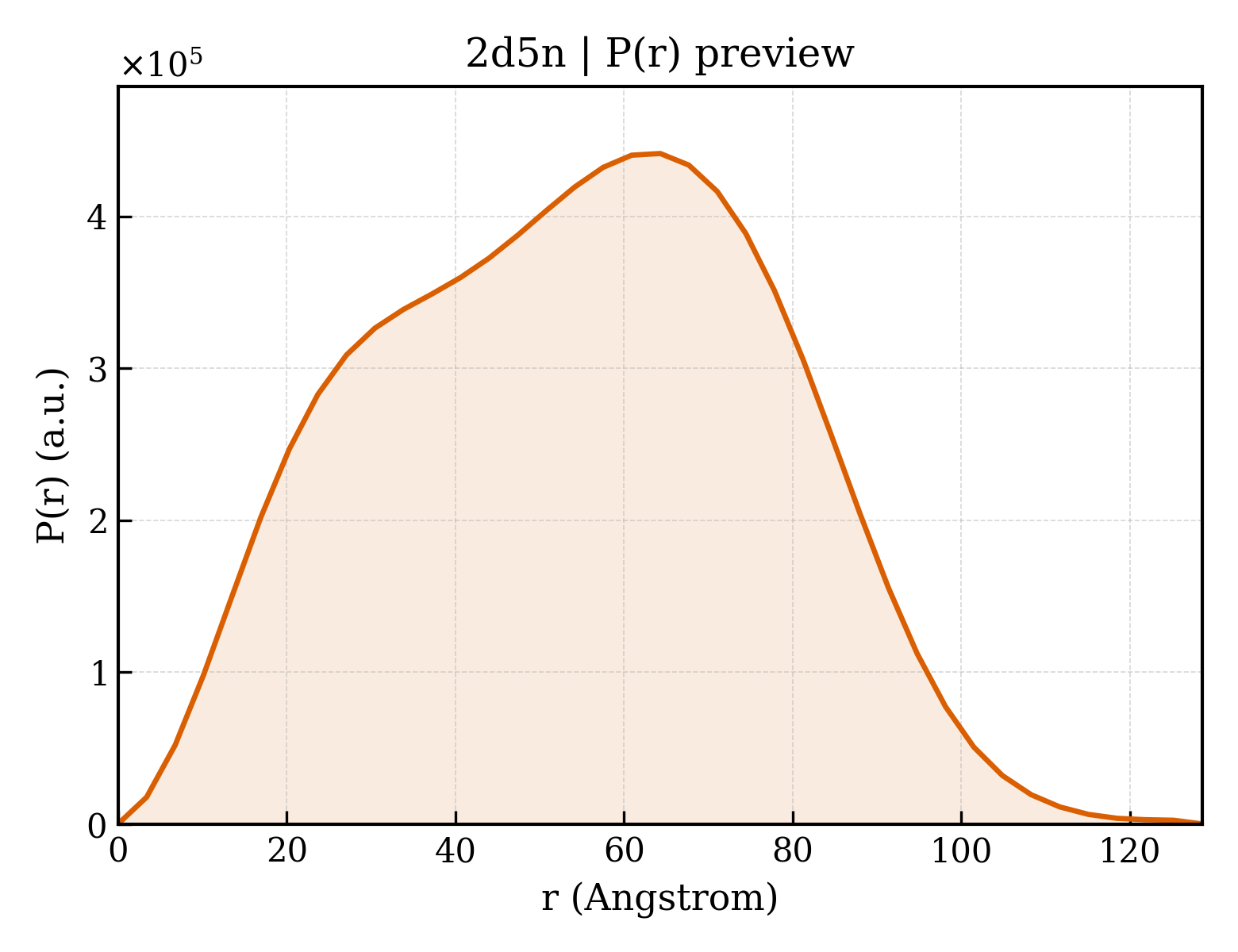

2d5n__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.87 Å
Rg (electron density)	41.09 Å
Total Rg	41.53 Å
Atom count	11022
Residues	1437
Excluded volume	197560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2d5n__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Riboflavin biosynthesis protein ribD
Molecular weight formula_weight	40759.8 kDa
EC 编号 ec_number	3.5.4.26, 1.1.1.193
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11257

MRGSHHHHHHGSMEEYYMKLALDLAKQGEGQTESNPLVGAVVVKDGQIVGMGAHLKYGEAHAEVHAIHMAGAHAEGADIYVTLEPCSHYGKTPPCAELIINSGIKRVFVAMRDPNPLVAGRGISMMKEAGIEVREGILADQAERLNEKFLHFMRTGLPYVTLKAAASLDGKIATSTGDSKWITSEAARQDAQQYRKTHQSILVGVGTVKADNPSLTCRLPNVTKQPVRVILDTVLSIPEDAKVICDQIAPTWIFTTARADEEKKKRLSAFGVNIFTLETERIQIPDVLKILAEEGIMSVYVEGGSAVHGSFVKEGCFQEIIFYFAPKLIGGTHAPSLISGEGFQSMKDVPLLQFTDITQIGRDIKLTAKPTKE

Source Source

Source organism organism	Bacillus subtilis
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	745.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	235

▼

6. Fold Classification (SCOP + CATH) 17 domains

SCOP 2.08 (9 domains)

Domain ID domain_id	d2d5na1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.2 — RibD C-terminal domain-like

Domain ID domain_id	d2d5na2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.2 — Deoxycytidylate deaminase-like

Domain ID domain_id	d2d5nb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.2 — RibD C-terminal domain-like

Domain ID domain_id	d2d5nb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.2 — Deoxycytidylate deaminase-like

Domain ID domain_id	d2d5nc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.2 — RibD C-terminal domain-like

Domain ID domain_id	d2d5nc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.2 — Deoxycytidylate deaminase-like

Domain ID domain_id	d2d5nd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.2 — RibD C-terminal domain-like

Domain ID domain_id	d2d5nd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.2 — Deoxycytidylate deaminase-like

Domain ID domain_id	d2d5nd3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (8 domains)

Domain ID domain_id	2d5nA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	2d5nA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

Domain ID domain_id	2d5nB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	2d5nB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

Domain ID domain_id	2d5nC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	2d5nC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

Domain ID domain_id	2d5nD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	2d5nD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

▶

Unit-cell length a length_a	86.130 Å
Unit-cell length b length_b	107.952 Å
Unit-cell length c length_c	186.839 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.970 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2240
R_work r_work	0.2240
R_free r_free	0.2700
