2d8t
Solution structure of the RING domain of the human RING finger protein 146
SAXS 散射曲线 SAXS Profile

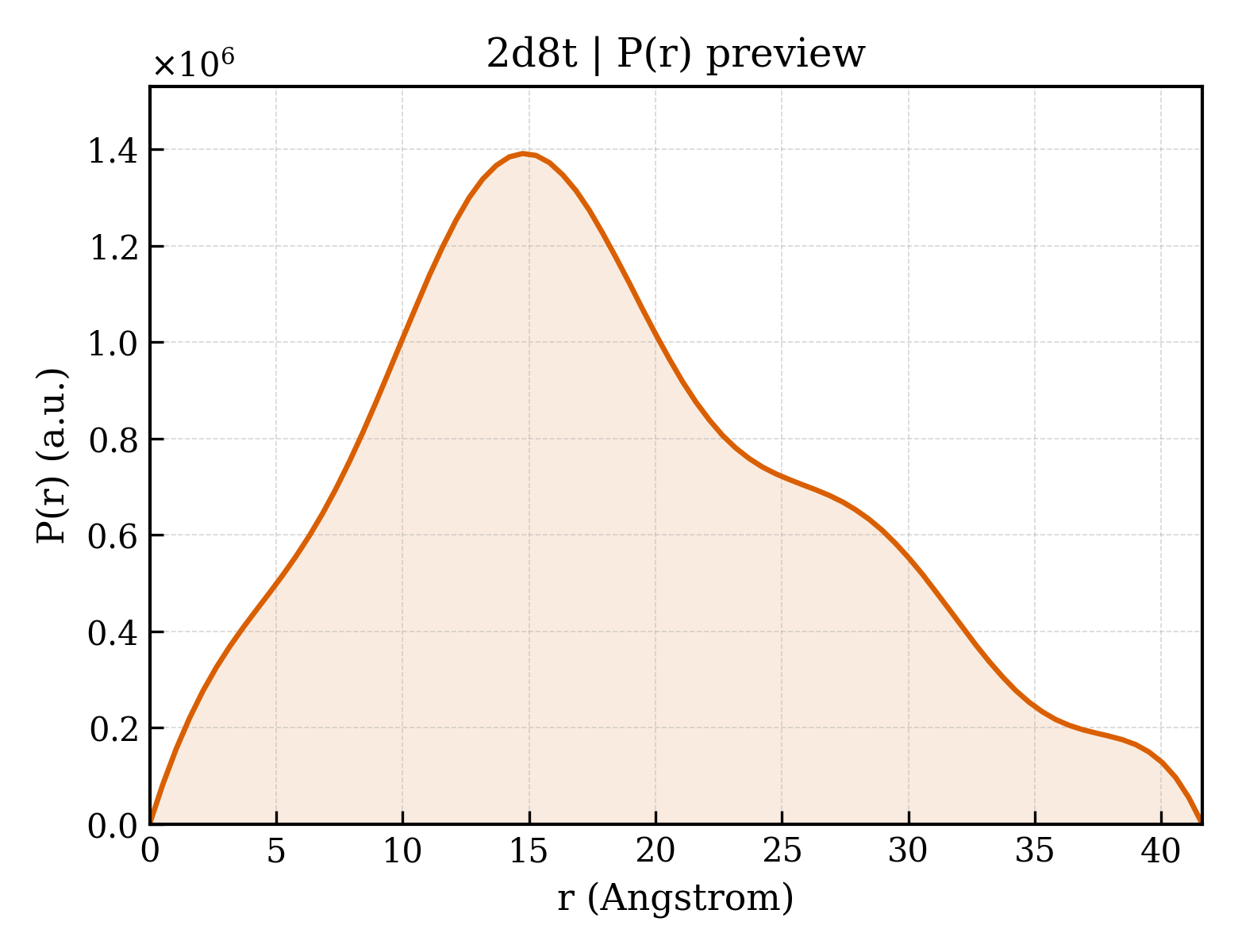

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2d8t |
| 沉积日期 deposition_date | 2005-12-08 |
| 结构标题 title | Solution structure of the RING domain of the human RING finger protein 146 |
| 关键词 keywords | ;RING finger protein 146, Dactylidin, RNF146, RING domain, structural genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, METAL BINDING PROTEIN ;; METAL BINDING PROTEIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 15.54 Å |
| 回转半径 Rg (电子) rg_electron | 14.79 Å |
| 零角强度 I(0) i0 | 371017000.00 |
| 分子量 molecular_weight | 150290.0 kDa |
| 排除体积 excluded_volume | 183240 ų |
| 包络体积 envelope_volume | 49877 ų |
| 水化壳体积 shell_volume | 18883 ų |
| 包络直径 envelope_diameter | 81.0 Å |
| 壳层 Rg shell_rg | 28.90 Å |
| 包络 Rg envelope_rg | 25.18 Å |
| 形状 Rg shape_rg | 14.88 Å |
| 总 Rg total_rg | 15.02 Å |
| 总原子数 total_atoms | 20180 |
| 残基数 n_residues | 1420 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 41.6 Å |
| Rg (实空间) rg_real | 14.15 Å |
| Rg 误差 (实空间) rg_real_error | 0.10 Å |
| I(0) (实空间) i0_real | 3.5210e+08 |
| I(0) 误差 (实空间) i0_real_error | 3.1730e+06 |
| Rg (倒空间) rg_reciprocal | 15.91 Å |
| I(0) (倒空间) i0_reciprocal | 371000000.0000 |
| 解质量估计 total_estimate | 0.6665 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 14.8 Å |
| 偏度 Skewness skewness | 0.380 |
| 峰度 Kurtosis kurtosis | -0.448 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 3.0000 |
| 最高正则化参数 α highest_alpha | 63530.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.018; Oscil: 0.918; Stabil: 0.987; Sysdev: 0.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.000 |
