2dcn

Crystal structure of 2-keto-3-deoxygluconate kinase from Sulfolobus tokodaii complexed with 2-keto-6-phosphogluconate (alpha-furanose form)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical fructokinase

Sulfolobus tokodaii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MAGNESIUM ION × 21 POTASSIUM ION × 6 6-O-phosphono-beta-D-psicofuranosonic acid × 6 ADENOSINE-5'-DIPHOSPHATE × 6 water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	MAGNESIUM ION × 23 POTASSIUM ION × 6 6-O-phosphono-beta-D-psicofuranosonic acid × 6 ADENOSINE-5'-DIPHOSPHATE × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q96XN9_SULTO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–311； UniProt 1–311 Author chain B； PDBConstruct 1–311； UniProt 1–311 Author chain C； PDBConstruct 1–311； UniProt 1–311 Author chain D； PDBConstruct 1–311； UniProt 1–311 Author chain E； PDBConstruct 1–311； UniProt 1–311 Author chain F； PDBConstruct 1–311； UniProt 1–311 Author chain G； PDBConstruct 1–311； UniProt 1–311 Author chain H； PDBConstruct 1–311； UniProt 1–311 Author chain I； PDBConstruct 1–311； UniProt 1–311 Author chain J； PDBConstruct 1–311； UniProt 1–311 Author chain K； PDBConstruct 1–311； UniProt 1–311 Author chain L； PDBConstruct 1–311； UniProt 1–311

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2dcn
Deposition date deposition_date	2006-01-10
Structure title title	Crystal structure of 2-keto-3-deoxygluconate kinase from Sulfolobus tokodaii complexed with 2-keto-6-phosphogluconate (alpha-furanose form)
Keywords keywords	2-keto-3-deoxygluconate kinase, sulfolobus tokodaii, 2-keto-D-gluconate, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2dcn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

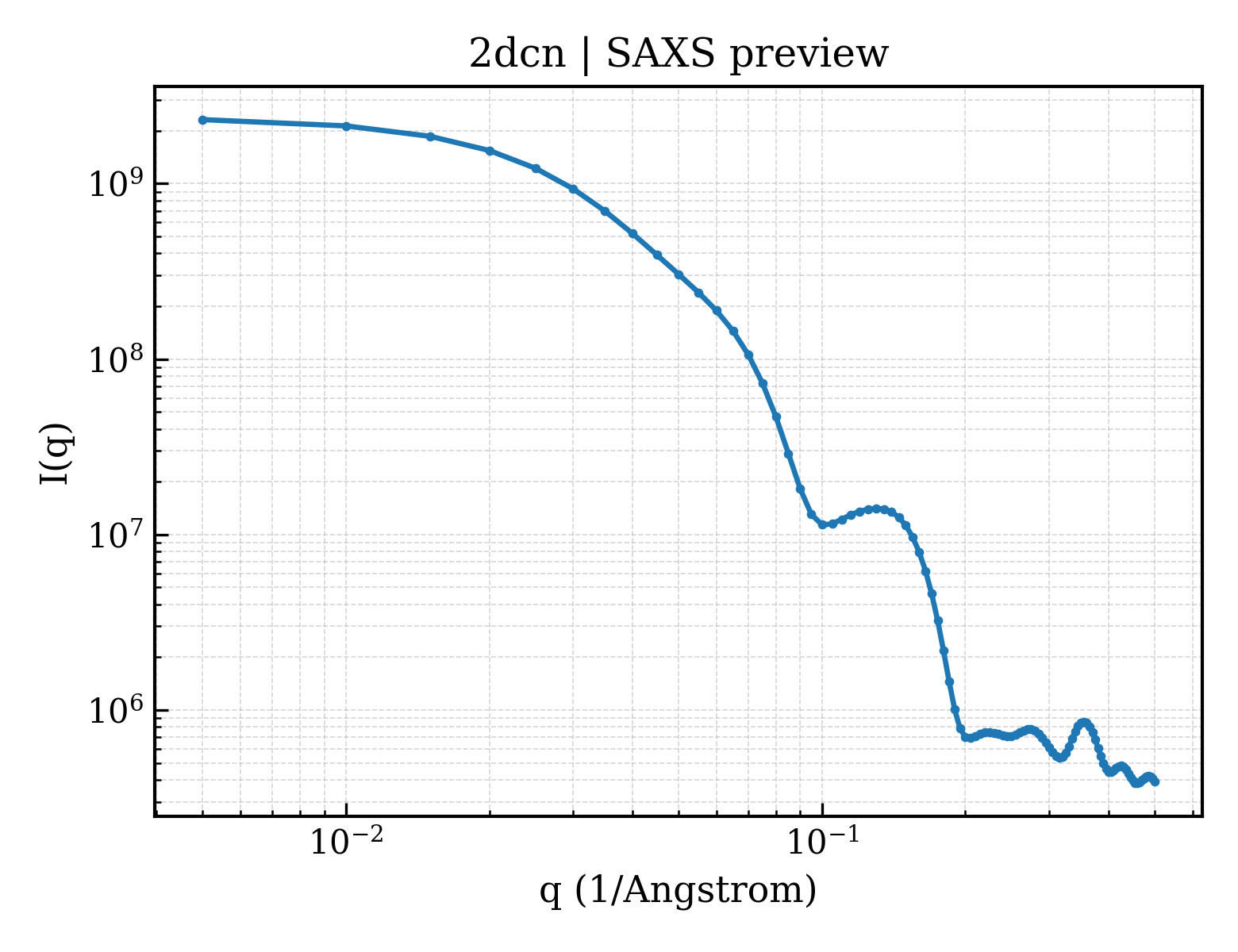

2dcn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

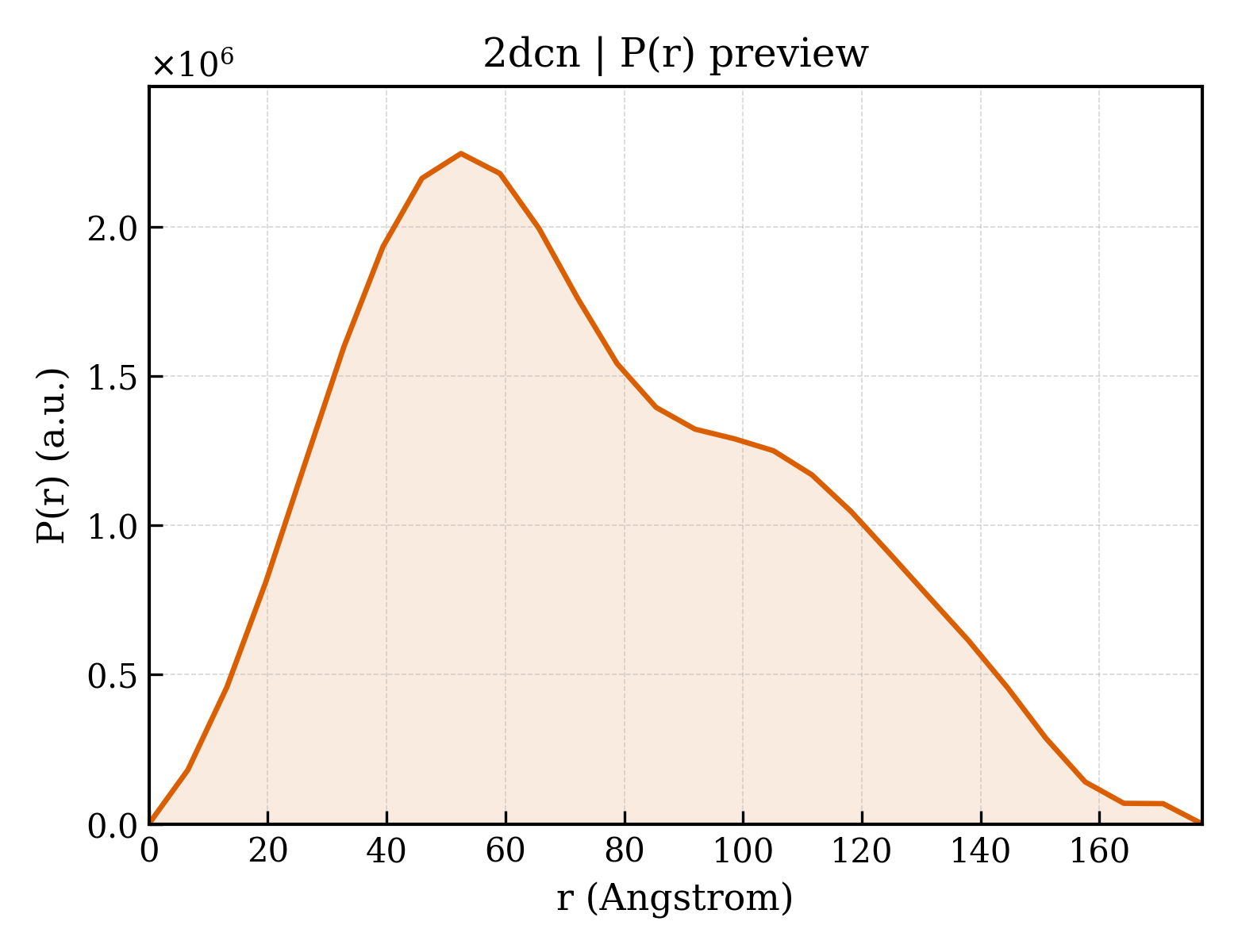

2dcn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.18 Å
Rg (electron density)	35.60 Å
Total Rg	36.14 Å
Atom count	14721
Residues	1848
Excluded volume	263230 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2dcn__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2dcn__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	hypothetical fructokinase
Molecular weight formula_weight	34523.3 kDa
EC 编号 ec_number	2.7.1.45
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	31709

MAKLITLGEILIEFNALSPGPLRHVSYFEKHVAGSEANYCVAFIKQGNECGIIAKVGDDEFGYNAIEWLRGQGVDVSHMKIDPSAPTGIFFIQRHYPVPLKSESIYYRKGSAGSKLSPEDVDEEYVKSADLVHSSGITLAISSTAKEAVYKAFEIASNRSFDTNIRLKLWSAEEAKREILKLLSKFHLKFLITDTDDSKIILGESDPDKAAKAFSDYAEIIVMKLGPKGAIVYYDGKKYYSSGYQVPVEDVTGAGDALGGTFLSLYYKGFEMEKALDYAIVASTLNVMIRGDQENLPTTKDIETFLREMKK

Source Source

Source organism organism	Sulfolobus tokodaii
NCBI taxonomy ID ncbi_taxonomy_id	273063
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	44

Entity 3 Entity 3 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 non-polymer

Description description	6-O-phosphono-beta-D-psicofuranosonic acid
Molecular weight formula_weight	274.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1930

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d2dcna1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.1 — Ribokinase-like

Domain ID domain_id	d2dcnb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcnc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcnd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcne_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcnf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcng_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcnh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcni_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcnj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcnk_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

Domain ID domain_id	d2dcnl_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.72 — Ribokinase-like
Superfamily Superfamily superfamily	c.72.1 — Ribokinase-like
Family Family family	c.72.1.0 — automated matches

CATH v4.4 (12 domains)

Domain ID domain_id	2dcnA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnH00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnJ00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnK00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

Domain ID domain_id	2dcnL00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase
Homologous superfamily homologous superfamily	20 — Ribokinase

▶

Unit-cell length a length_a	84.638 Å
Unit-cell length b length_b	150.229 Å
Unit-cell length c length_c	154.757 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.73 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	46.370 Å
R factor r_factor	0.1776
R_work r_work	0.1749
R_free r_free	0.2282

Crystal structure of 2-keto-3-deoxygluconate kinase from Sulfolobus tokodaii complexed with 2-keto-6-phosphogluconate (alpha-furanose form)

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical fructokinase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2dcn__assembly_1__model_1

2dcn__assembly_1__model_1 | I(q)

2dcn__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Crystal structure of 2-keto-3-deoxygluconate kinase from Sulfolobus tokodaii complexed with 2-keto-6-phosphogluconate (alpha-furanose form)

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical fructokinase

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2dcn__assembly_1__model_1

2dcn__assembly_1__model_1 | I(q)

2dcn__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)
