SAXSdb — 2dgj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein ebhA

Staphylococcus aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 ACETIC ACID × 1 GLYCEROL × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 ACETIC ACID × 1 GLYCEROL × 1 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 4 ACETIC ACID × 2 GLYCEROL × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q931R6_STAAM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–249； UniProt 756–1003 Author chain B； PDBConstruct 2–249； UniProt 756–1003

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2dgj
Deposition date deposition_date	2006-03-14
Structure title title	Crystal structure of EbhA (756-1003 domain) from Staphylococcus aureus
Keywords keywords	helix-bundle, rod-like structure, adhesin, CELL ADHESION; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2dgj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

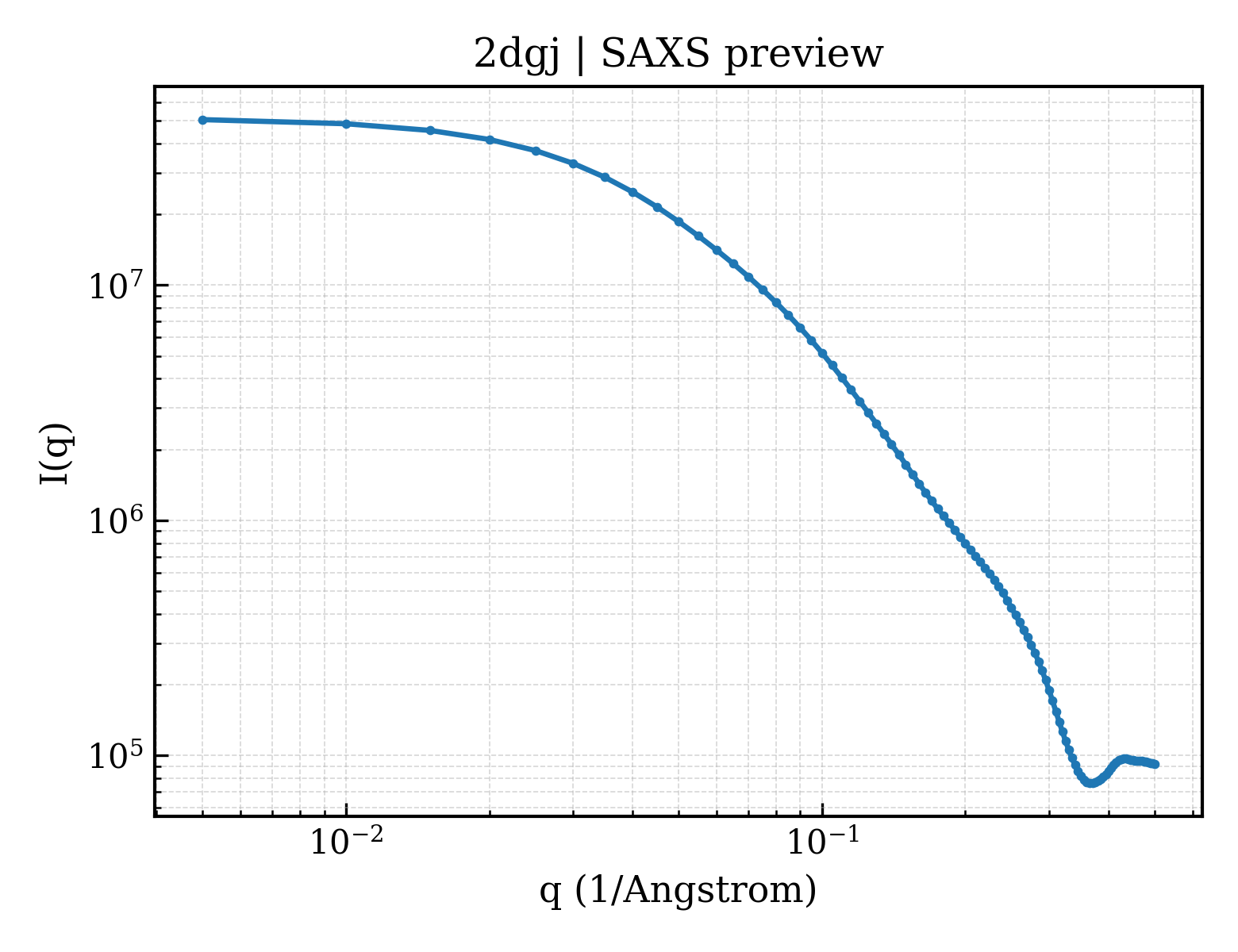

2dgj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2dgj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.97 Å
Rg (electron density)	40.82 Å
Total Rg	40.47 Å
Atom count	3649
Residues	485
Excluded volume	63405 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2dgj__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2dgj__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2dgj__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	hypothetical protein ebhA
Molecular weight formula_weight	27554.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3929

MAMGQLQHGIDDENATKQTQKYRDAEQSKKTAYDQAVAAAKAILNKQTGSNSDKAAVDRALQQVTSTKDALNGDAKLAEAKAAARQNLGTLNHITNAQRTALEGQINQATTVDGVNTVKTNANTLDGAMNSLQGAINDKDATLRNQNYLDADESKRNAYTQAVTAAEGILNKQTGGNTSKADVDNALNAVTRAKAALNGAENLRNAKTSATNTINGLPNLTQLQKDNLKHQVEQAQNVVGVNGVKDKGNLEHHHHHH

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	280

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2dgjA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1850 — Ebh helix bundles repeating unit (S and A modules)

Domain ID domain_id	2dgjA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1850 — Ebh helix bundles repeating unit (S and A modules)

Domain ID domain_id	2dgjB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1850 — Ebh helix bundles repeating unit (S and A modules)

Domain ID domain_id	2dgjB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1850 — Ebh helix bundles repeating unit (S and A modules)

▶

Unit-cell length a length_a	45.265 Å
Unit-cell length b length_b	161.848 Å
Unit-cell length c length_c	133.366 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	19.800 Å
R factor r_factor	0.2410
R_work r_work	0.2410
R_free r_free	0.2870

Crystal structure of EbhA (756-1003 domain) from Staphylococcus aureus
