2dhr

Whole cytosolic region of ATP-dependent metalloprotease FtsH (G399L)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FtsH

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	ADENOSINE-5'-DIPHOSPHATE × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9LCZ4_THETH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–499； UniProt 126–624 Author chain B； PDBConstruct 1–499； UniProt 126–624 Author chain C； PDBConstruct 1–499； UniProt 126–624 Author chain D； PDBConstruct 1–499； UniProt 126–624 Author chain E； PDBConstruct 1–499； UniProt 126–624 Author chain F； PDBConstruct 1–499； UniProt 126–624

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2dhr
Deposition date deposition_date	2006-03-24
Structure title title	Whole cytosolic region of ATP-dependent metalloprotease FtsH (G399L)
Keywords keywords	AAA+ protein, hexameric Zn metalloprotease, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2dhr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

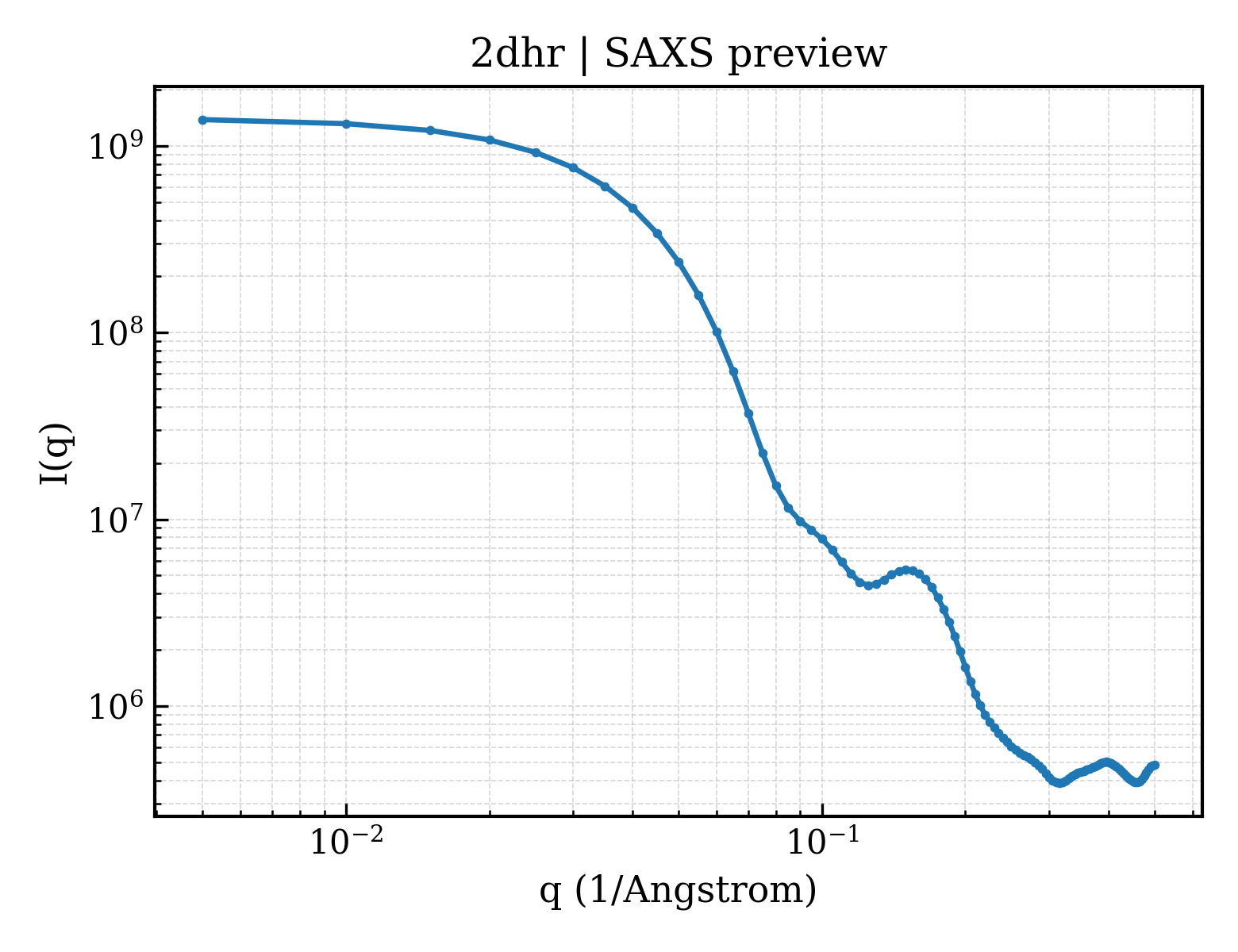

2dhr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

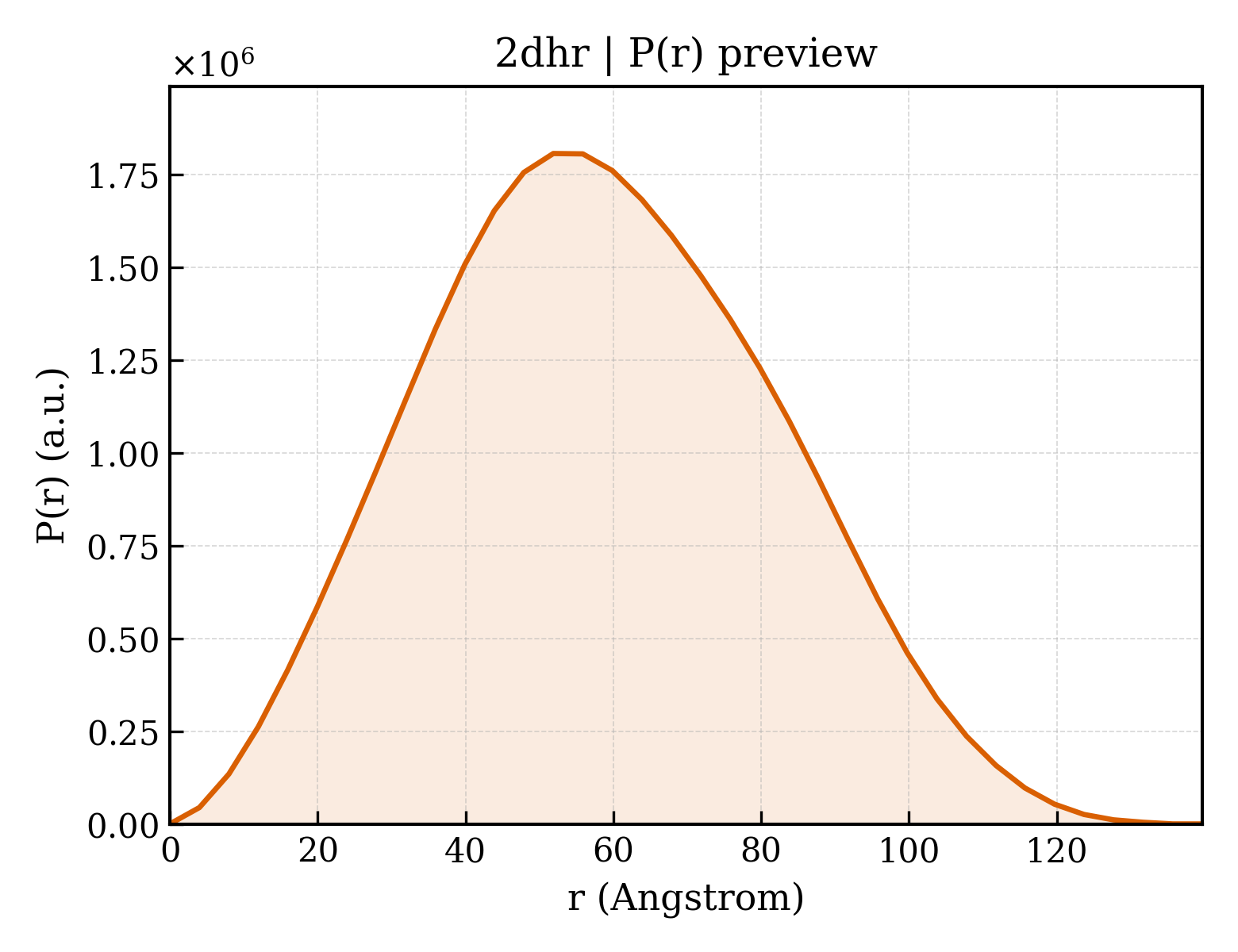

2dhr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.70 Å
Rg (electron density)	44.19 Å
Total Rg	44.63 Å
Atom count	21460
Residues	2715
Excluded volume	380690 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2dhr__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	FtsH
Molecular weight formula_weight	55369.3 kDa
Mutation mutation	G399L
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	21460

RNGRAGPSDSAFSFTKSRARVLTEAPKVTFKDVAGAEEAKEELKEIVEFLKNPSRFHEMGARIPKGVLLVGPPGVGKTHLARAVAGEARVPFITASGSDFVEMFVGVGAARVRDLFETAKRHAPCIVFIDEIDAVGRKRGSGVGGGNDEREQTLNQLLVEMDGFEKDTAIVVMAATNRPDILDPALLRPGRFDRQIAIDAPDVKGREQILRIHARGKPLAEDVDLALLAKRTPGFVGADLENLLNEAALLAAREGRRKITMKDLEEAADRVMMLPAKKSLVLSPRDRRITAYHEAGHALAAHFLEHADGVHKVTIVPRGRALGFMMPRREDMLHWSRKRLLDQIAVALAGRAAEEIVFDDVTTGAENDFRQATELARRMITEWGMHPEFGPVAYAVREDTYLGGYDVRQYSEETAKRIDEAVRRLIEEQYQRVKALLLEKREVLERVAETLLERETLTAEEFQRVVEGLPLEAPEEAREEREPPRVVPKVKPGGALGGA

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	6

▼

6. Fold Classification (SCOP + CATH) 18 domains

CATH v4.4 (18 domains)

Domain ID domain_id	2dhrA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2dhrA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	2dhrA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	760 — Peptidase M41

Domain ID domain_id	2dhrB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2dhrB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	2dhrB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	760 — Peptidase M41

Domain ID domain_id	2dhrC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2dhrC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	2dhrC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	760 — Peptidase M41

Domain ID domain_id	2dhrD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2dhrD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	2dhrD03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	760 — Peptidase M41

Domain ID domain_id	2dhrE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2dhrE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	2dhrE03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	760 — Peptidase M41

Domain ID domain_id	2dhrF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2dhrF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	2dhrF03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	760 — Peptidase M41

▶

Unit-cell length a length_a	146.153 Å
Unit-cell length b length_b	146.153 Å
Unit-cell length c length_c	349.064 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.900 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.3010
R_work r_work	0.2990
R_free r_free	0.3420
