SAXSdb — 2di4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell division protein ftsH homolog

Aquifex aeolicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MERCURY (II) ION × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FTSH_AQUAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–238； UniProt 405–634 Author chain B； PDBConstruct 9–238； UniProt 405–634

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2di4
Deposition date deposition_date	2006-03-28
Structure title title	Crystal structure of the FtsH protease domain
Keywords keywords	METALLOPROTEINASE, HEXAMER-RING, Hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2di4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2di4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

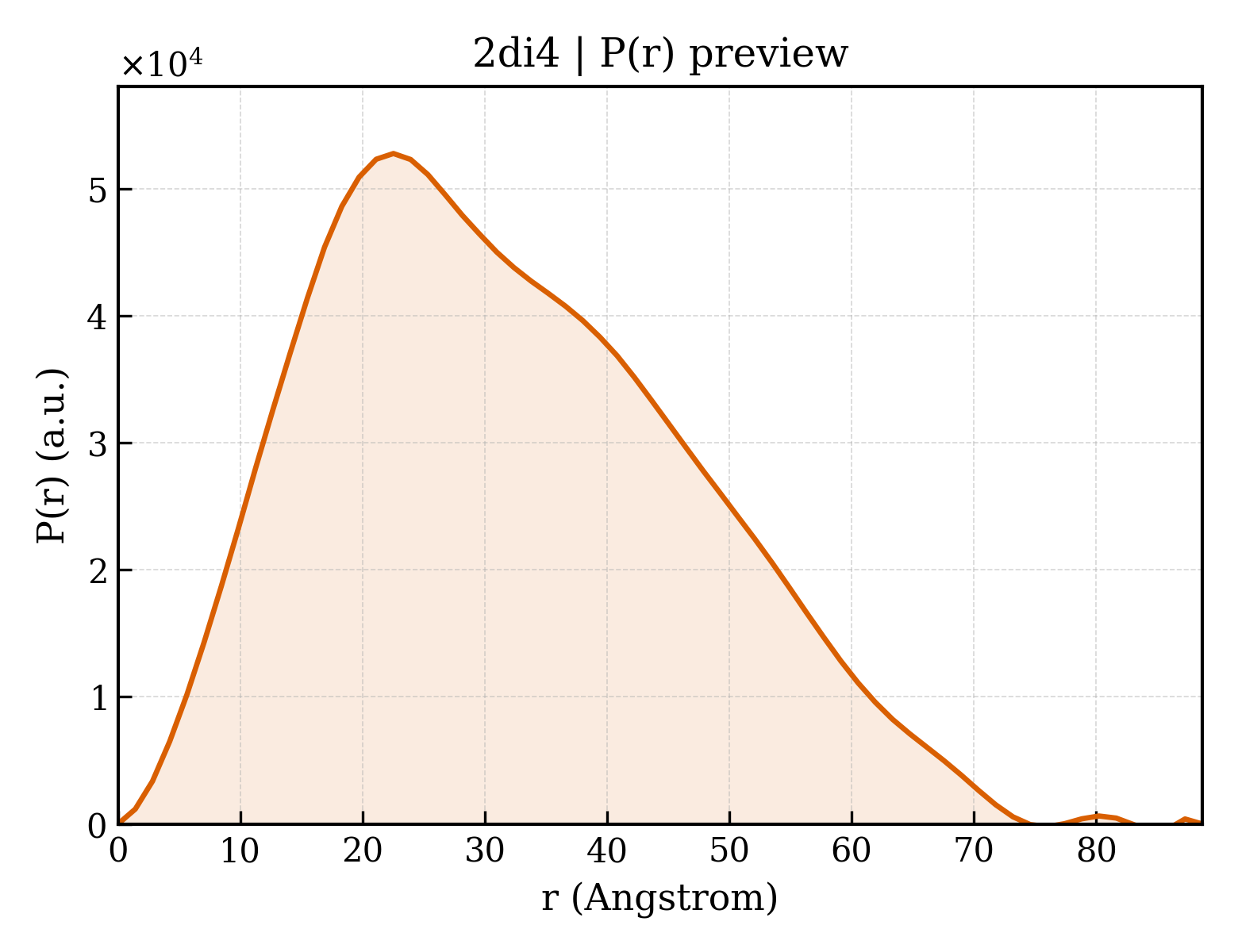

2di4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.77 Å
Rg (electron density)	37.76 Å
Total Rg	37.88 Å
Atom count	7890
Residues	1053
Excluded volume	140880 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2di4__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Cell division protein ftsH homolog
Molecular weight formula_weight	26966.1 kDa
EC 编号 ec_number	3.4.24.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2645

FQGPLGSHMTISPKEKEKIAIHEAGHALMGLVSDDDDKVHKISIIPRGMALGVTQQLPIEDKHIYDKKDLYNKILVLLGGRAAEEVFFGKDGITTGAENDLQRATDLAYRMVSMWGMSDKVGPIAIRRVANPFLGGMTTAVDTSPDLLREIDEEVKRIITEQYEKAKAIVEEYKEPLKAVVKKLLEKETITCEEFVEVFKLYGIELKDKCKKEELFDKDRKSEENKELKSEEVKEEVV

Source Source

Source organism organism	Aquifex aeolicus
NCBI taxonomy ID ncbi_taxonomy_id	63363
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	MERCURY (II) ION
Molecular weight formula_weight	200.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	15

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2di4a1
Class class	a — All alpha proteins
Fold Fold fold	a.269 — FtsH protease domain-like
Superfamily Superfamily superfamily	a.269.1 — FtsH protease domain-like
Family Family family	a.269.1.1 — FtsH protease domain-like

Domain ID domain_id	d2di4b_
Class class	a — All alpha proteins
Fold Fold fold	a.269 — FtsH protease domain-like
Superfamily Superfamily superfamily	a.269.1 — FtsH protease domain-like
Family Family family	a.269.1.1 — FtsH protease domain-like

CATH v4.4 (2 domains)

Domain ID domain_id	2di4A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	760 — Peptidase M41

Domain ID domain_id	2di4B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	760 — Peptidase M41

▶

Unit-cell length a length_a	116.800 Å
Unit-cell length b length_b	116.800 Å
Unit-cell length c length_c	63.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63
Space-group number int_tables_number	173
Crystal system crystal_system	—

Resolution resolution	2.790 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2544
R_work r_work	0.2509
R_free r_free	0.2990

Crystal structure of the FtsH protease domain
