2dlc

Crystal structure of the ternary complex of yeast tyrosyl-tRNA synthetase

Method: X-RAY DIFFRACTION D_max: 95.3 Å Quality: EXCELLENT

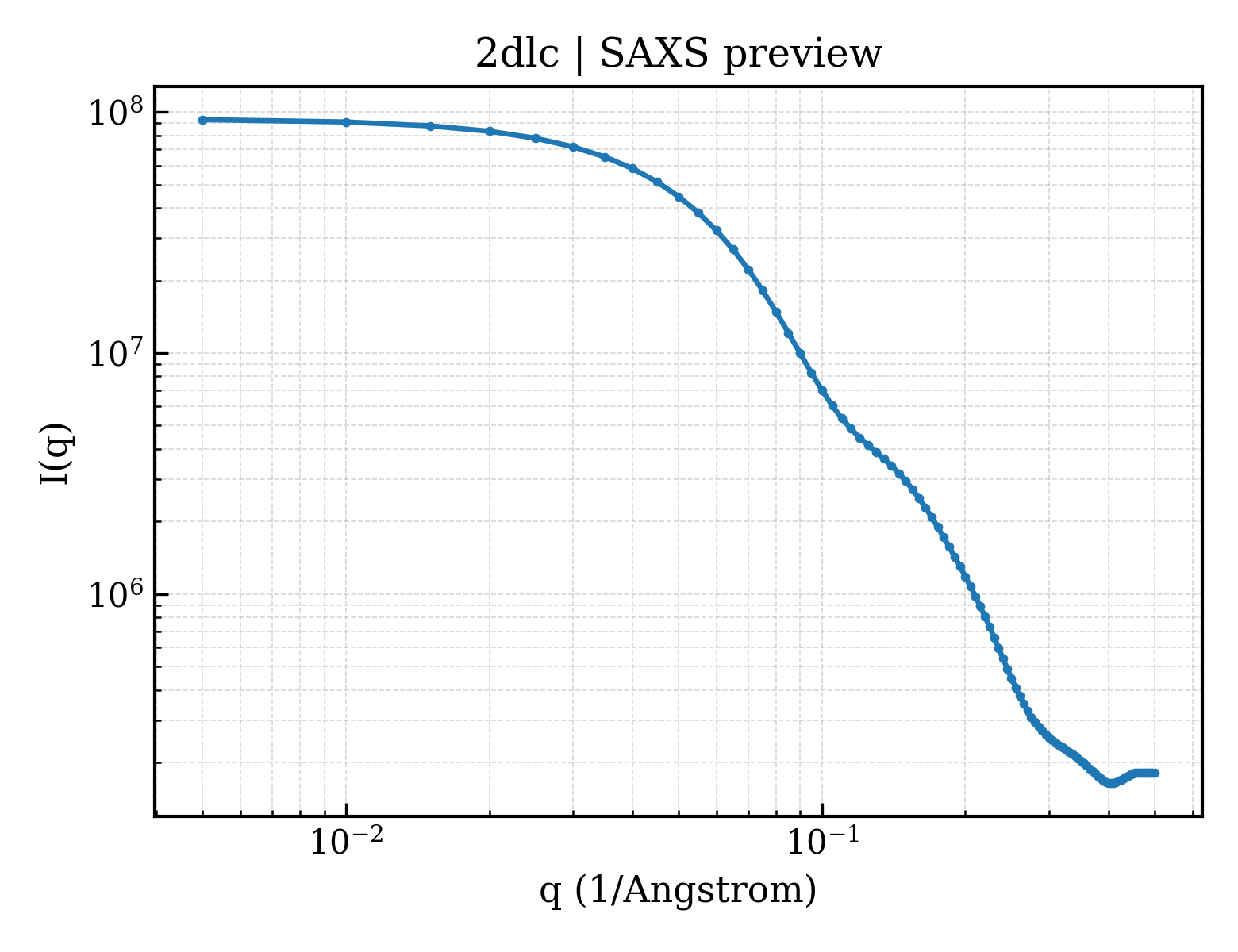

SAXS 散射曲线 SAXS Profile

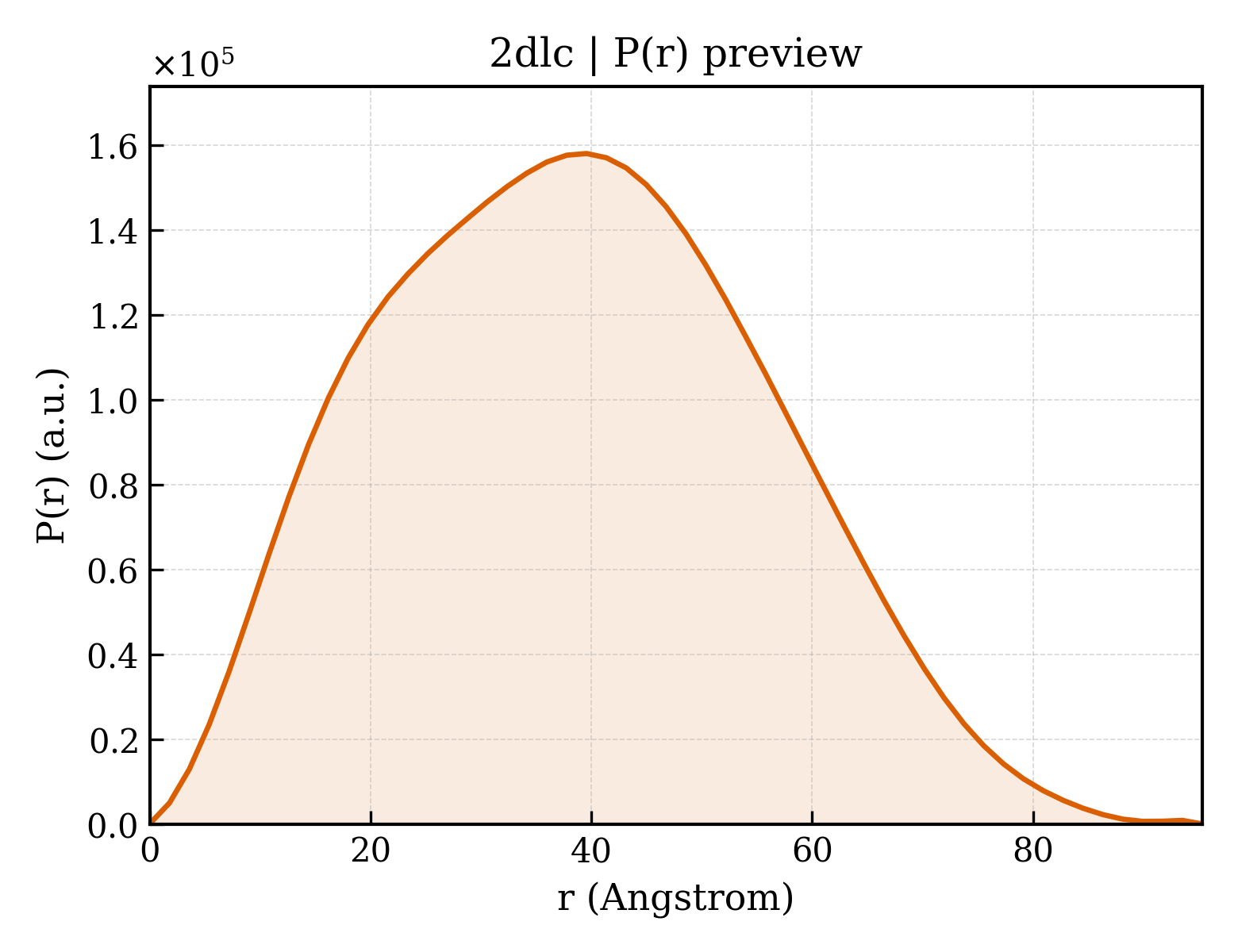

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2dlc
沉积日期 deposition_date	2006-04-18
结构标题 title	Crystal structure of the ternary complex of yeast tyrosyl-tRNA synthetase
关键词 keywords	TyrRS, tRNA, LIGASE-tRNA COMPLEX; LIGASE/tRNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.82 Å
回转半径 Rg (电子) rg_electron	28.58 Å
零角强度 I(0) i0	93703700.00
分子量 molecular_weight	61197.0 kDa
排除体积 excluded_volume	69981 Å³
包络体积 envelope_volume	98553 Å³
水化壳体积 shell_volume	29376 Å³
包络直径 envelope_diameter	101.5 Å
壳层 Rg shell_rg	35.15 Å
包络 Rg envelope_rg	28.04 Å
形状 Rg shape_rg	28.48 Å
总 Rg total_rg	29.35 Å
总原子数 total_atoms	4206
残基数 n_residues	403
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	95.3 Å
Rg (实空间) rg_real	29.77 Å
Rg 误差 (实空间) rg_real_error	0.73 Å
I(0) (实空间) i0_real	9.3700e+07
I(0) 误差 (实空间) i0_real_error	1.4350e+06
Rg (倒空间) rg_reciprocal	29.80 Å
I(0) (倒空间) i0_reciprocal	93710000.0000
解质量估计 total_estimate	0.9094
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.6 Å
偏度 Skewness skewness	0.183
峰度 Kurtosis kurtosis	-0.571
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4930000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.954; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.969

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	T-RNA (76-MER)
分子量 formula_weight	24717.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	Y
原子数 atom_count	4263

CUCUCGGUAGCCAAGUUGGGAAGGCGCAAGACUGUAAAUCUUGAGGUCGGGCGUUCGACUCGCCCCCGGGAGACCA

Entity 2 polymer

描述 description	Tyrosyl-tRNA synthetase, cytoplasmic
分子量 formula_weight	44076.9 kDa
EC 编号 ec_number	6.1.1.1
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MSSAATVDPNEAFGLITKNLQEVLNPQIIKDVLEVQKRHLKLYWGTAPTGRPHCGYFVPMTKLADFLKAGCEVTVLLADLHAFLDNMKAPLEVVNYRAKYYELTIKAILRSINVPIEKLKFVVGSSYQLTPDYTMDIFRLSNIVSQNDAKRAGADVVKQVANPLLSGLIYPLMQALDEQFLDVDCQFGGVDQRKIFVLAEENLPSLGYKKRAHLMNPMVPGLAQGGKMSASDPNSKIDLLEEPKQVKKKINSAFCSPGNVEENGLLSFVQYVIAPIQELKFGTNHFEFFIDRPEKFGGPITYKSFEEMKLAFKEEKLSPPDLKIGVADAINELLEPIRQEFANNKEFQEASEKGYPVATPQKSKKAKKPKNKGTKYPGATKTNEIATKLEETKL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	O-(ADENOSINE-5'-O-YL)-N-(L-TYROSYL)PHOSPHORAMIDATE
分子量 formula_weight	509.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	57

▼

6. 折叠分类 (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

结构域编号 domain_id	d2dlcx_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
超家族 Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
家族 Family family	c.26.1.0 — automated matches

CATH v4.4 (2 domains)

结构域编号 domain_id	2dlcX01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	2dlcX02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	240 — Tyrosyl-Transfer RNA Synthetase
同源超家族 H-superfamily homologous superfamily	10 — Tyrosyl-Transfer RNA Synthetase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	63.854 Å
晶胞边长 b length_b	63.854 Å
晶胞边长 c length_c	330.334 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.2471
R_work r_work	0.2449
R_free r_free	0.2889

fit	/app/data/saxs_computation/dl/2dlc/2dlc.fit
pddf	/app/data/pr_computation/dl/2dlc/2dlc.pr.out
profile	/app/data/saxs_computation/dl/2dlc/2dlc.dat
