SAXSdb — 2drj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alpha-2,3/8-sialyltransferase

Campylobacter jejuni

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	;CYTIDINE-5'-MONOPHOSPHATE-3-FLUORO-N-ACETYL-NEURAMINIC ACID ; × 4 ISOPROPYL ALCOHOL × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9LAK3_CAMJE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–262； UniProt 1–259

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2drj
Deposition date deposition_date	2006-06-09
Structure title title	Xray structure of alpha-2,3/8-sialyltransferase CstII F91Y mutant
Keywords keywords	mixed alpha/beta, transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2drj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2drj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

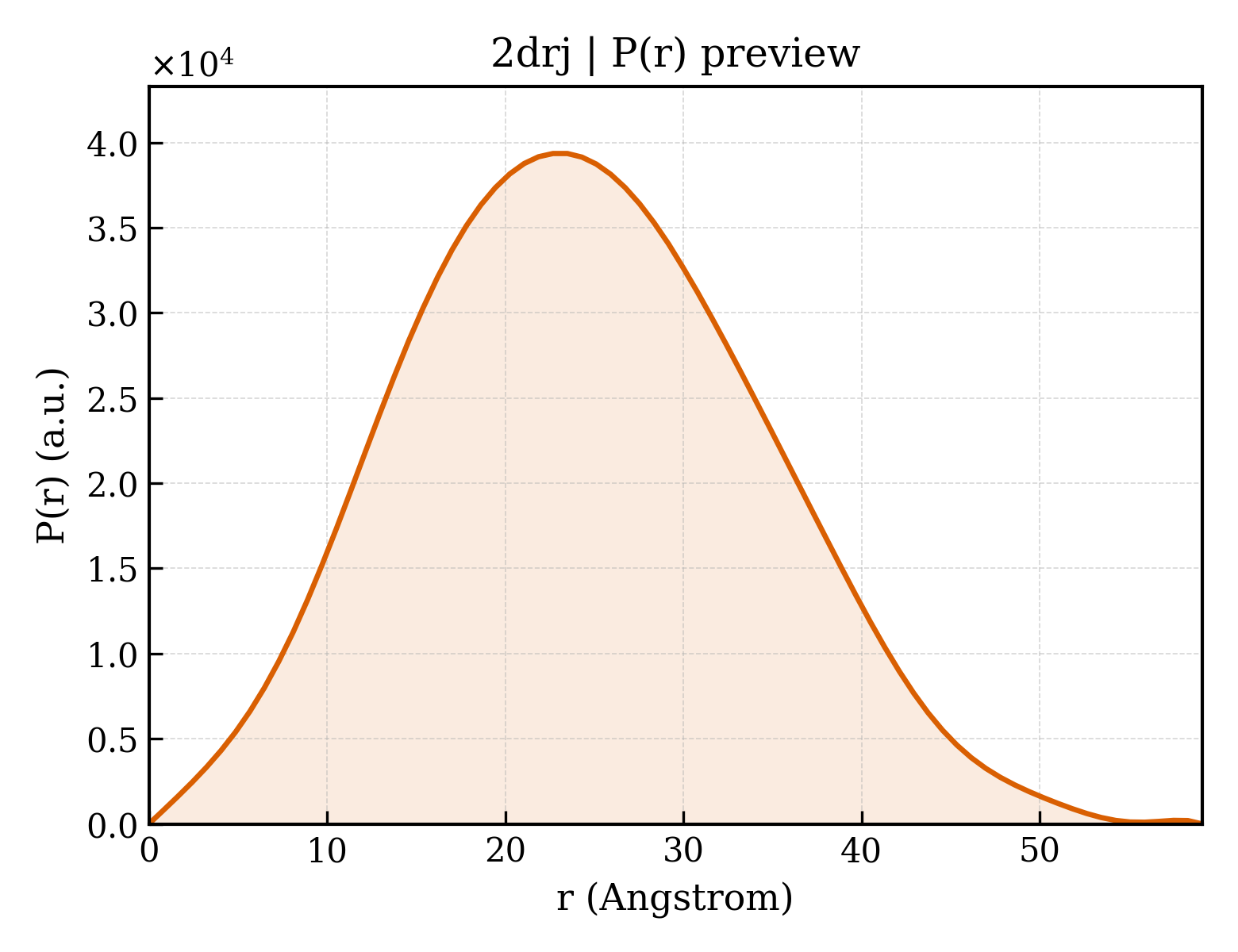

2drj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.74 Å
Rg (electron density)	34.77 Å
Total Rg	35.52 Å
Atom count	7996
Residues	932
Excluded volume	143710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2drj__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Alpha-2,3/8-sialyltransferase
Molecular weight formula_weight	30815.9 kDa
EC 编号 ec_number	2.4.99.-
Mutation mutation	F91Y
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2091

GSHMKKVIIAGNGPSLKEIDYSRLPNDFDVFRCNQFYFEDKYYLGKKCKAVFYNPSLFFEQYYTLKHLIQNQEYETELIMCSNYNQAHLENENYVKTFYDYFPDAHLGYDFFKQLKDFNAYFKFHEIYFNQRITSGVYMCAVAIALGYKEIYLSGIDFYQNGSSYAFDTKQKNLLKLAPNFKNDNSHYIGHSKNTDIKALEFLEKTYKIKLYCLCPNSLLANFIGLAPNLNSNFIIQEKNNYTKDILIPSSEAYGKFSKNIN

Source Source

Source organism organism	Campylobacter jejuni
NCBI taxonomy ID ncbi_taxonomy_id	197
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	;CYTIDINE-5'-MONOPHOSPHATE-3-FLUORO-N-ACETYL-NEURAMINIC ACID ;
Molecular weight formula_weight	632.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	92

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2drja1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.130 — Alpha-2,3/8-sialyltransferase CstII
Superfamily Superfamily superfamily	c.130.1 — Alpha-2,3/8-sialyltransferase CstII
Family Family family	c.130.1.1 — Alpha-2,3/8-sialyltransferase CstII

Domain ID domain_id	d2drja2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2drjA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1480 — sialyltransferase cstii, chain A
Homologous superfamily homologous superfamily	10 — Alpha-2,3-sialyltransferase

▶

Unit-cell length a length_a	116.653 Å
Unit-cell length b length_b	116.653 Å
Unit-cell length c length_c	44.086 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 4
Space-group number int_tables_number	79
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	23.810 Å
R factor r_factor	0.1970
R_work r_work	0.1940
R_free r_free	0.2610

Xray structure of alpha-2,3/8-sialyltransferase CstII F91Y mutant
