SAXSdb — 2dsj

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2dsj
沉积日期 deposition_date	2006-06-30
结构标题 title	Crystal structure of project ID TT0128 from Thermus thermophilus HB8
关键词 keywords	;pyrimidine-nucleoside phosphorylase, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, TRANSFERASE ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.52 Å
回转半径 Rg (电子) rg_electron	36.35 Å
零角强度 I(0) i0	125756000.00
分子量 molecular_weight	90804.0 kDa
排除体积 excluded_volume	114220 Å³
包络体积 envelope_volume	148360 Å³
水化壳体积 shell_volume	36433 Å³
包络直径 envelope_diameter	115.7 Å
壳层 Rg shell_rg	39.98 Å
包络 Rg envelope_rg	35.78 Å
形状 Rg shape_rg	36.37 Å
总 Rg total_rg	36.50 Å
总原子数 total_atoms	6386
残基数 n_residues	846
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	109.2 Å
Rg (实空间) rg_real	36.81 Å
Rg 误差 (实空间) rg_real_error	0.85 Å
I(0) (实空间) i0_real	1.2580e+08
I(0) 误差 (实空间) i0_real_error	1.8380e+06
Rg (倒空间) rg_reciprocal	36.64 Å
I(0) (倒空间) i0_reciprocal	125700000.0000
解质量估计 total_estimate	0.7987
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	33.0 Å
偏度 Skewness skewness	0.419
峰度 Kurtosis kurtosis	-0.750
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17410000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.861; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.799; Smooth: 0.004

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Pyrimidine-nucleoside (Thymidine) phosphorylase
分子量 formula_weight	45437.4 kDa
EC 编号 ec_number	2.4.2.2
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7225

MNPVAFIREKREGKKHRREDLEAFLLGYLRDEVPDYQVSAWLMAAFLRGLDPEETLWLTETMARSGKVLDLSGLPHPVDKHSSGGVGDKVSLVVGPILAASGCTFAKMSGRGLAHTGGTIDKLESVPGWRGEMTEAEFLERARRVGLVIAAQSPDLAPLDGKLYALRDVTATVESVPLIASSIMSKKLAAGARSIVLDVKVGRGAFMKTLEEARLLAKTMVAIGQGAGRRVRALLTSMEAPLGRAVGNAIEVREAIEALKGEGPGDLLEVALALAEEALRLEGLDPALARKALEGGAALEKFRAFLEAQGGDPRAVEDFSLLPLAEEHPLRAEREGVVREVDAYKVGLAVLALGGGRKRKGEPIDHGVGVYLLKKPGDRVERGEALALVYHRRRGLEEALGHLREAYALGEEAHPAPLVLEAI

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	300852
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	830

▼

6. 折叠分类 (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

结构域编号 domain_id	2dsjA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

结构域编号 domain_id	2dsjA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

结构域编号 domain_id	2dsjA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Pyrimidine nucleoside phosphorylase-like, C-terminal domain

结构域编号 domain_id	2dsjB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	970 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — Transferase, Pyrimidine Nucleoside Phosphorylase; Chain C

结构域编号 domain_id	2dsjB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1030 — Pyrimidine Nucleoside Phosphorylase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Nucleoside phosphorylase/phosphoribosyltransferase catalytic domain

结构域编号 domain_id	2dsjB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Pyrimidine nucleoside phosphorylase-like, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	58.828 Å
晶胞边长 b length_b	76.234 Å
晶胞边长 c length_c	103.862 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.26 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	35.780 Å
R 因子 r_factor	0.1980
R_work r_work	0.1980
R_free r_free	0.2220

fit	/app/data/saxs_computation/ds/2dsj/2dsj.fit
pddf	/app/data/pr_computation/ds/2dsj/2dsj.pr.out
profile	/app/data/saxs_computation/ds/2dsj/2dsj.dat

Crystal structure of project ID TT0128 from Thermus thermophilus HB8

SAXS 散射曲线 SAXS Profile

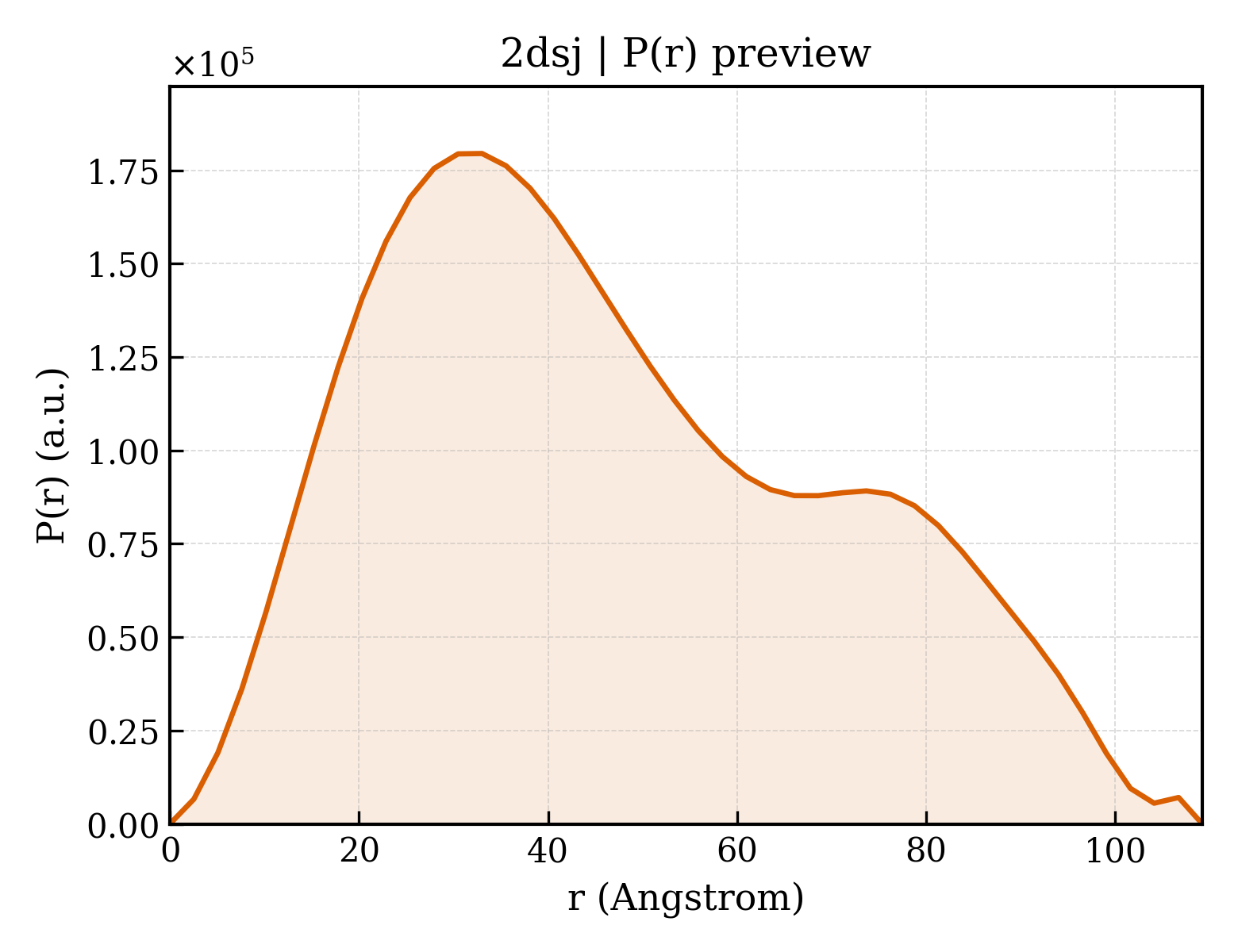

P(r) 距离分布 P(r) Distribution
