Pyrococcus horikoshii
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | water × 2 | Consistent with protein count |
| UniProt name | O59580_PYRHO |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–186； UniProt 1–186 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2dvp |
| Deposition date deposition_date | 2006-07-31 |
| Structure title title | Structure of NTPase from Pyroccous horikoshii |
| Keywords keywords | ;NTPase, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, HYDROLASE ;; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

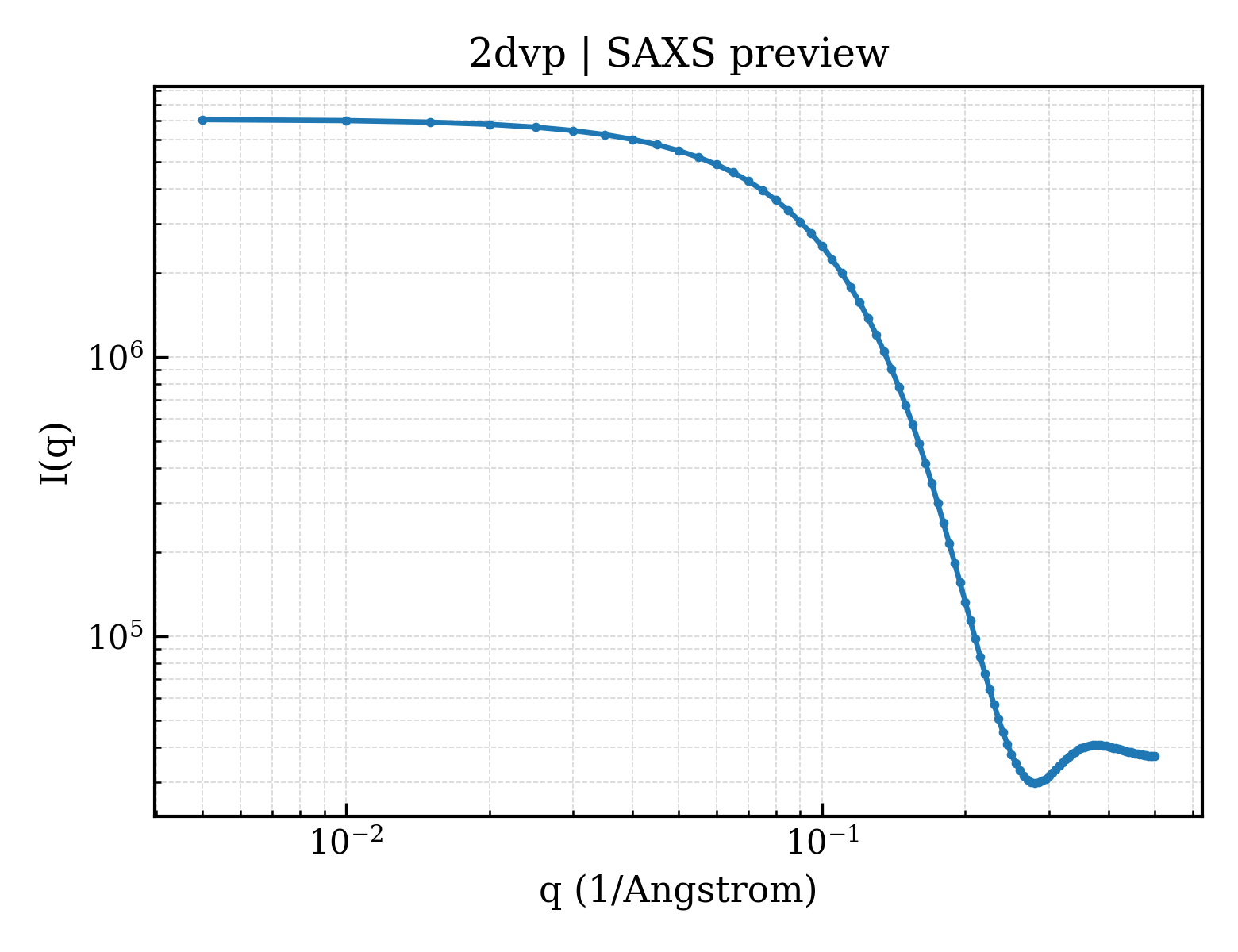

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 22.34 Å |
| Rg (electron density) | 21.46 Å |
| Total Rg | 22.45 Å |
| Atom count | 2960 |
| Residues | 368 |
| Excluded volume | 53397 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d2dvpa_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.51 — Anticodon-binding domain-like |
| Superfamily Superfamily superfamily | c.51.4 — ITPase-like |
| Family Family family | c.51.4.1 — ITPase (Ham1) |
| Domain ID domain_id | 2dvpA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 950 — Maf protein |
| Homologous superfamily homologous superfamily | 10 — |
