1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2dw0
沉积日期 deposition_date	2006-08-02
结构标题 title	Crystal structure of VAP2 from Crotalus atrox venom (Form 2-1 crystal)
关键词 keywords	apoptotic toxin, SVMP, metalloproteinase, APOPTOSIS, TOXIN; APOPTOSIS, TOXIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.75 Å
回转半径 Rg (电子) rg_electron	30.98 Å
零角强度 I(0) i0	165623000.00
分子量 molecular_weight	95525.0 kDa
排除体积 excluded_volume	116540 Å³
包络体积 envelope_volume	159210 Å³
水化壳体积 shell_volume	42461 Å³
包络直径 envelope_diameter	105.9 Å
壳层 Rg shell_rg	38.54 Å
包络 Rg envelope_rg	29.95 Å
形状 Rg shape_rg	30.96 Å
总 Rg total_rg	31.70 Å
总原子数 total_atoms	6625
残基数 n_residues	828
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	100.9 Å
Rg (实空间) rg_real	31.53 Å
Rg 误差 (实空间) rg_real_error	0.92 Å
I(0) (实空间) i0_real	1.6560e+08
I(0) 误差 (实空间) i0_real_error	2.9310e+06
Rg (倒空间) rg_reciprocal	31.63 Å
I(0) (倒空间) i0_reciprocal	165600000.0000
解质量估计 total_estimate	0.8957
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	44.4 Å
偏度 Skewness skewness	0.054
峰度 Kurtosis kurtosis	-0.493
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	10880000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.992

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Catrocollastatin
分子量 formula_weight	46912.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7292

HQKYNPFRFVELVLVVDKAMVTKNNGDLDKIKTRMYEIVNTVNEIYRYMYIHVALVGLEIWSNEDKITVKPEAGYTLNAFGEWRKTDLLTRKKHDNAQLLTAIDLDRVIGLAYVGSMCHPKRSTGIIQDYSEINLVVAVIMAHEMGHNLGINHDSGYCSCGDYACIMRPEISPEPSTFFSNCSYFECWDFIMNHNPECILNEPLGTDIISPPVCGNELLEVGEECDCGTPENCQNECCDAATCKLKSGSQCGHGDCCEQCKFSKSGTECRASMSECDPAEHCTGQSSECPADVFHKNGQPCLDNYGYCYNGNCPIMYHQCYDLFGADVYEAEDSCFERNQKGNYYGYCRKENGNKIPCAPEDVKCGRLYCKDNSPGQNNPCKMFYSNEDEHKGMVLPGTKCADGKVCSNGHCVDVATAY

Entity 2 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	951.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1114.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 6 non-polymer

描述 description	3-(N-HYDROXYCARBOXAMIDO)-2-ISOBUTYLPROPANOYL-TRP-METHYLAMIDE
分子量 formula_weight	388.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	667

▼

6. 折叠分类 (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

结构域编号 domain_id	2dw0A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	390 — Collagenase (Catalytic Domain)
同源超家族 H-superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

结构域编号 domain_id	2dw0B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	390 — Collagenase (Catalytic Domain)
同源超家族 H-superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

▶

7. 引用文献 (5)

▶

晶胞边长 a length_a	56.910 Å
晶胞边长 b length_b	137.950 Å
晶胞边长 c length_c	59.240 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.52 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.150 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	—
R_work r_work	0.1750
R_free r_free	0.2280

fit	/app/data/saxs_computation/dw/2dw0/2dw0.fit
pddf	/app/data/pr_computation/dw/2dw0/2dw0.pr.out
profile	/app/data/saxs_computation/dw/2dw0/2dw0.dat

Crystal structure of VAP2 from Crotalus atrox venom (Form 2-1 crystal)

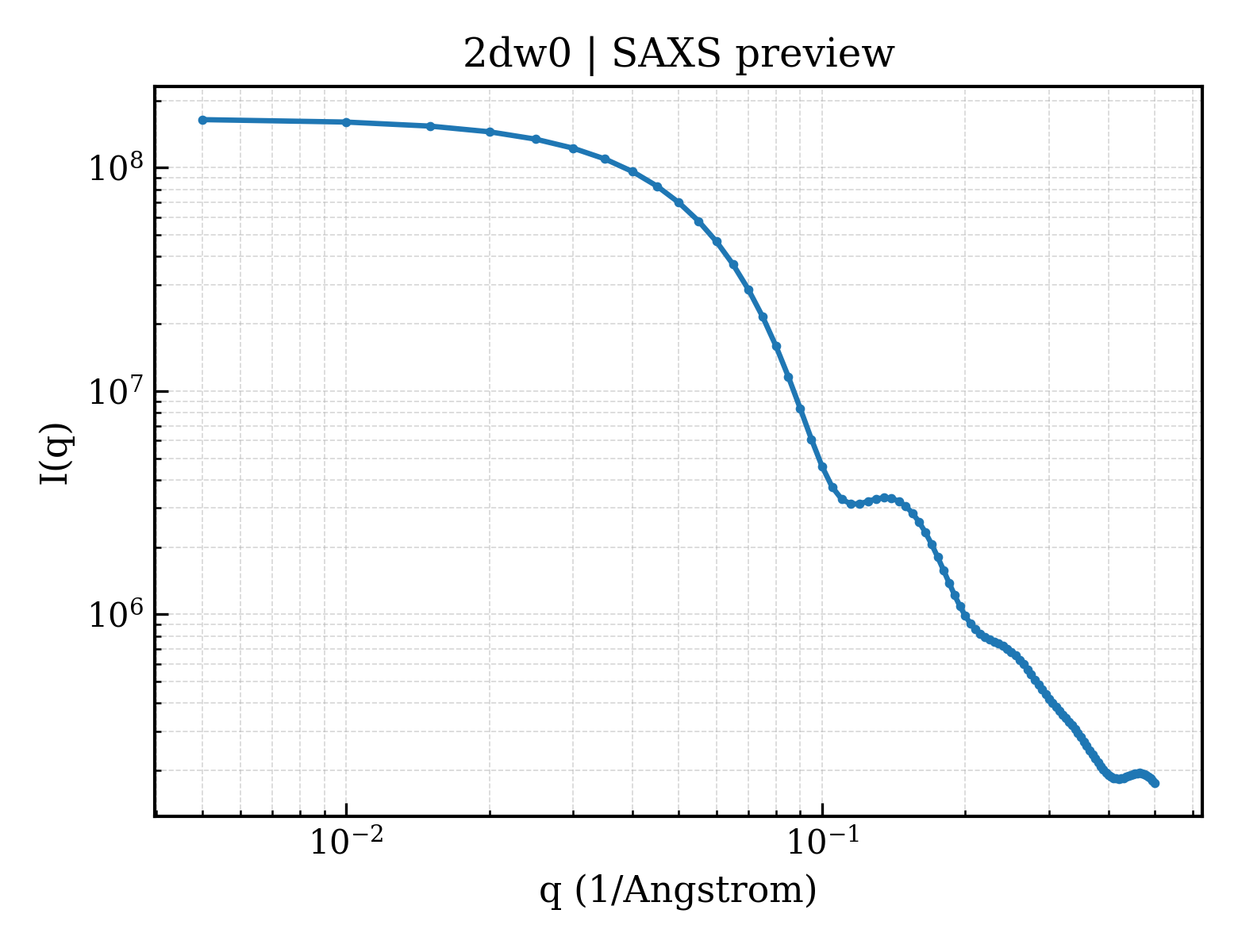

SAXS 散射曲线 SAXS Profile
