SAXSdb — 2dxp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sulfolobus solfataricus protein tyrosine phosphatase

Sulfolobus solfataricus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	A(PTR)R × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q97VZ7_SULSO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–161； UniProt 1–161

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2dxp
Deposition date deposition_date	2006-08-29
Structure title title	Crystal structure of the complex of the archaeal sulfolobus PTP-fold phosphatase with phosphopeptides A-(p)Y-R
Keywords keywords	PTP domain, Hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2dxp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2dxp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

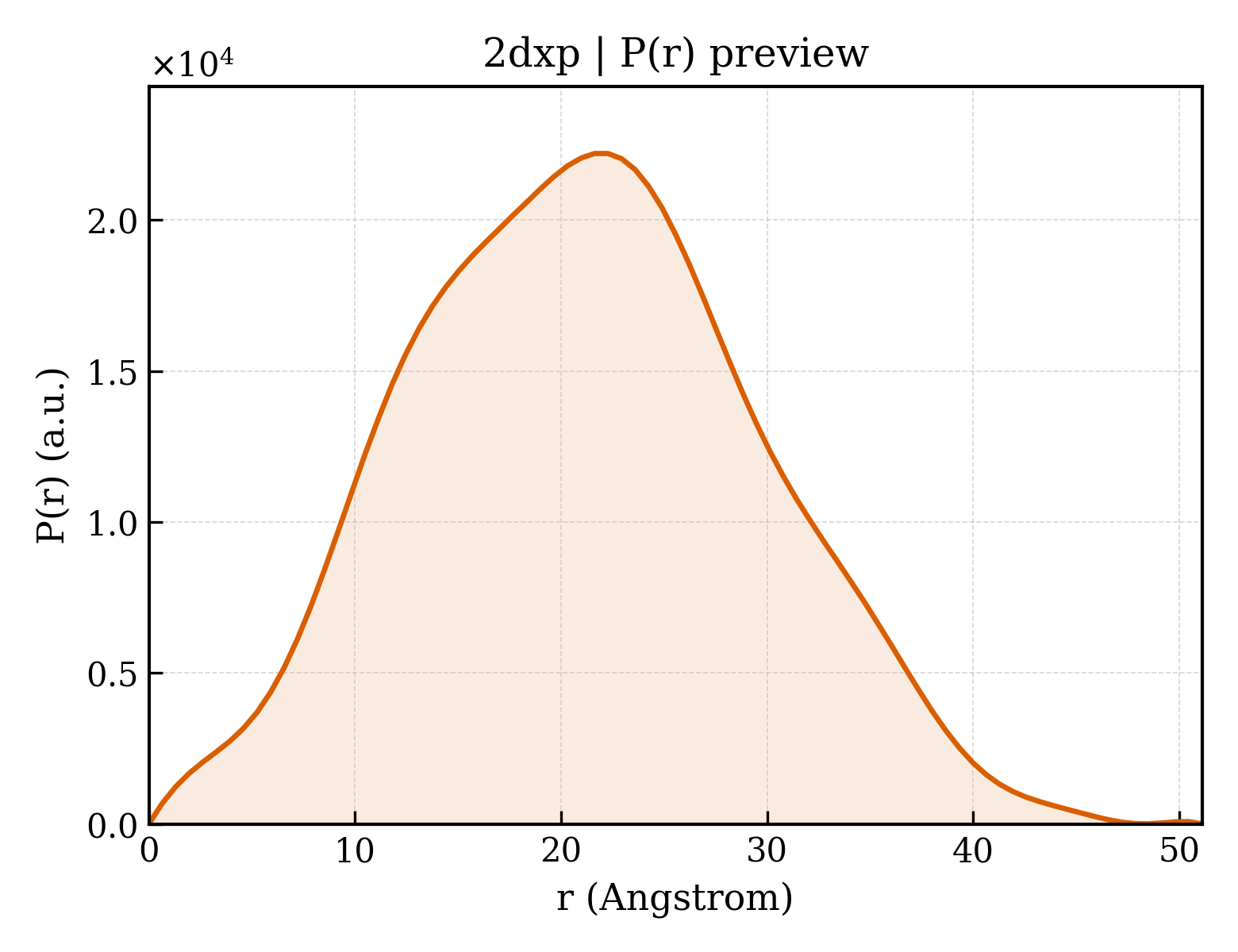

2dxp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.23 Å
Rg (electron density)	14.99 Å
Total Rg	16.15 Å
Atom count	1310
Residues	160
Excluded volume	23529 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2dxp__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Sulfolobus solfataricus protein tyrosine phosphatase
Molecular weight formula_weight	18417.1 kDa
EC 编号 ec_number	3.1.3.48
Mutation mutation	C96S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1398

MYWVRRKTIGGSGLPYTENEILEWRKEGVKRVLVLPEDWEIEESWGDKDYYLSILKKNGLQPLHIPIPDGGVPSDSQFLTIMKWLLSEKEGNLVHSVGGIGRTGTILASYLILTEGLEVESAIDEVRLVRPGAVQTYEQEMFLLRVEGMRKSWLKNIYSNS

Source Source

Source organism organism	Sulfolobus solfataricus
NCBI taxonomy ID ncbi_taxonomy_id	2287
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	A(PTR)R
Molecular weight formula_weight	489.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AYR

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	88

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2dxpA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	190 — Protein-Tyrosine Phosphatase; Chain A
Homologous superfamily homologous superfamily	10 — Protein tyrosine phosphatase superfamily

▶

Unit-cell length a length_a	81.539 Å
Unit-cell length b length_b	58.232 Å
Unit-cell length c length_c	36.475 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2110
R_free r_free	0.2520
