SAXSdb — 2e4q

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Biphenyl dioxygenase ferredoxin subunit

Pseudomonas sp.

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–109	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；2.8M ammonium sulfate, 0.1M imidazole, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.247
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–109	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；2.8M ammonium sulfate, 0.1M imidazole, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2E4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2E4P Crystal structure of BphA3 (oxidized form) Deposited 2006-12-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–109（109 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；2.55M ammonium sulfate, 0.1M Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.254
2E4P Crystal structure of BphA3 (oxidized form) Deposited 2006-12-15	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–109（109 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；2.55M ammonium sulfate, 0.1M Tris-HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.254
2YVJ Crystal structure of the ferredoxin-ferredoxin reductase (BPHA3-BPHA4)complex Deposited 2007-04-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–109（109 aa）	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 2 NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M MES, 30%(W/V) PEG4000, pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.262

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BPHA3_PSES1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–109； UniProt 1–109 Author chain C； PDBConstruct 1–109； UniProt 1–109

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2e4q
Deposition date deposition_date	2006-12-15
Structure title title	Crystal structure of BphA3 (reduced form)
Keywords keywords	Rieske type [2Fe-2S]cluster, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.98 Å
Radius of gyration Rg (electron density) rg_electron	18.07 Å
Forward intensity I(0) i0	10962100.00
Molecular weight molecular_weight	23814.0 kDa
Excluded volume excluded_volume	29349 Å³
Envelope volume envelope_volume	34298 Å³
Hydration-shell volume shell_volume	16306 Å³
Envelope diameter envelope_diameter	59.7 Å
Shell Rg shell_rg	23.60 Å
Envelope Rg envelope_rg	18.18 Å
Shape Rg shape_rg	18.05 Å
Total Rg total_rg	18.94 Å
Total atoms total_atoms	1656
Residues n_residues	215
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	62.4 Å
Rg (real space) rg_real	18.94 Å
Rg uncertainty (real space) rg_real_error	0.34 Å
I(0) (real space) i0_real	1.0960e+07
I(0) uncertainty (real space) i0_real_error	1.4280e+05
Rg (reciprocal space) rg_reciprocal	18.95 Å
I(0) (reciprocal space) i0_reciprocal	10960000.0000
Solution quality estimate total_estimate	0.6703
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.4 Å
Skewness Skewness skewness	0.262
Kurtosis Kurtosis kurtosis	-0.485
Angular range angular_range	— – 0.4200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2950000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.868; Stabil: 1.000; Sysdev: 0.374; Positv: 1.000; Valcen: 0.984; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Biphenyl dioxygenase ferredoxin subunit
Molecular weight formula_weight	11926.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	1842

MTFTKACSVDEVPPGEALQVSHDAQKVAIFNVDGEFFATQDQCTHGEWSLSEGGYLDGDVVECSLHMGKFCVRTGKVKSPPPCEPLKVYPIRIEGRDVLVDFSRAALHA

来源 Source

来源生物 organism	Pseudomonas sp.
NCBI Class编号 ncbi_taxonomy_id	306
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	136

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2e4qa_
Class class	b — All beta proteins
Fold Fold fold	b.33 — ISP domain
Superfamily Superfamily superfamily	b.33.1 — ISP domain
Family Family family	b.33.1.1 — Rieske iron-sulfur protein (ISP)

Domain ID domain_id	d2e4qc_
Class class	b — All beta proteins
Fold Fold fold	b.33 — ISP domain
Superfamily Superfamily superfamily	b.33.1 — ISP domain
Family Family family	b.33.1.1 — Rieske iron-sulfur protein (ISP)

CATH v4.4 (2 domains)

Domain ID domain_id	2e4qA00
Class class	2 — Mainly Beta
Architecture architecture	102 — 3-layer Sandwich
Topology topology	10 — Rieske Iron-sulfur Protein
Homologous superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

Domain ID domain_id	2e4qC00
Class class	2 — Mainly Beta
Architecture architecture	102 — 3-layer Sandwich
Topology topology	10 — Rieske Iron-sulfur Protein
Homologous superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	49.710 Å
Unit-cell length b length_b	49.710 Å
Unit-cell length c length_c	172.065 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2097
R_work r_work	0.2078
R_free r_free	0.2470

fit	/app/data/saxs_computation/e4/2e4q/2e4q.fit
pddf	/app/data/pr_computation/e4/2e4q/2e4q.pr.out
profile	/app/data/saxs_computation/e4/2e4q/2e4q.dat

Crystal structure of BphA3 (reduced form)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Biphenyl dioxygenase ferredoxin subunit

State in the Current Structure

Other States of the Same Protein in the Database

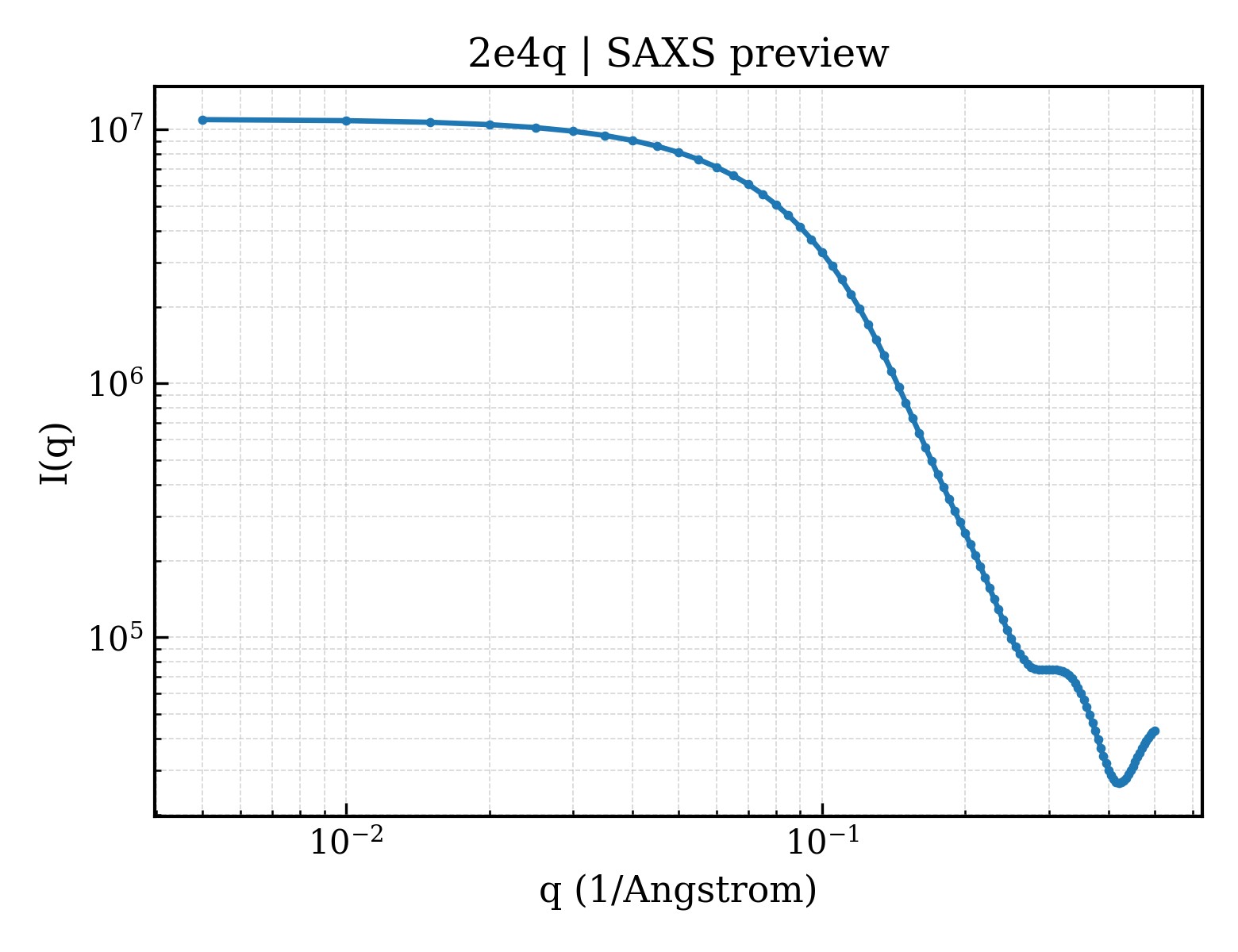

SAXS scattering curve SAXS Profile
