SAXSdb — 2e5v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-aspartate oxidase

Sulfolobus tokodaii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CHLORIDE ION × 1 FLAVIN-ADENINE DINUCLEOTIDE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	CHLORIDE ION × 1 FLAVIN-ADENINE DINUCLEOTIDE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NADB_SULTO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–472； UniProt 1–472 Author chain B； PDBConstruct 1–472； UniProt 1–472

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2e5v
Deposition date deposition_date	2006-12-25
Structure title title	Crystal structure of L-Aspartate Oxidase from hyperthermophilic archaeon Sulfolobus tokodaii
Keywords keywords	L-Aspartate Oxidase, Archaea, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2e5v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

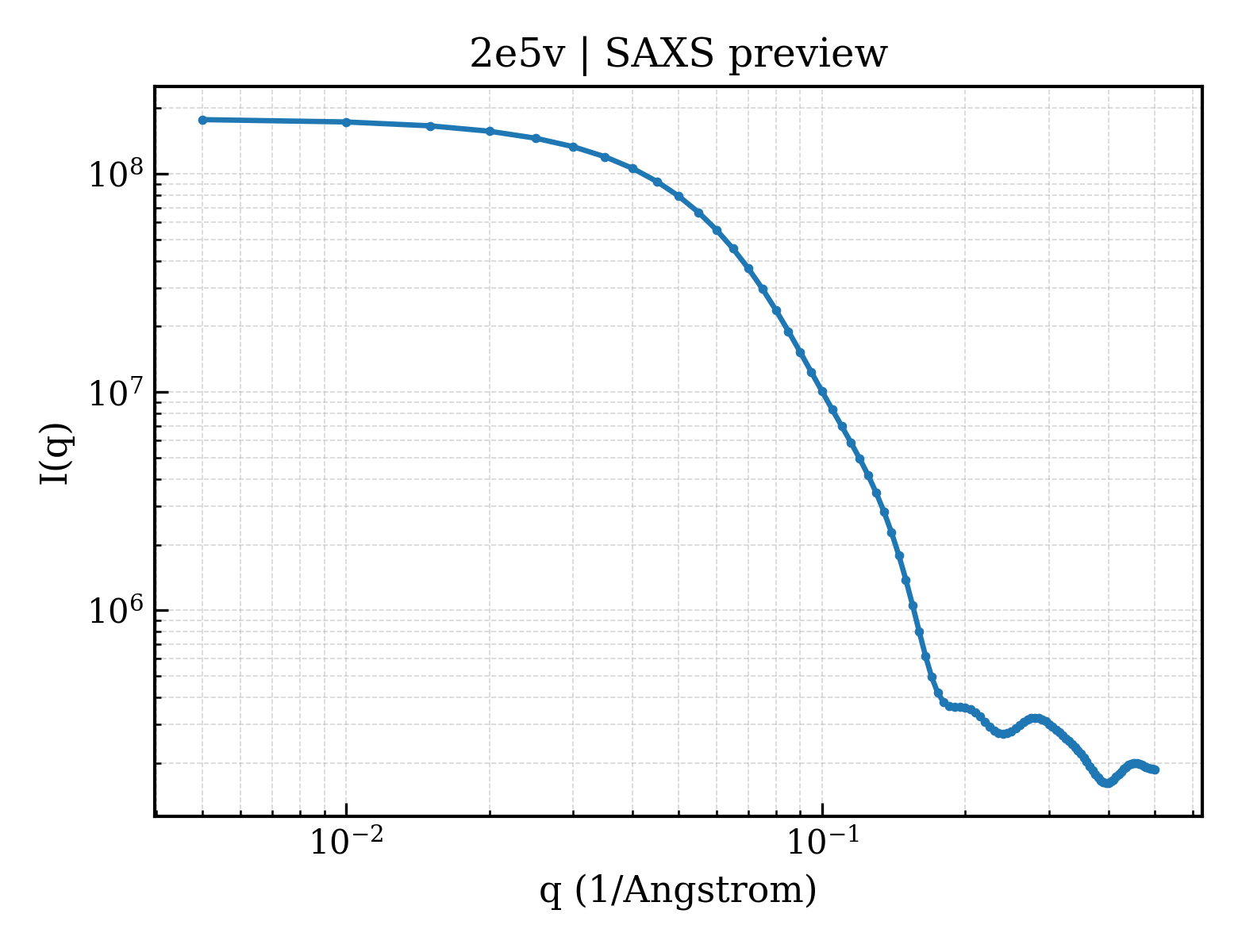

2e5v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

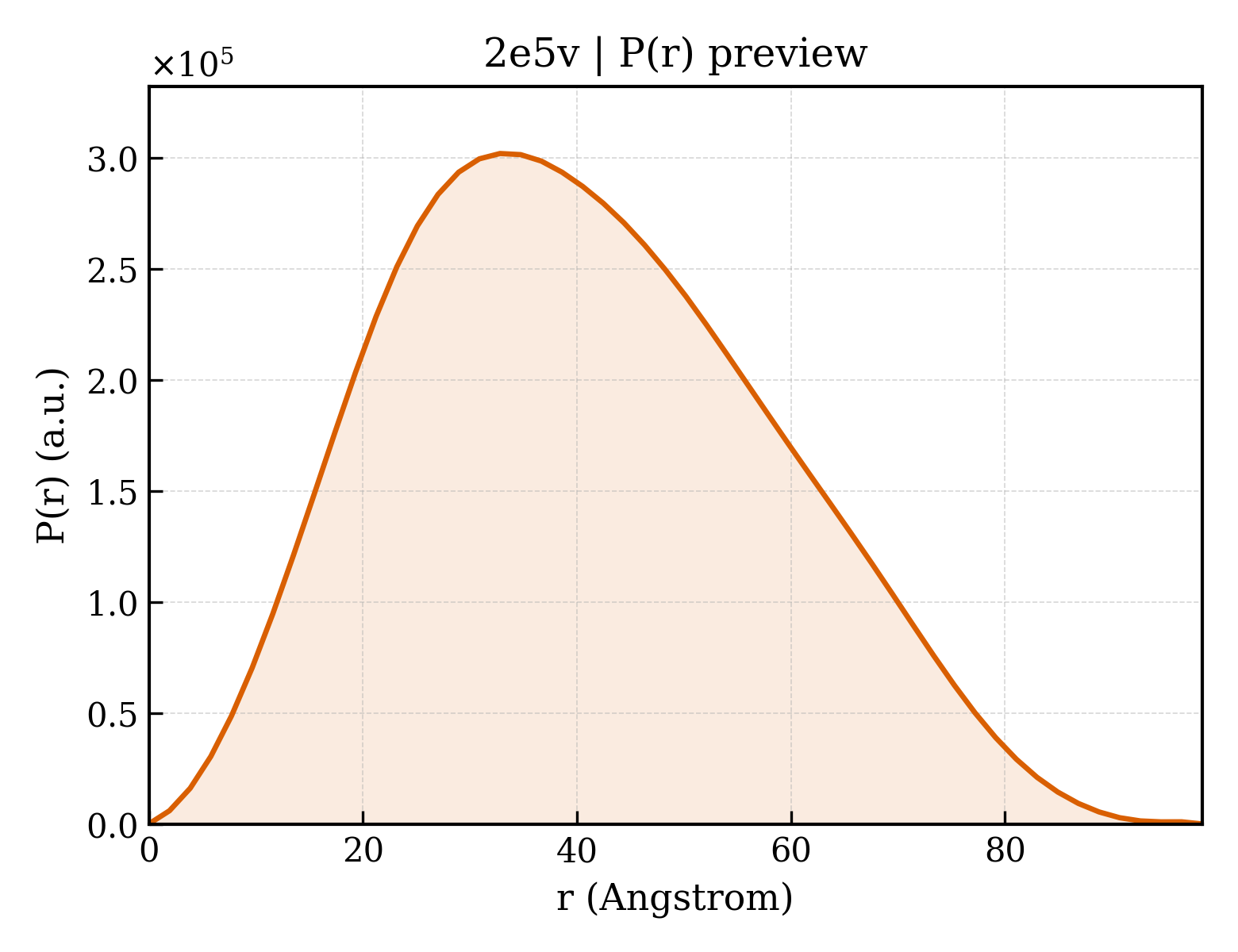

2e5v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.54 Å
Rg (electron density)	21.62 Å
Total Rg	22.54 Å
Atom count	3768
Residues	472
Excluded volume	66919 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2e5v__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2e5v__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	L-aspartate oxidase
Molecular weight formula_weight	52653.6 kDa
EC 编号 ec_number	1.4.3.16
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8289

MIYIIGSGIAGLSAGVALRRAGKKVTLISKRIDGGSTPIAKGGVAASVGSDDSPELHAQDTIRVGDGLCDVKTVNYVTSEAKNVIETFESWGFEFEEDLRLEGGHTKRRVLHRTDETGREIFNFLLKLAREEGIPIIEDRLVEIRVKDGKVTGFVTEKRGLVEDVDKLVLATGGYSYLYEYSSTQSTNIGDGMAIAFKAGTILADMEFVQFHPTVTSLDGEVFLLTETLRGEGAQIINENGERFLFNYDKRGELAPRDILSRAIYIEMLKGHKVFIDLSKIEDFERKFPVVAKYLARHGHNYKVKIPIFPAAHFVDGGIRVNIRGESNIVNLYAIGEVSDSGLHGANRLASNSLLEGLVFGINLPRYVDSSWEGISTDDGIVHSVRISGNKTLSLKEIRRINWENVGIIRNEEKLVKAINTYSSSTQNEAIISYLTALAAEIRKESRGNHFREDYPYKDPNWEKRIYFKLVV

Source Source

Source organism organism	Sulfolobus tokodaii
NCBI taxonomy ID ncbi_taxonomy_id	111955
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	753

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	2e5vA01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	2e5vA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	700 — Flavocytochrome C3; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain

Domain ID domain_id	2e5vA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	100 — Fumarate reductase/succinate dehydrogenase flavoprotein-like, C-terminal domain

Domain ID domain_id	2e5vB01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	2e5vB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	700 — Flavocytochrome C3; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain

Domain ID domain_id	2e5vB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	100 — Fumarate reductase/succinate dehydrogenase flavoprotein-like, C-terminal domain

▶

Unit-cell length a length_a	54.970 Å
Unit-cell length b length_b	103.256 Å
Unit-cell length c length_c	163.817 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.090 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.1940
R_free r_free	0.2090

Crystal structure of L-Aspartate Oxidase from hyperthermophilic archaeon Sulfolobus tokodaii
