2e7t

Crystal structure of basic winged bean lectin in complex with a blood group trisaccharide

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Basic agglutinin

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 6	alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]2-acetamido-2-deoxy-beta-D-glucopyranose × 4 2-acetamido-2-deoxy-alpha-D-galactopyranose-(1-3)-beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose × 2 MANGANESE (II) ION × 2 CALCIUM ION × 2 water × 2	Consistent with protein count
2	Other combination	Homooligomer	Protein 2 其他Polymer 5	alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-alpha-D-galactopyranose-(1-3)-beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose × 1 ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 MANGANESE (II) ION × 2 CALCIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEC1_PSOTE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–237； UniProt 2–238 Author chain B； PDBConstruct 1–237； UniProt 2–238 Author chain C； PDBConstruct 1–237； UniProt 2–238 Author chain D； PDBConstruct 1–237； UniProt 2–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2e7t
Deposition date deposition_date	2007-01-13
Structure title title	Crystal structure of basic winged bean lectin in complex with a blood group trisaccharide
Keywords keywords	LECTIN, SUGAR BINDING PROTEIN, JELLY ROLL; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2e7t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

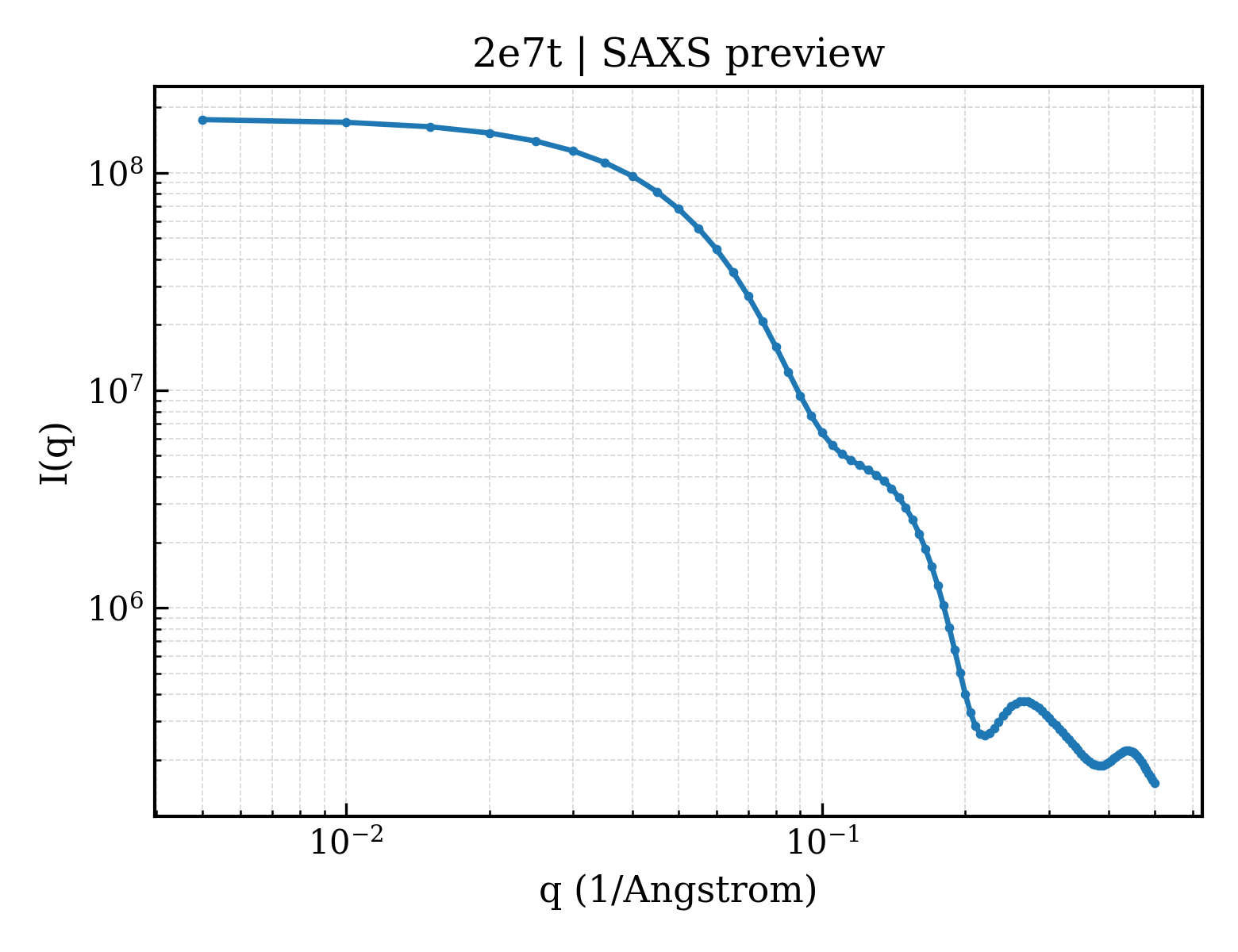

2e7t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2e7t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.53 Å
Rg (electron density)	25.25 Å
Total Rg	26.20 Å
Atom count	3884
Residues	473
Excluded volume	69131 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2e7t__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2e7t__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Basic agglutinin
Molecular weight formula_weight	26014.1 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7945

KTISFNFNQFHQNEEQLKLQRDARISSNSVLELTKVVNGVPTWNSTGRALYAKPVQVWDSTTGNVASFETRFSFSIRQPFPRPHPADGLVFFIAPPNTQTGEGGGYFGIYNPLSPYPFVAVEFDTFRNTWDPQIPHIGIDVNSVISTKTVPFTLDNGGIANVVIKYDASTKILHVVLVFPSLGTIYTIADIVDLKQVLPESVNVGFSAATGDPSGKQRNATETHDILSWSFSASLPG

Entity 2 Entity 2 branched

Description description	alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	man
Copy count entity_count	6

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-alpha-D-galactopyranose-(1-3)-beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	545.5 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 branched

Description description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	732.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	232

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2e7ta_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d2e7tb_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d2e7tc_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d2e7td_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

CATH v4.4 (4 domains)

Domain ID domain_id	2e7tA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2e7tB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2e7tC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2e7tD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

Unit-cell length a length_a	157.729 Å
Unit-cell length b length_b	91.130 Å
Unit-cell length c length_c	73.718 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	29.000 Å
R factor r_factor	0.1920
R_work r_work	0.1920
R_free r_free	0.2440
